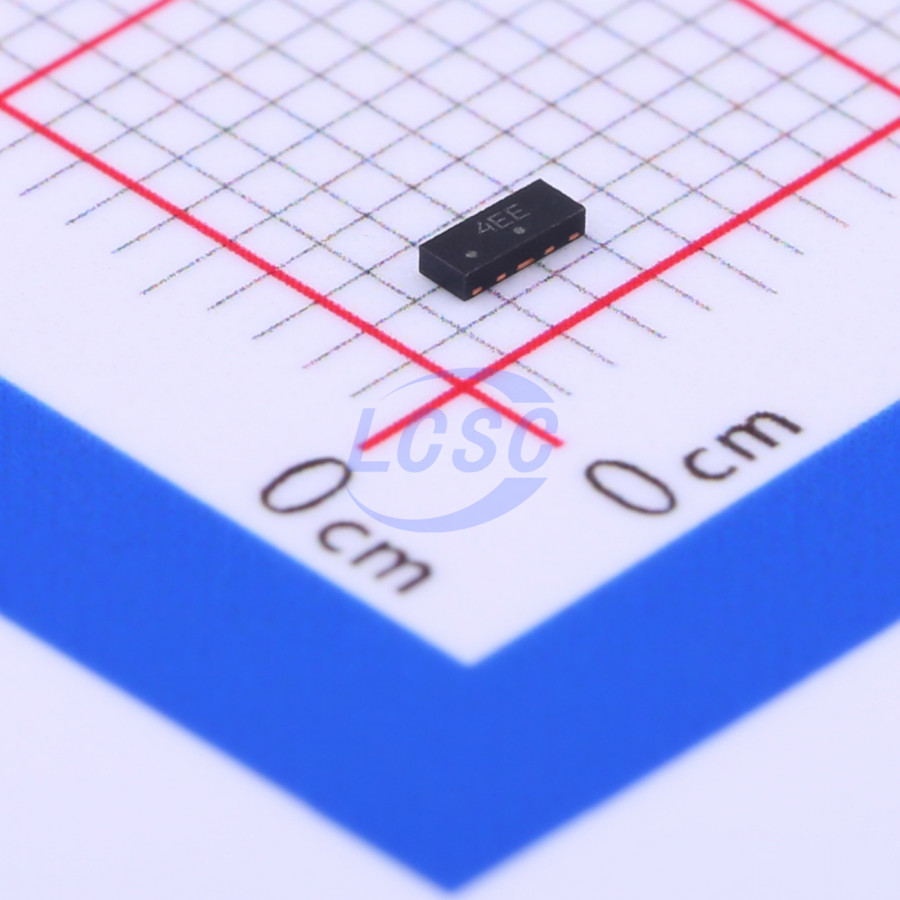

ESD7504MUTAG
13.7VC Clamp ESD DIODE UDFN-10(1x2.5)
ESD DIODE 3.3VWM 13.7VC UDFN-10(1x2.5)
- Manufacturer
- onsemi
- Manufacturer part #
- ESD7504MUTAG
- Store part #
- C233385
- Package / case
- UDFN-10(1x2.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C233385
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.91 | ₹88.91 |
| 10+ | ₹71.77 | ₹717.70 |
| 30+ | ₹63.32 | ₹1,899.60 |
| 100+ | ₹54.64 | ₹5,464.00 |
| 500+ | ₹49.65 | ₹24,825.00 |
| 1,000+ | ₹43.37 | ₹43,370.00 |
1 × ₹88.91
₹88.91
excl. GST
₹104.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD7504MUTAG
₹88.91 for 1 + GST
Specifications
- Clamping Voltage
- 13.7V
- Operating Temperature
- -55℃~+125℃
- Voltage - Breakdown
- 5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
The ESD7504 surge protection is designed to protect high speed data lines from ESD. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines such as USB 3.0.
Applications
- USB 3.0
- eSATA 1.0/2.0/3.0
- HDMI 1.3/1.4
- Display Port
Key features
- Low Capacitance (0.55 pF Max, I/O to GND)
- Protection for the Following IEC Standards: IEC 61000−4−2 (Level 4)
- Low ESD Clamping Voltage
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
