TECH PUBLICDatasheet (PDF)

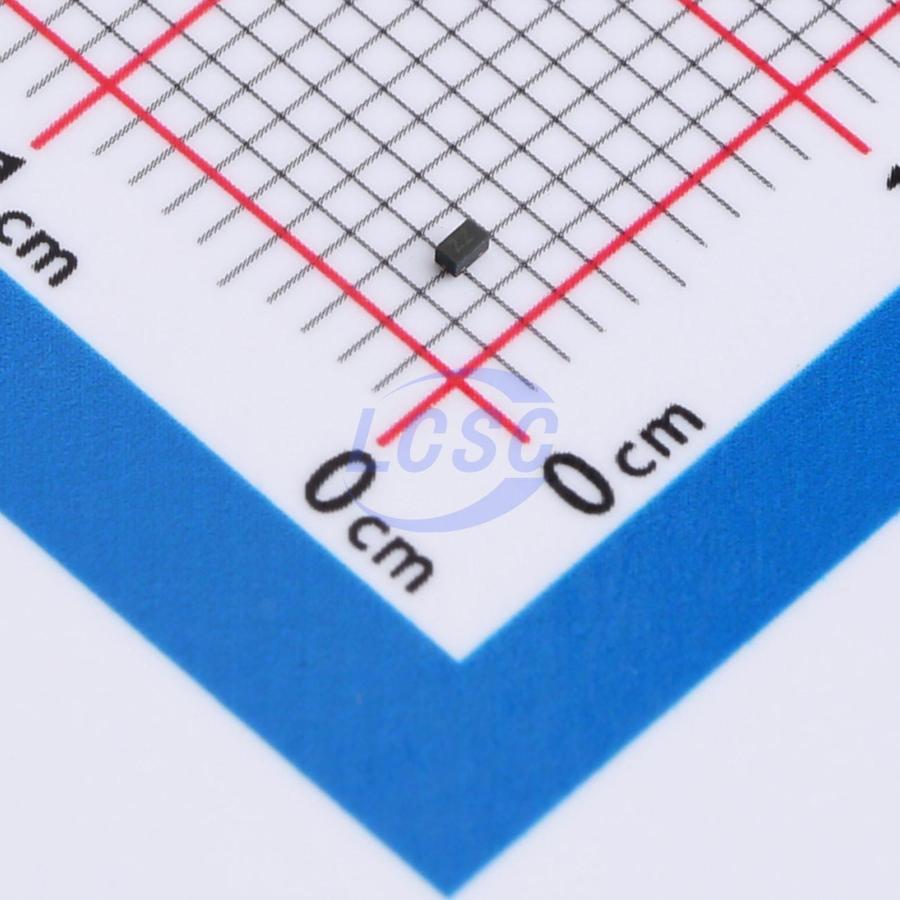

ESD7561N2T5G-TP
nan
DFN1006-2RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESD7561N2T5G-TP
- Store part #
- C41407958
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C41407958
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.63 | ₹58.15 |
| 50+ | ₹9.34 | ₹467.00 |
| 150+ | ₹8.19 | ₹1,228.50 |
| 500+ | ₹7.33 | ₹3,665.00 |
| 3,000+ | ₹6.64 | ₹19,920.00 |
| 6,000+ | ₹6.30 | ₹37,800.00 |
5 × ₹11.63
₹58.15
excl. GST
₹68.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESD7561N2T5G-TP
₹58.15 for 5 + GST
Specifications
- Clamping Voltage
- 27V
- Operating Temperature
- -55℃~+125℃
- Voltage - Breakdown
- 21V
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
Applications
- Cellular Handsets & Accessories
- Digital Visual Interface (DVI)
- Display Port
- MDDI Ports
- USB Ports
Key features
- Ultra small package: 1.0x0.6x0.5mm
- Ultra low capacitance: 0.35pF typical
- Ultralow leakage: nA level
- Low operating voltage: ±15V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- RoHS Compliant
- Lead Finish: NiPdAu
