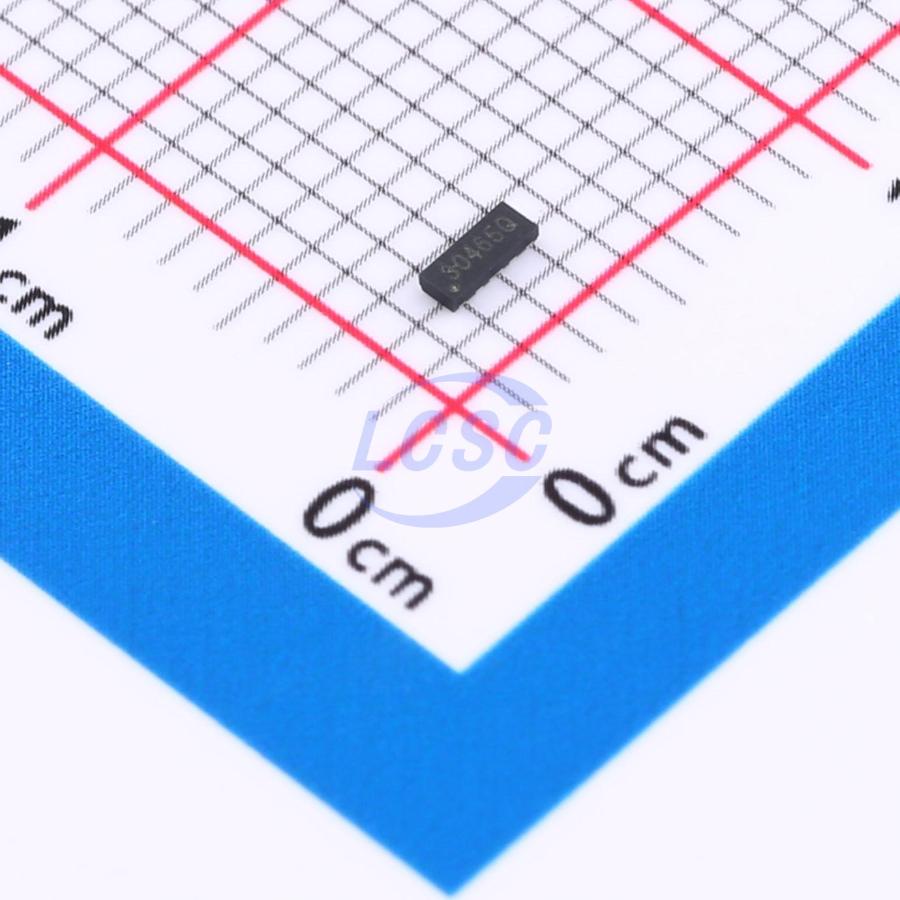

ESD8104MUTAG-P TECH PUBLIC

ESD8104MUTAG-P

5VC 5.2VC 7.5VC Clamp 6.5A@8/20us Ipp ESD DIODE DFN2510-10

DFN2510-10RoHSActive

ESD DIODE 3.3VWM 5VC 5.2VC 7.5VC DFN2510-10

Manufacturer: TECH PUBLIC
Manufacturer part #: ESD8104MUTAG-P
Store part #: C2905631
Package / case: DFN2510-10
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,015 in stock

#C2905631

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹24.58	₹122.90
50+	₹19.61	₹980.50
150+	₹17.48	₹2,622.00
500+	₹14.80	₹7,400.00
3,000+	₹12.07	₹36,210.00
6,000+	₹11.35	₹68,100.00

Quantity (min 5, multiples of 5)

5 × ₹24.58

₹122.90

excl. GST

₹145.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ESD8104MUTAG-P

₹122.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 5V;5.2V;7.5V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 6.5A@8/20us
type: ESD
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.028 g

Overview

Applications

High Definition Multimedia Interface (HDMI)
Digital Visual Interface (DVI)
Unified Display Interface (UDI)
MDDI Ports
PCI Express
Serial ATA

Key features

Ultra low capacitance: 0.1pF typical (/O to I/O)
Ultralow leakage: nA level
Low operating voltage: 3.3V
Low clamping voltage
Up to 4 data lines and one power line protects
Complies with following standards:
IEC 61000 - 4 - 2(ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
IEC 61000 - 4 - 4(EFT) 40A (5/50ns)
IEC 61000 - 4 - 5 (Lightning): 6.5A(8/20μs)
ROHS Compliant
