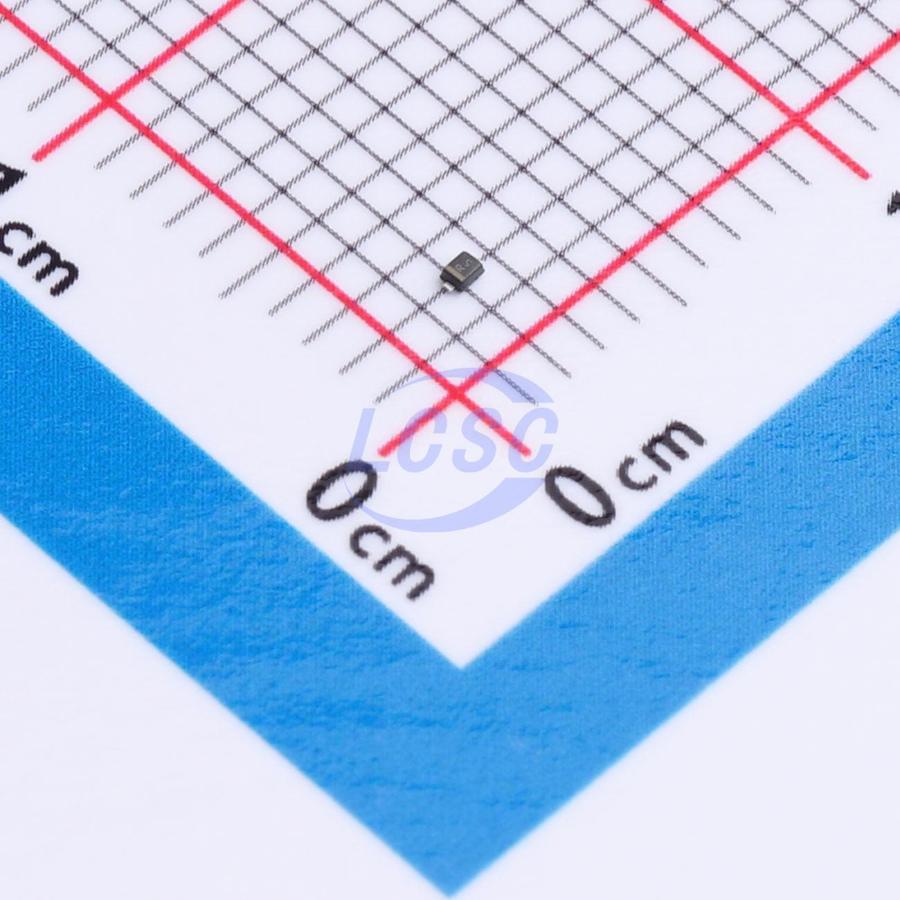

ESD9C3.3ST5G
nan
ESD DIODE 3.3VWM SOD-923
- Manufacturer
- onsemi
- Manufacturer part #
- ESD9C3.3ST5G
- Store part #
- C896237
- Package / case
- SOD-923
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,520 in stock
#C896237
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.82 | ₹74.10 |
| 50+ | ₹11.67 | ₹583.50 |
| 150+ | ₹10.09 | ₹1,513.50 |
| 500+ | ₹8.92 | ₹4,460.00 |
| 2,500+ | ₹7.96 | ₹19,900.00 |
| 5,000+ | ₹7.49 | ₹37,450.00 |
5 × ₹14.82
₹74.10
excl. GST
₹87.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
ESD9C3.3ST5G
₹74.10 for 5 + GST
Specifications
- Number of Channels
- 1
- Voltage - Breakdown
- 5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
The ESD9C3.3ST5G Series is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.
Applications
- cellular phones
- portable devices
- digital cameras
- power supplies
- many other portable applications
Key features
- Low Capacitance 6.2 pF - 13 pF
- Low Clamping Voltage
- Small Body Outline Dimensions: 0.039" x 0.024" (1.0 mm x 0.60 mm)
- Low Body Height: 0.016" (0.40 mm) Max
- Stand - off Voltage: 3.3 V, 5 V
- Low Leakage
- Response Time < 1 ns
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- IEC61000−4−2 Level 4 ESD Protection
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These are Pb - Free Devices
