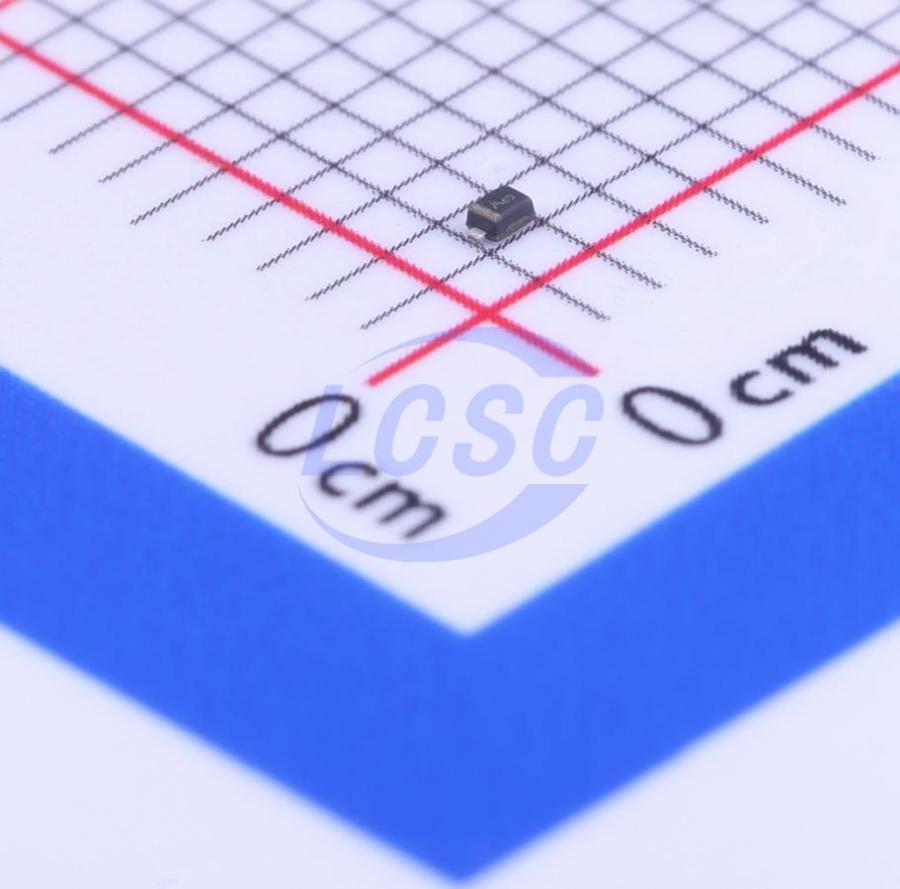

ESD9X3.3ST5G
10.4VC Clamp 9.8A@8/20us Ipp TVS DIODE SOD-923
TVS DIODE 3.3VWM 10.4VC SOD-923
- Manufacturer
- onsemi
- Manufacturer part #
- ESD9X3.3ST5G
- Store part #
- C130456
- Package / case
- SOD-923
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
730 in stock
#C130456
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.79 | ₹57.90 |
| 100+ | ₹4.67 | ₹467.00 |
| 300+ | ₹4.10 | ₹1,230.00 |
| 1,000+ | ₹3.68 | ₹3,680.00 |
| 5,000+ | ₹2.82 | ₹14,100.00 |
| 8,000+ | ₹2.65 | ₹21,200.00 |
10 × ₹5.79
₹57.90
excl. GST
₹68.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
ESD9X3.3ST5G
₹57.90 for 10 + GST
Specifications
- Clamping Voltage
- 10.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 9.8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 102W@8/20us
- Voltage - Breakdown
- 5V
- Number of Channels
- 1
- type
- TVS
- Reverse Leakage Current (Ir)
- 2.5uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.011 g
Overview
The ESD9X Series is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium.
Applications
- cellular phones
- MP3 players
- digital cameras
- portable applications
Key features
- Low Clamping Voltage
- Small Body Outline Dimensions: 0.039" x 0.024" (1.0 mm x 0.60 mm)
- Low Body Height: 0.017" (0.43 mm) Max
- Stand−off Voltage: 3.3 V - 12 V
- Low Leakage
- Response Time is Typically <1 ns
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- IEC61000−4−2 Level 4 ESD Protection
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RLSD92A031V#C434877RUILON · SOD-923 | RUILON | SOD-923 | 1,430 | ₹6.28 · 1,430 in stock | View |
