ESDA05CC

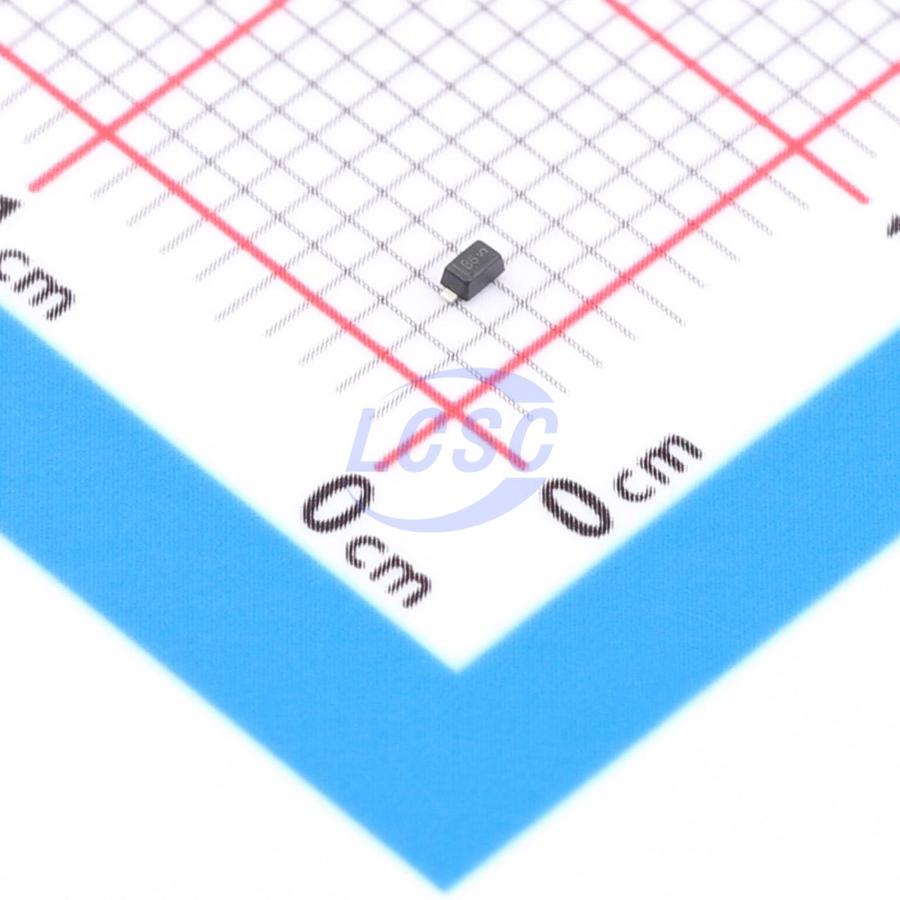

13V 20A@8/20us 260W@8/20us 5.5V Bidirectional 5V SOD-523 TVS Diodes

SOD-523RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: ESDA05CC
Store part #: C52205201
Package / case: SOD-523
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,300 in stock

#C52205201

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
20+	₹4.50	₹90.00
200+	₹3.48	₹696.00
600+	₹2.92	₹1,752.00
3,000+	₹2.58	₹7,740.00
9,000+	₹2.29	₹20,610.00
21,000+	₹2.13	₹44,730.00

Quantity (min 20, multiples of 20)

20 × ₹4.50

₹90.00

excl. GST

₹106.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ESDA05CC

₹90.00 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 13V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 20A@8/20us
Peak Pulse Power Dissipation (Ppp): 260W@8/20us
Number of Channels: 1
Voltage - Breakdown: 5.5V
type: ESD
Polarity: Bidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.026 g

Overview

Applications

Mobile phones & accessories
Personal digital assistants
Laptops & handheld devices
Portable instruments
Peripherals

Key features

Low operating voltage: 5V
Ultra-low leakage current: nA-level
Low clamping voltage
IEC 61000-4-2 (ESD) immunity test air discharge: ±30kV
Contact discharge: ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Surge) 20A (8/20μs)
2-pin leadless package
Lead-free devices
Typical response time < 1 ns
