TECH PUBLICDatasheet (PDF)

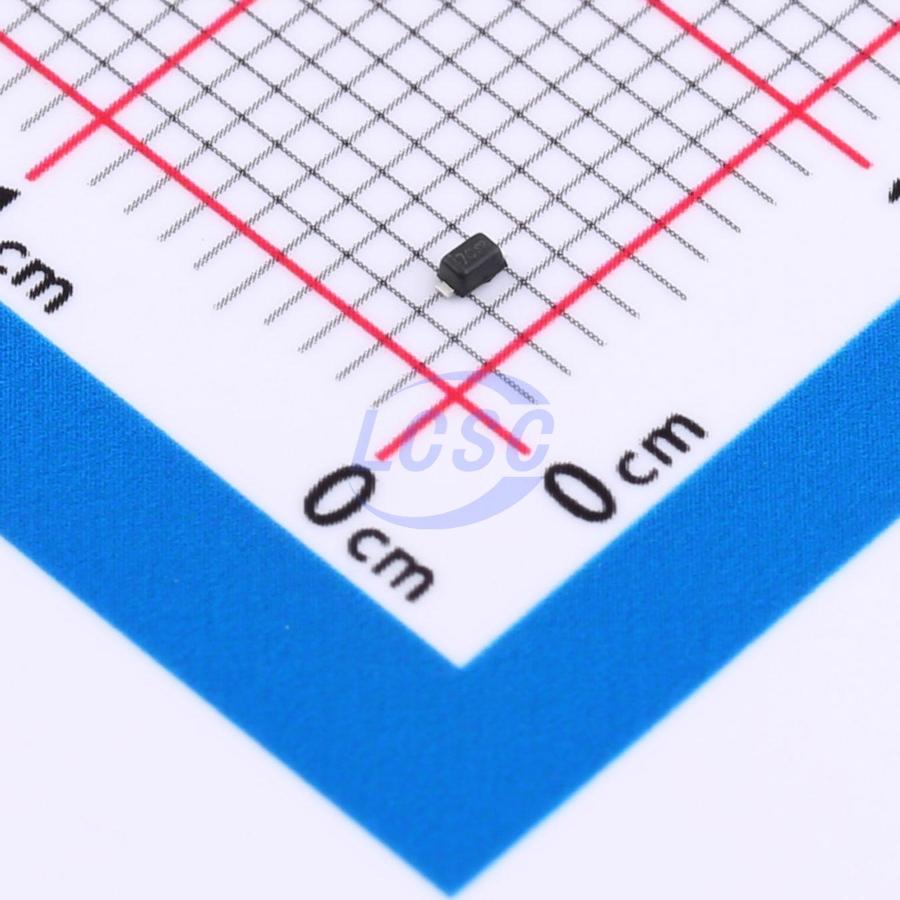

ESDA08CT-TP
15VC Clamp 8A@8/20us Ipp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 7VWM 15VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESDA08CT-TP
- Store part #
- C48639024
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,140 in stock
#C48639024
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.18 | ₹83.60 |
| 200+ | ₹3.24 | ₹648.00 |
| 600+ | ₹2.71 | ₹1,626.00 |
| 3,000+ | ₹2.39 | ₹7,170.00 |
| 9,000+ | ₹2.13 | ₹19,170.00 |
| 21,000+ | ₹1.98 | ₹41,580.00 |
20 × ₹4.18
₹83.60
excl. GST
₹98.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDA08CT-TP
₹83.60 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 120W@8/20us
- Voltage - Breakdown
- 8V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.024 g
Overview
Applications
- Mobile phones & accessories
- Personal digital assistants
- Laptops & handheld devices
- Portable instruments
- Peripheral devices
Key features
- Low operating voltage: 7V
- Ultra-low capacitance: 20pF
- Ultra-low leakage current: nA level
- Low clamping voltage
- Compliant with IEC 61000-4-2 (ESD) immunity standard: air discharge ±30kV, contact discharge ±30kV
- Compliant with IEC 61000-4-4 (EFT) standard: 40A (5/50ns)
- 2-pin leadless package
- Typical response time <1 ns
