STDatasheet (PDF)

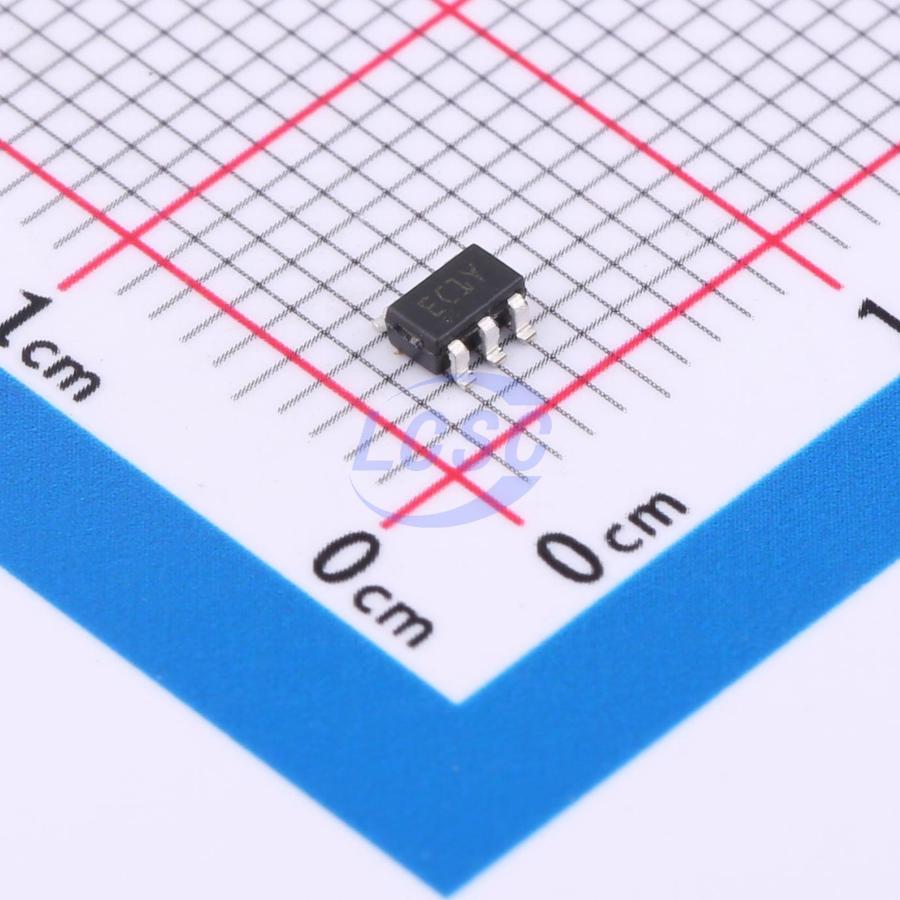

ESDA14V2SC5Y
35VC Clamp 14A@8/20us Ipp TVS DIODE SOT-23-5
SOT-23-5ROHS3 CompliantActive
TVS DIODE 12VWM 35VC SOT-23-5
- Manufacturer
- ST
- Manufacturer part #
- ESDA14V2SC5Y
- Store part #
- C1974378
- Package / case
- SOT-23-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C1974378
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.56 | ₹112.80 |
| 50+ | ₹22.07 | ₹1,103.50 |
| 150+ | ₹21.75 | ₹3,262.50 |
| 500+ | ₹21.42 | ₹10,710.00 |
5 × ₹22.56
₹112.80
excl. GST
₹133.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDA14V2SC5Y
₹112.80 for 5 + GST
Specifications
- Clamping Voltage
- 35V
- Operating Temperature
- -40℃~+150℃
- Peak Pulse Current (Ipp)
- 14A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 15.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.116 g
Overview
The ESDAxxSCxY devices are monolithic voltage suppressors designed to protect components which are connected to data and transmission lines against ESD. They clamp the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transient.
Applications
- Information - entertainment
- Signal communications
- Connectivity
- Comfort and convenience
Key features
- 4 unidirectional Transil functions 400 W peak pulse power (8/20 μs)
- High EOS and ESD protection levels
- Suitable for high density boards
- AEC-Q101 qualified
- Complies with ISO 10605: C = 150 pF, R = 330 Ω, 30 kV (air discharge) 30 kV (contact discharge)
- Complies with ISO 10605: C = 330 pF, R = 330 Ω, 30 kV (air discharge) 30 kV (contact discharge)
- Complies with ISO 7637-2 Pulse 1: VS = -100 V, Pulse 2a: VS = +50 V, Pulse 3a: VS = -150 V, Pulse 3b: VS = +100 V
