STDatasheet (PDF)

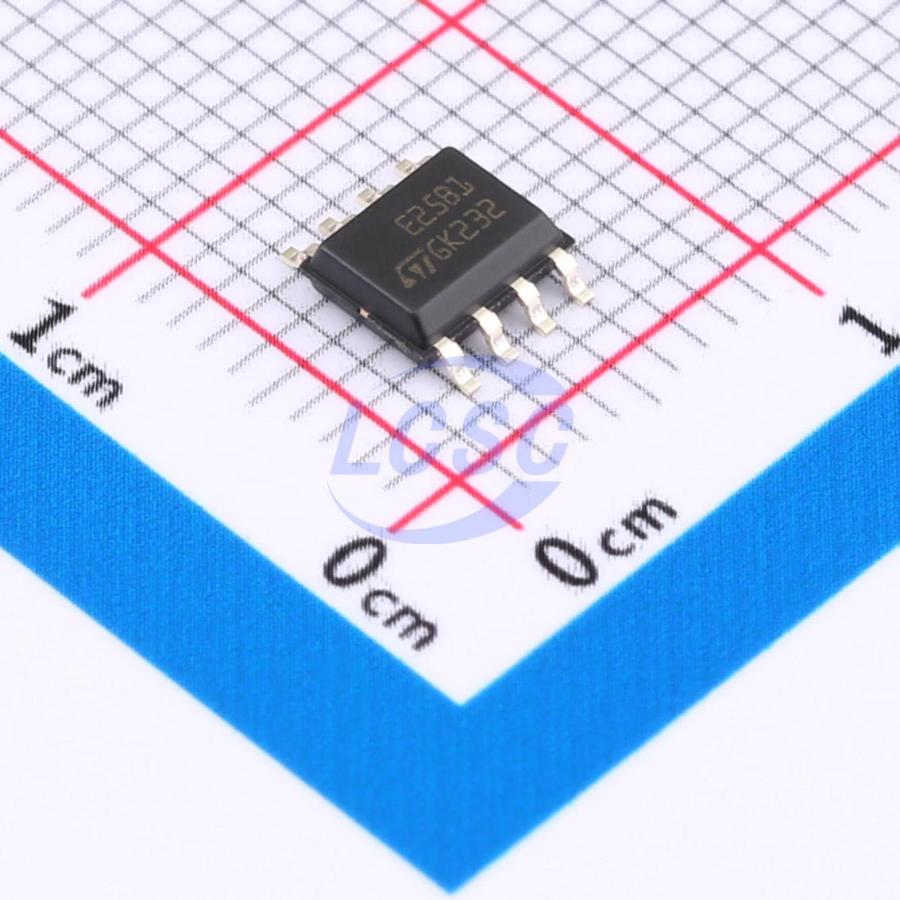

ESDA25B1RL
25VC Clamp ESD DIODE SOIC-8
SOIC-8ROHS3 CompliantActive
ESD DIODE 24VWM 25VC SOIC-8
- Manufacturer
- ST
- Manufacturer part #
- ESDA25B1RL
- Store part #
- C2969928
- Package / case
- SOIC-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
151 in stock
#C2969928
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹425.82 | ₹425.82 |
| 10+ | ₹365.52 | ₹3,655.20 |
| 30+ | ₹327.85 | ₹9,835.50 |
| 100+ | ₹289.10 | ₹28,910.00 |
| 500+ | ₹271.69 | ₹1,35,845.00 |
| 1,000+ | ₹264.07 | ₹2,64,070.00 |
1 × ₹425.82
₹425.82
excl. GST
₹502.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ESDA25B1RL
₹425.82 for 1 + GST
Specifications
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 30V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
The ESDA25B1 is a monolithic voltage suppressor designed to protect components which are connected to data and transmission lines against EDS.
Applications
- COMPUTER
- PRINTERS
- COMMUNICATION SYSTEMS
- RS232 I/O port protection
Key features
- 6 BIDIRECTIONAL TRANSIL FUNCTIONS
- VERY LOW CAPACITANCE: C = 20 pF @ VRM
- 150 W peak pulse power (8/20 μs)
