TECH PUBLIC

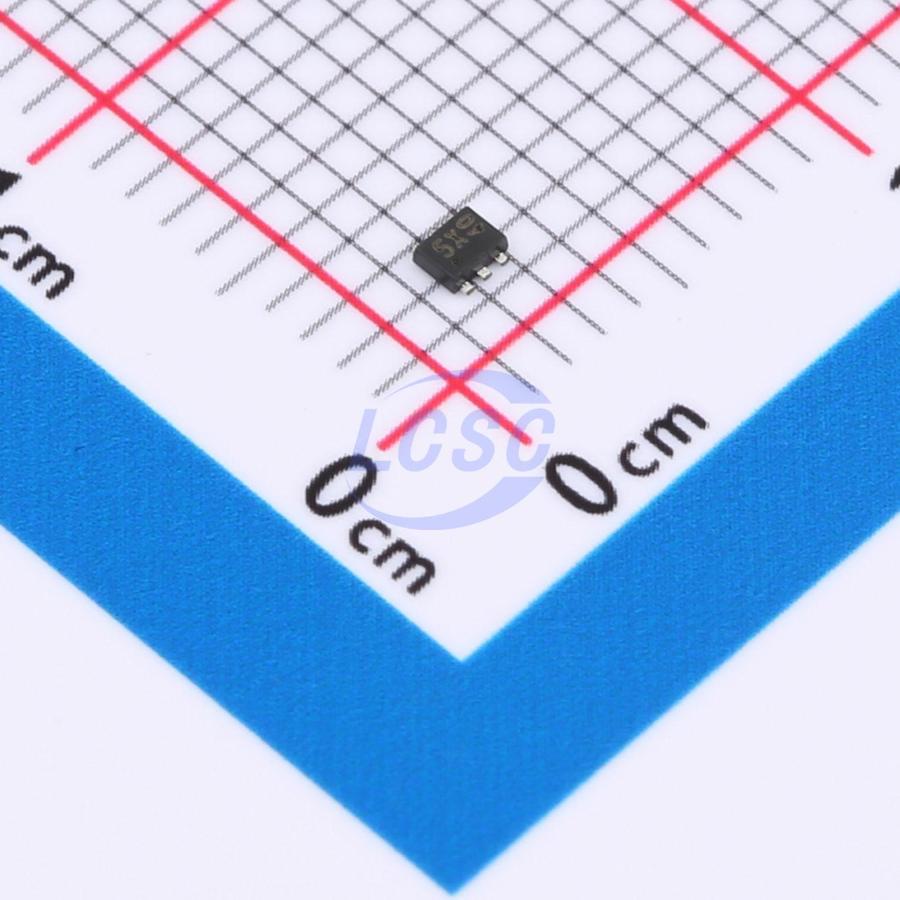

ESDA6V1-5P6

nan

SOT-563RoHSActive

5VWM 14VC SOT-563

Manufacturer: TECH PUBLIC
Manufacturer part #: ESDA6V1-5P6
Store part #: C22358699
Package / case: SOT-563
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,450 in stock

#C22358699

Stock & price checked 16 days ago

Quantity	Unit price	Pack price
5+	₹9.83	₹49.15
50+	₹7.71	₹385.50
150+	₹6.67	₹1,000.50
500+	₹5.87	₹2,935.00
2,500+	₹5.24	₹13,100.00
4,000+	₹4.92	₹19,680.00

Quantity (min 5, multiples of 5)

5 × ₹9.83

₹49.15

excl. GST

₹58.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

ESDA6V1-5P6

₹49.15 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 14V
Operating Temperature: -55℃~+125℃
Peak Pulse Power Dissipation (Ppp): 150W@8/20us
Voltage - Breakdown: 6.5V
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.02 g

Overview

Applications

USB 2.0 interface 10/100 Ethernet
Personal digital assistants (PDA's)
Notebooks, Desktops and Servers
Portable instrumentation Digital cameras

Key features

Ultra low leakage: nA level
Low operating voltage: 5V
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV IEC61000-4-5 (Lightning) 8A (8/20us)
RoHS Compliant
Lead Finish: NiPdAu
