TECH PUBLIC

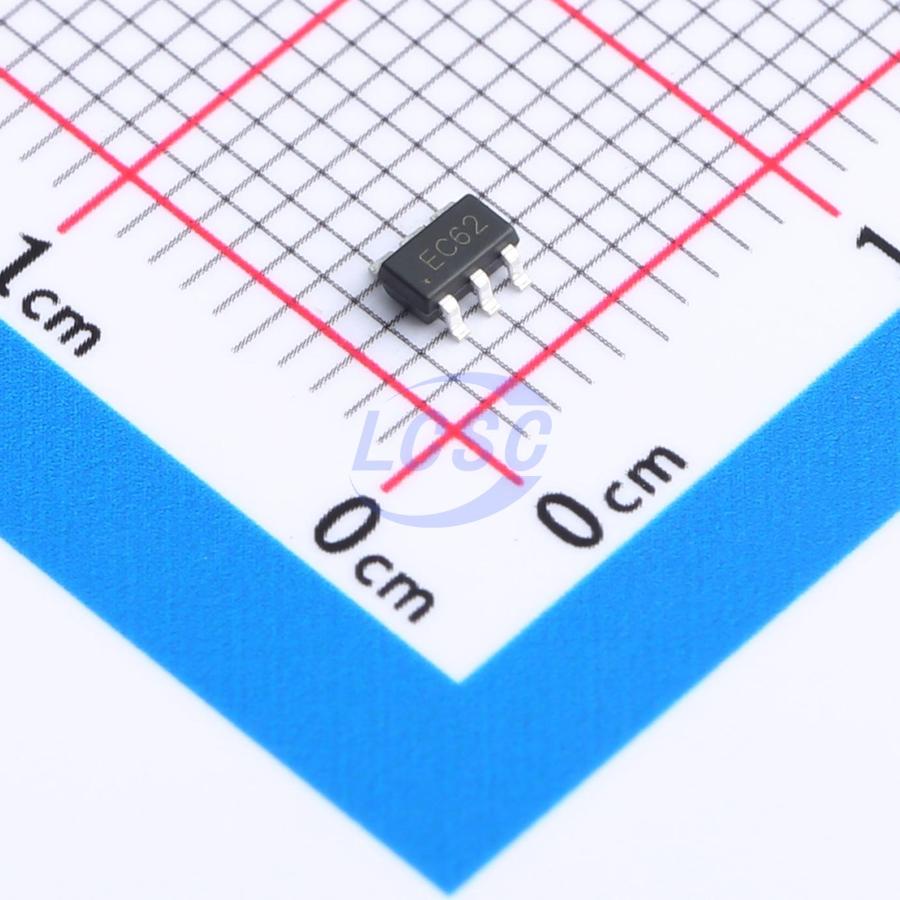

ESDA6V1-5SC6Y

15VC Clamp 10A@8/20us Ipp SOT-23-6

SOT-23-6RoHSActive

5.5VWM 15VC SOT-23-6

Manufacturer: TECH PUBLIC
Manufacturer part #: ESDA6V1-5SC6Y
Store part #: C19829443
Package / case: SOT-23-6
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,885 in stock

#C19829443

Stock & price checked 15 days ago

Quantity	Unit price	Pack price
5+	₹11.87	₹59.35
50+	₹10.37	₹518.50
150+	₹9.62	₹1,443.00
500+	₹9.06	₹4,530.00
3,000+	₹8.61	₹25,830.00
6,000+	₹8.39	₹50,340.00

Quantity (min 5, multiples of 5)

5 × ₹11.87

₹59.35

excl. GST

₹70.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ESDA6V1-5SC6Y

₹59.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 15V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 10A@8/20us
Voltage - Breakdown: 9V
Reverse Leakage Current (Ir): 1uA
Reverse Stand-Off Voltage (Vrwm): 5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

Applications

Mobile phone handsets
Personal Digital Assistants (PDA)
Portable handheld equipment (Laptop, Palmtop computers)
Computer port, keyboard (USB1.1)

Key features

Operating voltage: 5.5V
Low Input Compliannt: 35pF
Complies with following standards:
IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	ESDA6V1-5SC6#C2827672TECH PUBLIC · SOT-23-6	TECH PUBLIC	SOT-23-6	1,110	₹14.59 · 1,110 in stock	View
