TECH PUBLICDatasheet (PDF)

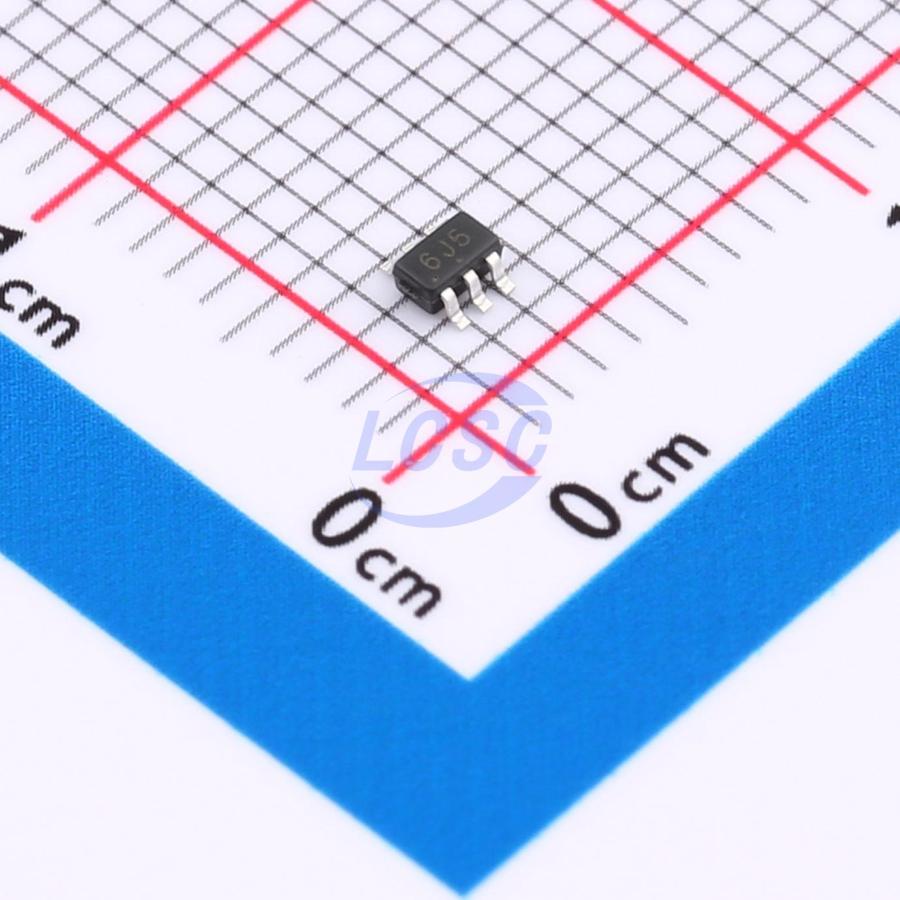

ESDA6V1-5W6
nan
SOT-363(SC-70-6)RoHSActive
5VWM 15VC SOT-363(SC-70-6)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESDA6V1-5W6
- Store part #
- C23380862
- Package / case
- SOT-363(SC-70-6)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,290 in stock
#C23380862
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.53 | ₹75.30 |
| 100+ | ₹5.91 | ₹591.00 |
| 300+ | ₹5.12 | ₹1,536.00 |
| 3,000+ | ₹4.51 | ₹13,530.00 |
| 6,000+ | ₹4.04 | ₹24,240.00 |
| 9,000+ | ₹3.80 | ₹34,200.00 |
10 × ₹7.53
₹75.30
excl. GST
₹88.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDA6V1-5W6
₹75.30 for 10 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Number of Channels
- 5
- Voltage - Breakdown
- 6V
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Portable Instrumentation
- Microprocessor Based Equipmenmt
- Cell Phone Handsets and Accessories
- Personal Digital Assistants (PDAs) and Pagers
Key features
- Working voltage: 5V
- Low clamping voltage
- Protects five I/O lines
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 8A (8/20μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
