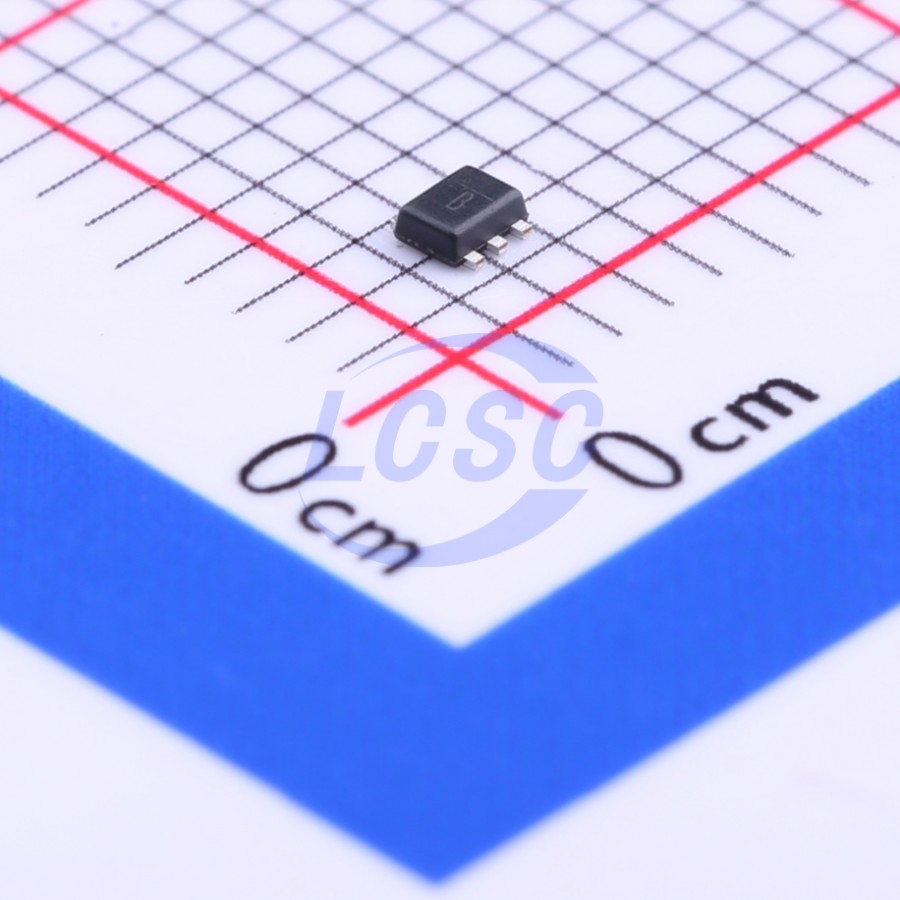

ESDA6V1P6

nan

SOT-666-6ROHS3 CompliantActive

TVS DIODE 3VWM SOT-666-6

Manufacturer: ST
Manufacturer part #: ESDA6V1P6
Store part #: C191168
Package / case: SOT-666-6
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

95 in stock

#C191168

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹36.70	₹183.50
50+	₹30.51	₹1,525.50
150+	₹27.84	₹4,176.00
500+	₹24.53	₹12,265.00
3,000+	₹23.05	₹69,150.00
6,000+	₹22.16	₹1,32,960.00

Quantity (min 5, multiples of 5)

5 × ₹36.70

₹183.50

excl. GST

₹216.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ESDA6V1P6

₹183.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃@(Tj)
Peak Pulse Power Dissipation (Ppp): 150W@8/20us
Voltage - Breakdown: 7.2V
type: TVS
Reverse Leakage Current (Ir): 500nA
Polarity: Unidirectional
Reverse Stand-Off Voltage (Vrwm): 3V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.029 g

Overview

The ESDAxxxP6 are monolithic arrays designed to protect up to 5 lines against ESD transients. These devices are ideal where board space saving and reduced line capacitance are required.

Applications

Computers
Servers
Printers
Communication systems and cellular phones
Video equipment

Key features

4 / 5 Unidirectional (ESDA6V1P6 and ESDA6V1 - 5P6) and Bidirectional (ESDA14V2BP6 and ESDA25 - 4BP6) Transil functions
Breakdown voltage: VBR = 6.1 V min., 14.2 V min. and 25 V min.
Low leakage current: <500 nA (ESDA6V1P6 / ESDA6V1 - 5P6), <1 μA (ESDA14V2BP6 and ESDA25 - 4BP6)
Very small PCB area <2.6 mm²
