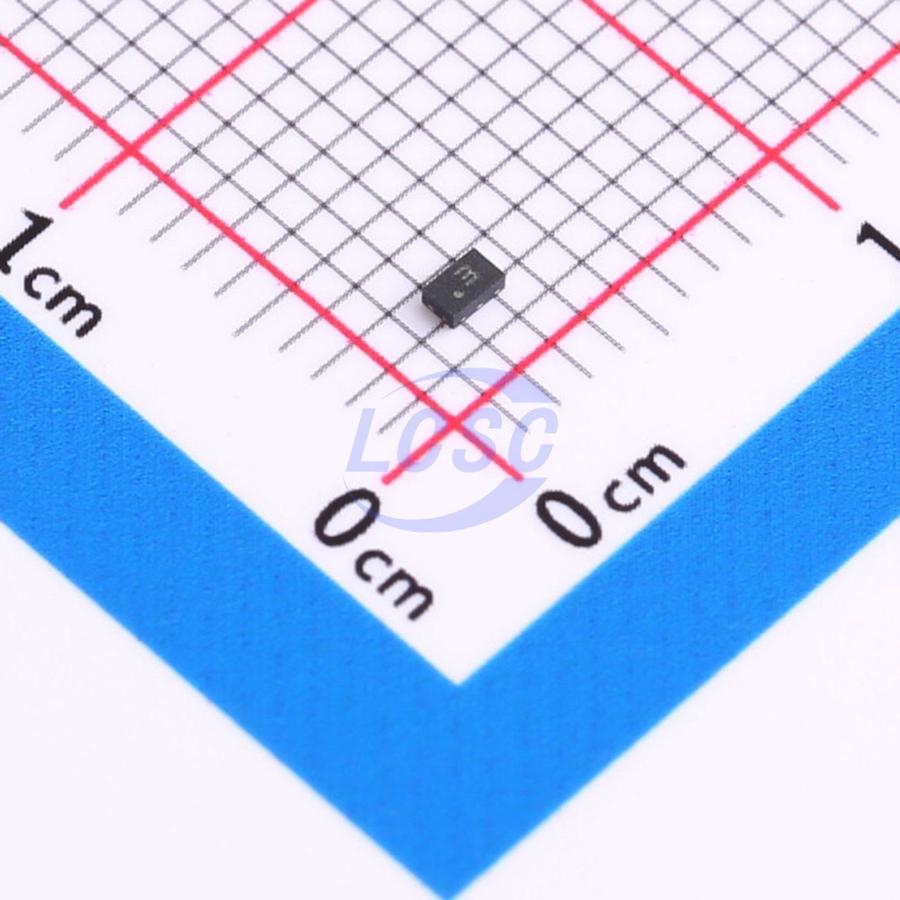

ESDA7P120-1U1M

11.5VC Clamp 120A@8/20us Ipp ESD DIODE 1610

1610ROHS3 CompliantActive

ESD DIODE 5.5VWM 11.5VC 1610

Manufacturer: ST
Manufacturer part #: ESDA7P120-1U1M
Store part #: C2969802
Package / case: 1610
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,360 in stock

#C2969802

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
5+	₹42.69	₹213.45
50+	₹34.01	₹1,700.50
150+	₹30.31	₹4,546.50
500+	₹25.67	₹12,835.00
2,500+	₹23.60	₹59,000.00
5,000+	₹22.37	₹1,11,850.00

Quantity (min 5, multiples of 5)

5 × ₹42.69

₹213.45

excl. GST

₹251.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 8,000 per reel

ESDA7P120-1U1M

₹213.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 6.4V
Operating Temperature: -55℃~+150℃@(Tj)
Peak Pulse Current (Ipp): 120A@8/20us
Peak Pulse Power Dissipation (Ppp): 1.4kW@8/20us
Voltage - Breakdown: 6.4V
Number of Channels: 1
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 1.5uA
Reverse Stand-Off Voltage (Vrwm): 5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 8,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.06 g

Overview

The ESDA7P120-1U1M is a unidirectional single line TVS diode designed to protect the power line against EOS and ESD transients. The device is ideal for applications where high power TVS and board space saving is required.

Applications

Smartphones, mobile phones, tablets
Portable multimedia
USB VBUS protection
Power supply protection
Battery protection

Key features

Low clamping voltage
Peak pulse power: 1400 W (8/20 μs)
Stand-off voltage 5.5 V
Unidirectional diode
Low leakage current: 1.5 μA at 25 °C
Complies with IEC 61000-4-2 level 4 ±30 kV (air discharge) ±30 kV (contact discharge)
