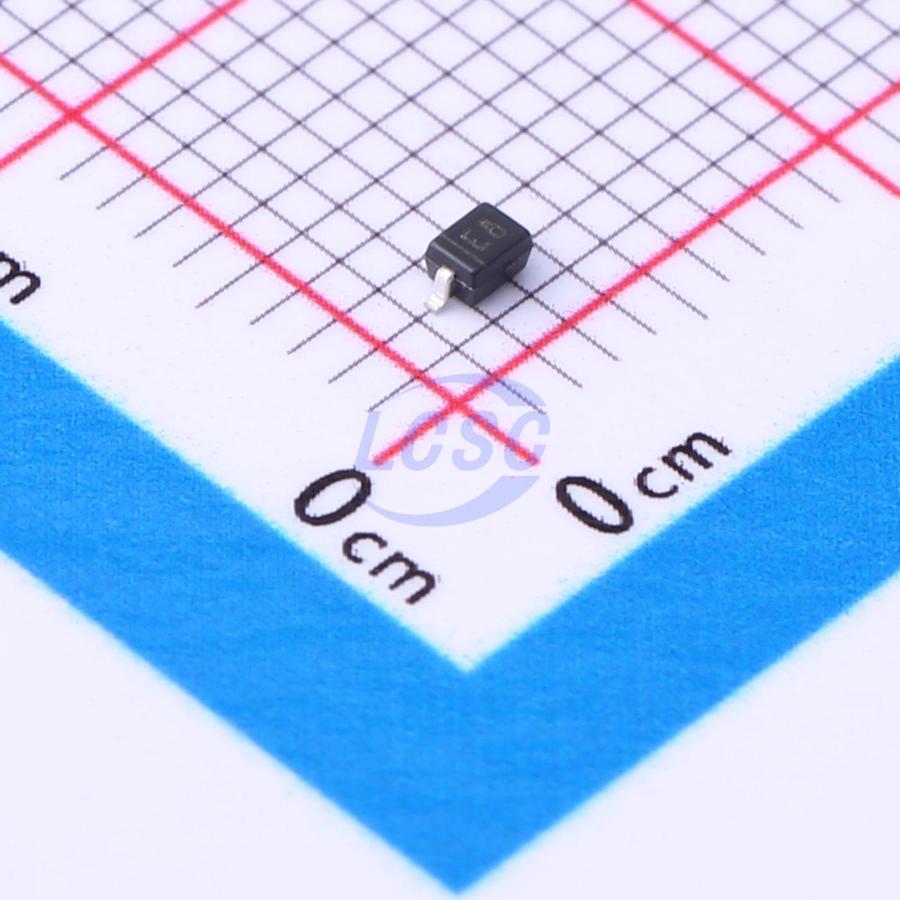

ESDA8V2-1J
20VC Clamp 25A@8/20us Ipp ESD DIODE SOD-323
SOD-323ROHS3 CompliantActive
ESD DIODE 5VWM 20VC SOD-323
- Manufacturer
- ST
- Manufacturer part #
- ESDA8V2-1J
- Store part #
- C1973027
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
308 in stock
#C1973027
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.49 | ₹109.49 |
| 10+ | ₹88.47 | ₹884.70 |
| 30+ | ₹78.06 | ₹2,341.80 |
| 100+ | ₹67.66 | ₹6,766.00 |
| 500+ | ₹61.36 | ₹30,680.00 |
| 1,000+ | ₹58.33 | ₹58,330.00 |
1 × ₹109.49
₹109.49
excl. GST
₹129.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDA8V2-1J
₹109.49 for 1 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 25A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 500W@8/20us
- Voltage - Breakdown
- 8.2V
- Number of Channels
- 1
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
Overview
The ESDA8V2-1J is a unidirectional single line Transil diode designed specifically for the protection of integrated circuits in portable equipment and miniaturized electonic devices subject to EOS and ESD transient overvoltages.
Applications
- Computers
- Printers
- Communication systems
- Cellular phone handsets and accessories
- Video equipment
Key features
- Breakdown voltage VBR = 8.2 V
- Unidirectional device High peak power dissipation: 500 W (8/20 µs waveform) ESD protection level better than IEC 61000 - 4 - 2, level 4: 30 kV contact discharge
- Low leakage current (<0.5 µA @ 5 V)
