TECH PUBLICDatasheet (PDF)

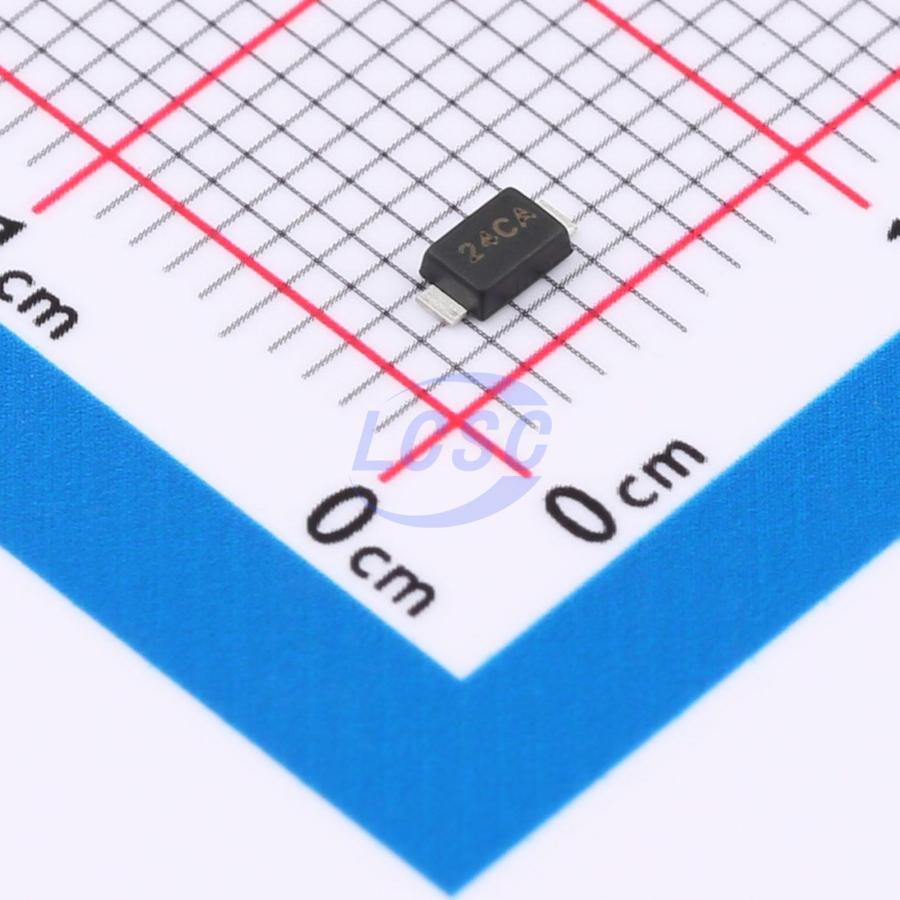

ESDBE24VD1
35VC Clamp 150A@8/20us Ipp SOD-123FL
SOD-123FLRoHSActive
24VWM 35VC SOD-123FL
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ESDBE24VD1
- Store part #
- C22435046
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,240 in stock
#C22435046
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.70 | ₹97.00 |
| 100+ | ₹7.82 | ₹782.00 |
| 300+ | ₹6.88 | ₹2,064.00 |
| 3,000+ | ₹6.18 | ₹18,540.00 |
| 6,000+ | ₹5.61 | ₹33,660.00 |
| 9,000+ | ₹5.33 | ₹47,970.00 |
10 × ₹9.70
₹97.00
excl. GST
₹114.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDBE24VD1
₹97.00 for 10 + GST
Specifications
- Clamping Voltage
- 35V
- Peak Pulse Current (Ipp)
- 150A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 5kW@8/20us
- Voltage - Breakdown
- 26.7V
- type
- ESD
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
Key features
- For surface mounted applications
- Excellent clamping capability
- 5000 W peak pulse power capability with a 8/20μs Waveform.
- IEC-61000-4-2 ESD 30KV(Air),30KV(Contact)
