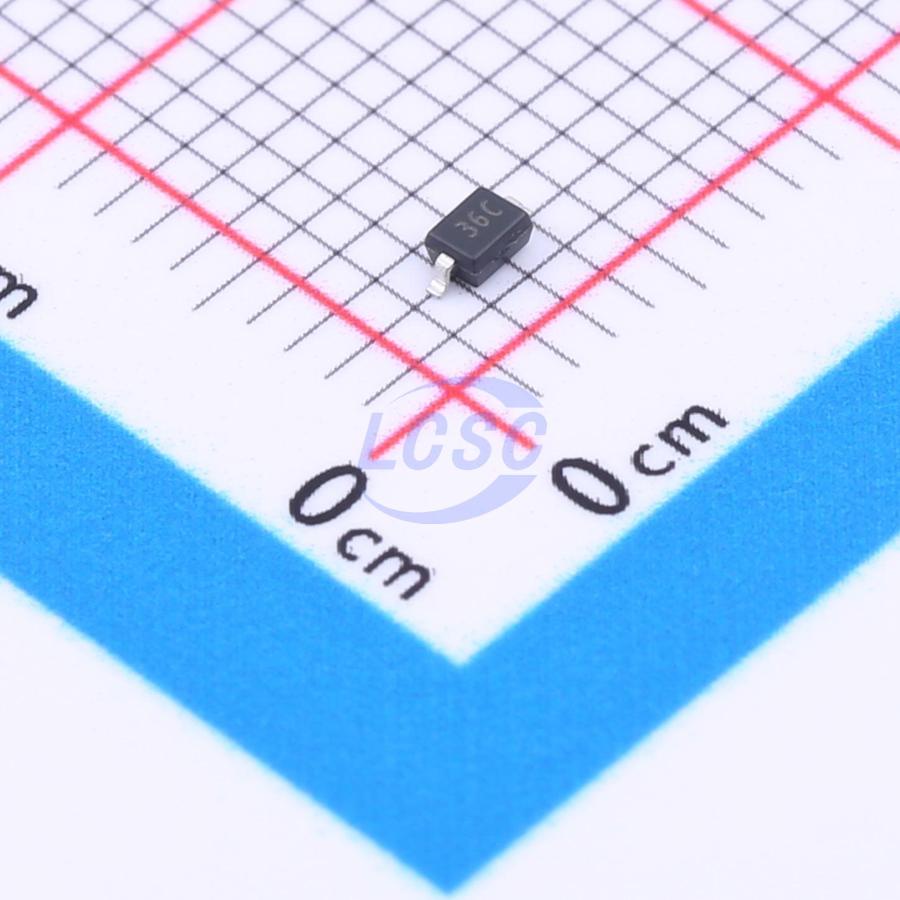

ESDBL36VD3
80VC Clamp 3A@8/20us Ipp ESD DIODE SOD-323
ESD DIODE 36VWM 80VC SOD-323
- Manufacturer
- JSCJ
- Manufacturer part #
- ESDBL36VD3
- Store part #
- C2910085
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,120 in stock
#C2910085
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹6.34 | ₹126.80 |
| 200+ | ₹5.28 | ₹1,056.00 |
| 600+ | ₹4.70 | ₹2,820.00 |
| 3,000+ | ₹4.34 | ₹13,020.00 |
| 9,000+ | ₹4.04 | ₹36,360.00 |
| 21,000+ | ₹3.88 | ₹81,480.00 |
20 × ₹6.34
₹126.80
excl. GST
₹149.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDBL36VD3
₹126.80 for 20 + GST
Specifications
- Clamping Voltage
- 80V
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 240W@8/20us
- Voltage - Breakdown
- 48V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.074 g
Overview
Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, low capacitance, and high level of ESD protection makes them a flexible solution for applications such as HDMI, Display Port, and MDDI interfaces. It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc.
Applications
- Computers and peripherals
- Control & monitoring systems
- Audio and video equipment
- Cellular handsets and accessories
- Portable electronics
- Set-top box
- Other electronics equipments communication systems
Key features
- Bi-directional ESD protection of one line
- Reverse stand−off voltage: 36V
- Low reverse clamping voltage
- Low leakage current
- Excellent package: 1.7mm×1.3mm×1.0mm
- Fast response time
- JESD22-A114-B ESD Rating of class 3B per human body model
- IEC 61000-4-2 Level 4 ESD protection
