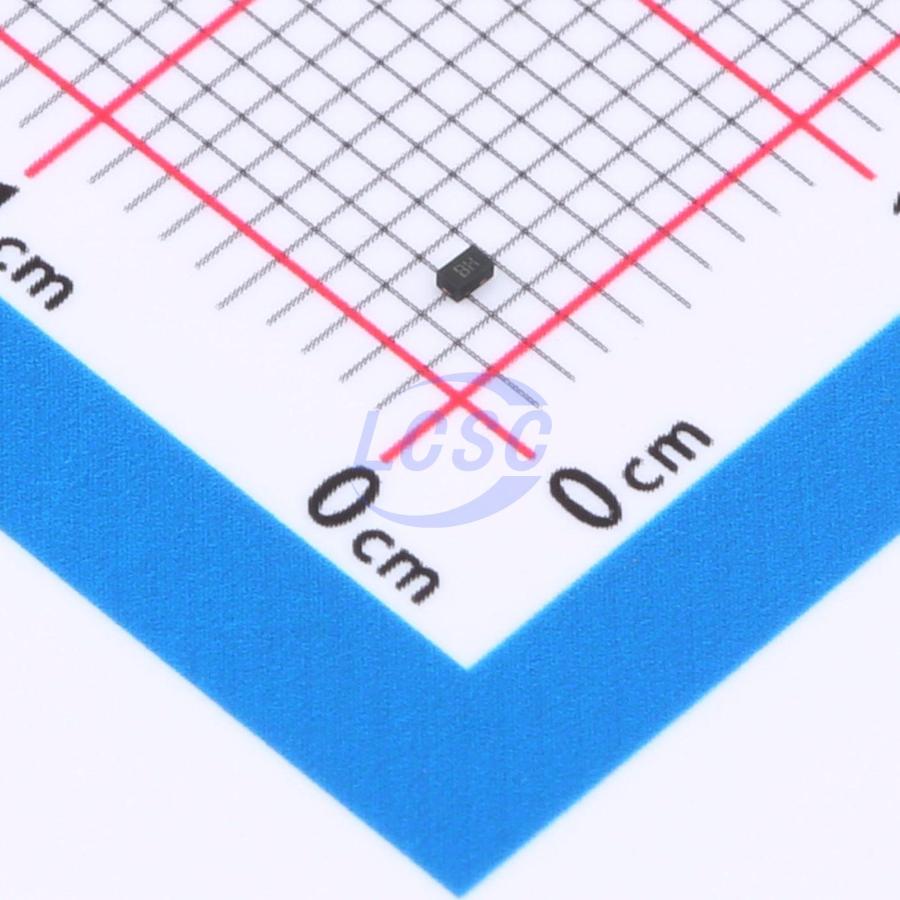

ESDBU18VA1

Designed to protect voltage sensitive electronic components from ESD and other transients, Excellent clamping capability, low capacitance, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, low capacitance, and high level of ESD protection makes them a flexible solution for applications such as HDMI, Display Port. It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc.

Applications

• Computers and peripherals
• High speed data lines
• Audio and video equipment
• Cellular handsets and accessories
• Portable electronics
• USB interfaces
• Other electronics equipments communication systems

Key features

• Bi-directional ESD protection of one line
• Low capacitance: 0.35pF
• Low reverse clamping voltage Reverse stand−off voltage: 18V
• ESD Rating of Class 3(>16kV) Per Human Body Model
• Excellent package: 1.0mm × 0.6mm × 0.5mm
• Fast response time
• JESD22-A114-B ESD Rating of class 3B per human body model
• IEC 61000-4-2 Level 3 ESD protection
