TECH PUBLIC

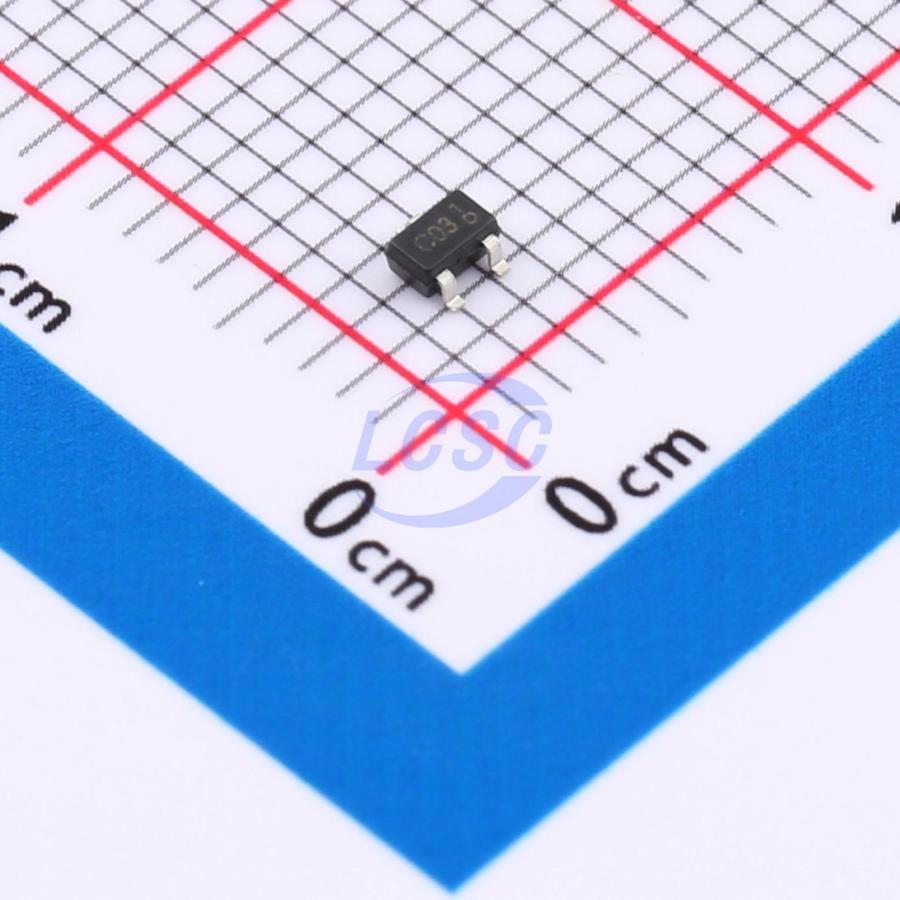

ESDCAN03-2BWY

36VC Clamp 3A@8/20us Ipp SOT-323

SOT-323RoHSActive

24VWM 36VC SOT-323

Manufacturer: TECH PUBLIC
Manufacturer part #: ESDCAN03-2BWY
Store part #: C41407965
Package / case: SOT-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,435 in stock

#C41407965

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹15.00	₹75.00
50+	₹11.80	₹590.00
150+	₹10.20	₹1,530.00
500+	₹9.00	₹4,500.00
3,000+	₹8.03	₹24,090.00
6,000+	₹7.55	₹45,300.00

Quantity (min 5, multiples of 5)

5 × ₹15.00

₹75.00

excl. GST

₹88.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ESDCAN03-2BWY

₹75.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 36V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 3A@8/20us
Peak Pulse Power Dissipation (Ppp): 100W@8/20us
Voltage - Breakdown: 32V
Polarity: Bidirectional
Reverse Leakage Current (Ir): 200nA
Reverse Stand-Off Voltage (Vrwm): 24V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.028 g

Overview

Applications

CAN Bus Protection
Automotive Appllcatrons

Key features

Ultra low leakage: nA level
Operating voltage: 24V
Low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 3A (8/20μs)
RoHS Compliant
