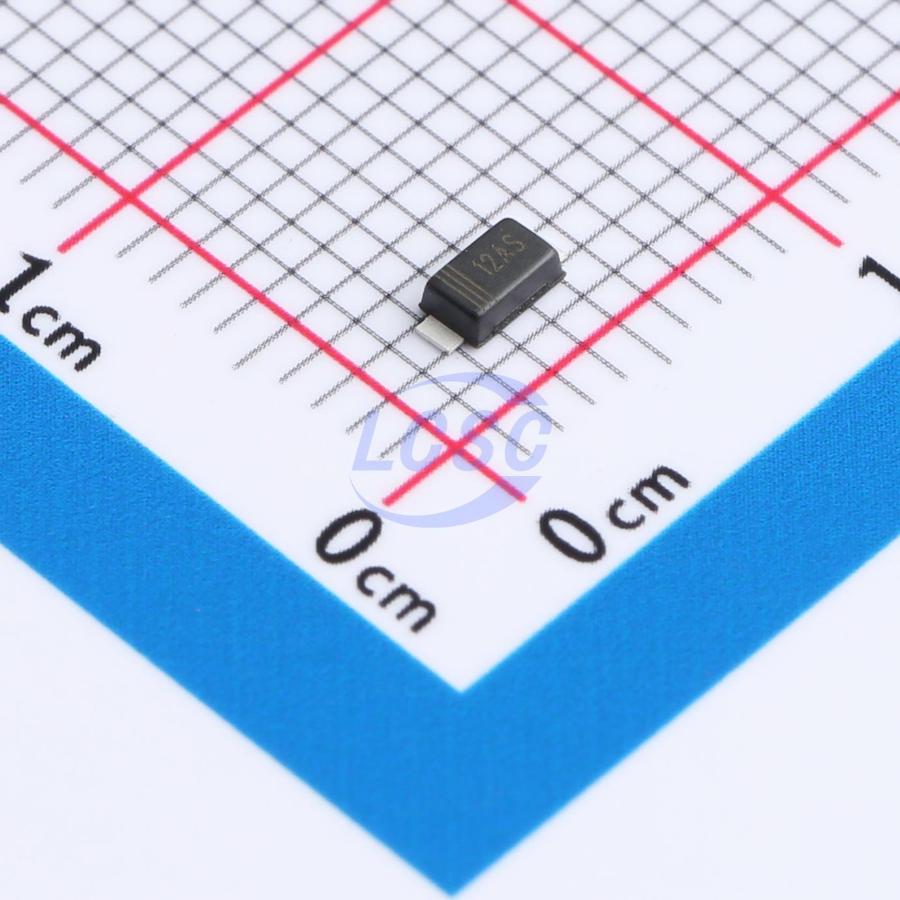

ESDE12VSDF1
32VC Clamp 200A Ipp ESD DIODE SOD-123FL
ESD DIODE 12VWM 32VC SOD-123FL
- Manufacturer
- JSCJ
- Manufacturer part #
- ESDE12VSDF1
- Store part #
- C5295607
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
950 in stock
#C5295607
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.66 | ₹56.60 |
| 100+ | ₹4.42 | ₹442.00 |
| 300+ | ₹3.80 | ₹1,140.00 |
| 3,000+ | ₹3.33 | ₹9,990.00 |
| 6,000+ | ₹2.95 | ₹17,700.00 |
| 9,000+ | ₹2.77 | ₹24,930.00 |
10 × ₹5.66
₹56.60
excl. GST
₹66.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDE12VSDF1
₹56.60 for 10 + GST
Specifications
- Clamping Voltage
- 32V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 200A
- Peak Pulse Power Dissipation (Ppp)
- 6.4kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 13.8V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, high level of ESD protection makes them a flexible solution for applications such as Digital cameras, cellular phones, and MP3 Players. It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc.
Applications
- Computers and peripherals
- Digital Cameras
- Audio and video equipment
- Cellular handsets and accessories
- Portable electronics
- Mobile phone
- Other electronics equipments communication systems
Key features
- Uni-directional ESD protection of one line
- Reverse stand−off voltage: 12V
- Low reverse clamping voltage
- Low leakage current
- Excellent package: 2.80mm×1.90mm×1.00mm
- Fast response time
- JESD22-A114-B ESD Rating of class 3B per human body model
- IEC 61000-4-2 Level 4 ESD protection
