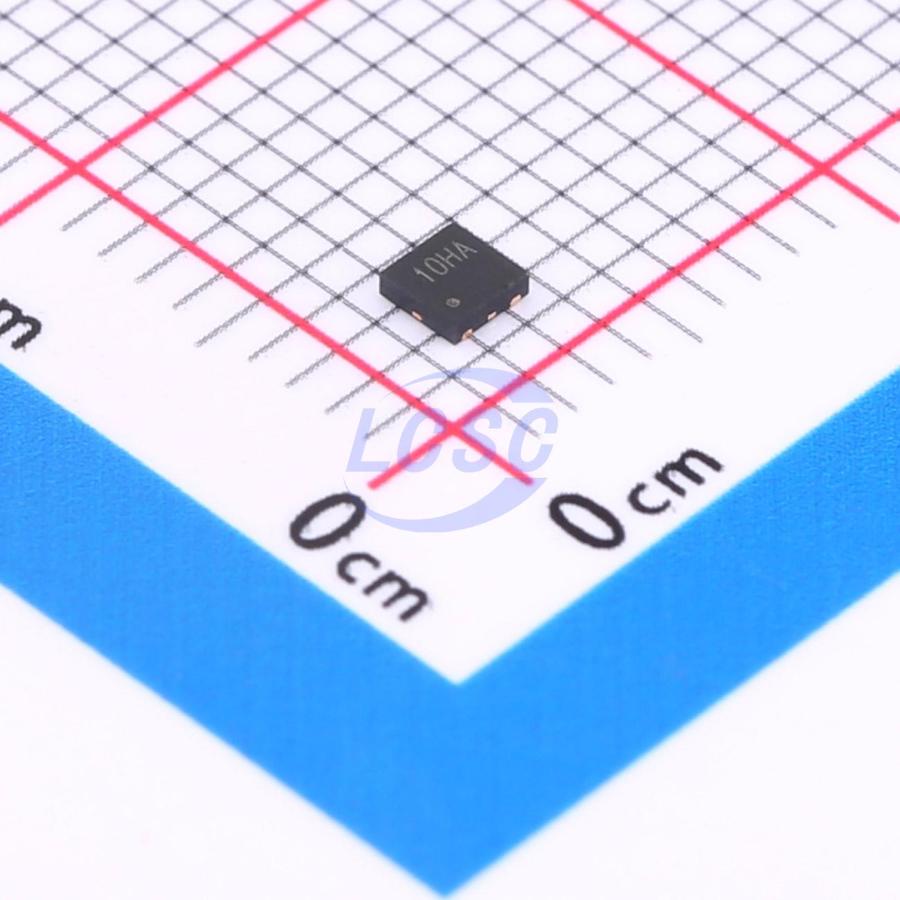

ESDH10VP1A
30VC Clamp 200A Ipp ESD DIODE DFNWB-3L(2x2)
ESD DIODE 10VWM 30VC DFNWB-3L(2x2)
- Manufacturer
- JSCJ
- Manufacturer part #
- ESDH10VP1A
- Store part #
- C5295602
- Package / case
- DFNWB-3L(2x2)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,400 in stock
#C5295602
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.24 | ₹71.20 |
| 50+ | ₹11.11 | ₹555.50 |
| 150+ | ₹9.55 | ₹1,432.50 |
| 500+ | ₹8.37 | ₹4,185.00 |
| 3,000+ | ₹7.44 | ₹22,320.00 |
| 6,000+ | ₹6.96 | ₹41,760.00 |
5 × ₹14.24
₹71.20
excl. GST
₹84.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDH10VP1A
₹71.20 for 5 + GST
Specifications
- Clamping Voltage
- 30V
- Peak Pulse Current (Ipp)
- 200A
- Peak Pulse Power Dissipation (Ppp)
- 6kW
- Number of Channels
- 1
- Voltage - Breakdown
- 14.5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 10V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, high level of ESD protection makes them a flexible solution for applications such as Digital cameras, cellular phones, and MP3 Players. It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc.
Applications
- Computers and peripherals
- Digital Cameras
- Audio and video equipment
- Cellular handsets and accessories
- Portable electronics
- PAD
- Other electronics equipments
- communication systems
Key features
- Uni-directional ESD protection of one line
- Low reverse stand−off voltage: 10V
- Low reverse clamping voltage
- Low leakage current
- Excellent package: 2.0mm×2.0mm×0.6mm
- Peak pulse power: 6000W (IEC61000-4-5 8/20μs)
- Fast response time
- JESD22-A114-B ESD Rating of class 3B per human body model
- IEC61000-4-2 Level 4 ESD protection
- Surge protection according to IEC61000-4-5 8/20μs waveform: IPPM 200A
