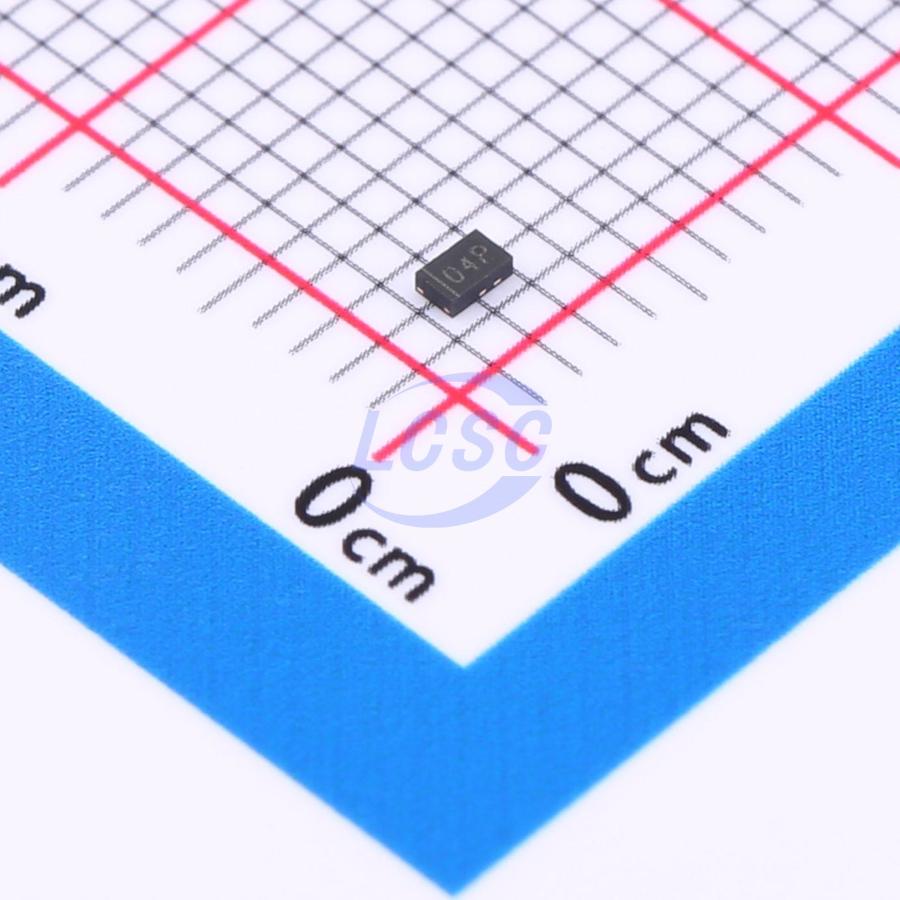

ESDH5V0FD1

Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, high level of ESD protection makes them a flexible solution for applications such as Digital cameras, cellular phones. It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc.

Applications

• Computers and peripherals
• Power lines
• Audio and video equipment
• Cellular handsets and accessories
• Portable electronics
• Tablets
• Other electronics equipments
• communication systems

Key features

• Uni-directional ESD protection of one line
• Reverse stand−off voltage: 5.0V
• Low reverse clamping voltage
• Low leakage current
• Excellent package: 1.60mm × 1.00mm × 0.50mm
• Peak pulse power: 2635W (IEC61000-4-5 8/20μs)
• Fast response time
• JESD22-A114-B ESD Rating of class 3B per human body model
• IEC 61000-4-2 Level 4 ESD protection
• Surge protection according to IEC61000-4-5 8/20μs waveform: IPPM 155A
