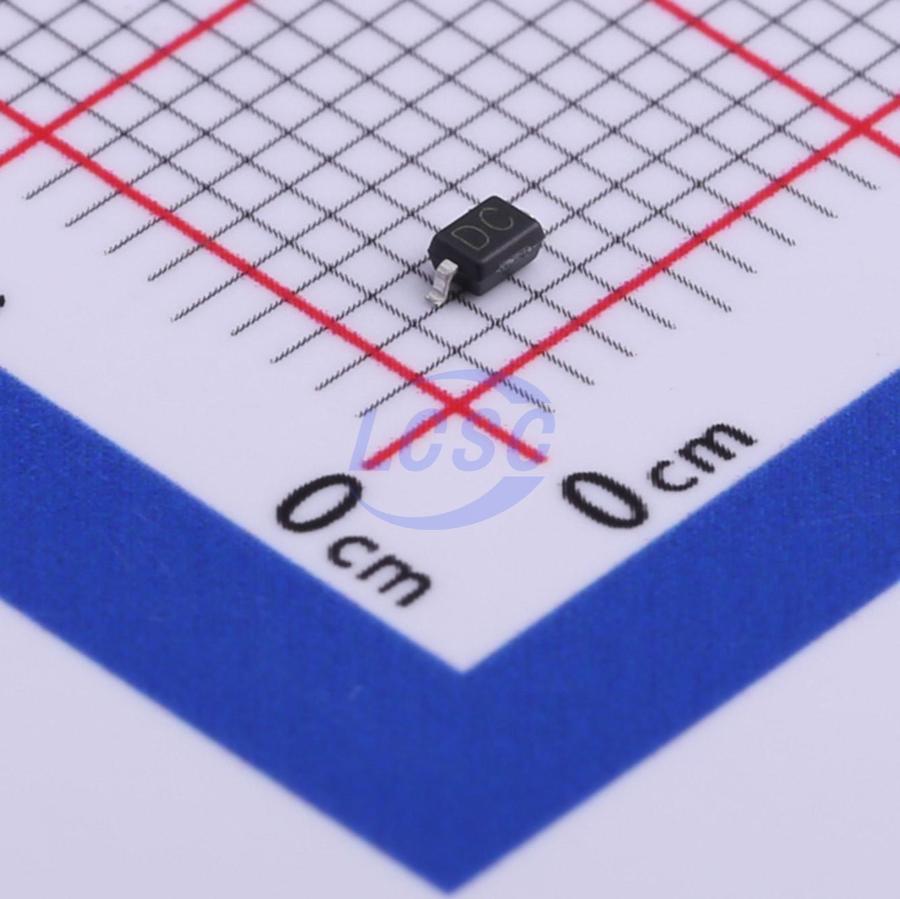

ESDLC12VD3B
30VC Clamp ESD DIODE SOD-323
ESD DIODE 12VWM 30VC SOD-323
- Manufacturer
- Yint
- Manufacturer part #
- ESDLC12VD3B
- Store part #
- C484328
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C484328
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹15.69 | ₹156.90 |
| 100+ | ₹11.74 | ₹1,174.00 |
| 300+ | ₹9.75 | ₹2,925.00 |
| 3,000+ | ₹8.27 | ₹24,810.00 |
10 × ₹15.69
₹156.90
excl. GST
₹185.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDLC12VD3B
₹156.90 for 10 + GST
Specifications
- Clamping Voltage
- 19V
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 13.3V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
ESDLC12VD3B is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, ultra-low capacitance values , it is very suitable for signal port and board space speed transmission is very small places, such as Ethernet, mobile phones , MP3 players, digital cameras and other portable.
Applications
- Cell Phone Handsets and Accessories
- Microprocessor based equipment
- Personal Digital Assistants (PDA’s)
- Notebooks, Desktops, and Servers
- Portable Instrumentation
- Peripherals
- USB Interface
Key features
- Ultra low leakage: nA level
- Operating voltage: 12V
- Package: SOD-323
- Protects one I/O line (unidirection)
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 12A (8/20μs)
