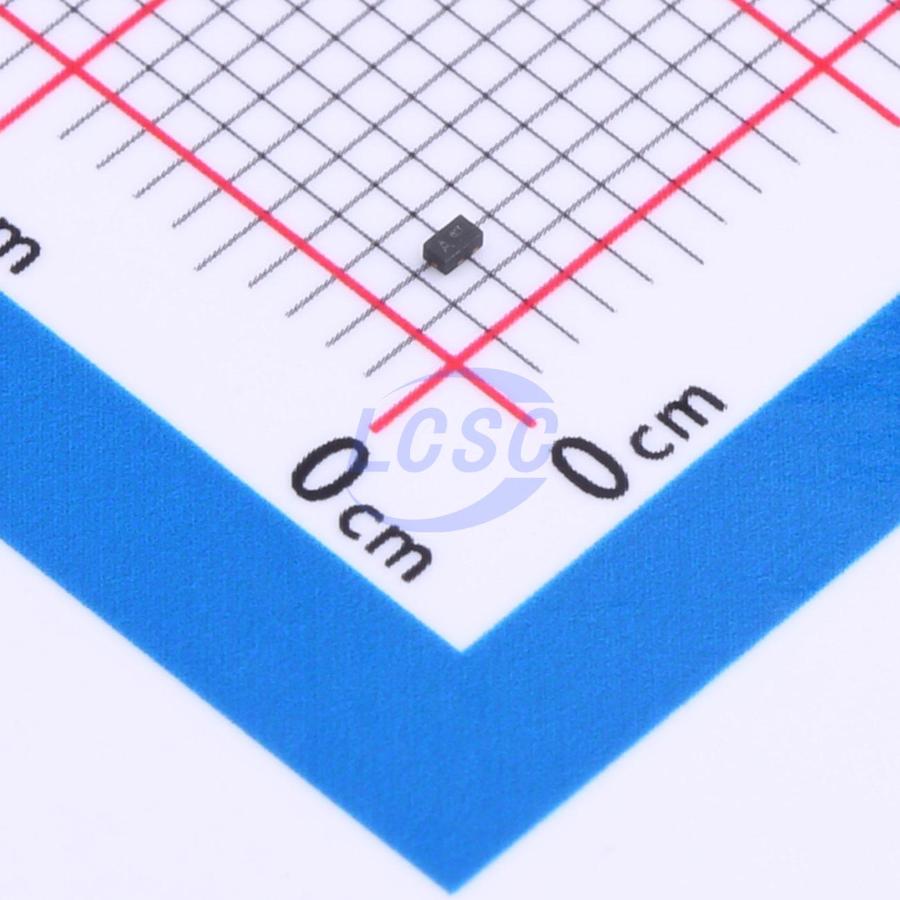

ESDLC5V0D8B
11.5VC Clamp 3.5A@8/20us Ipp ESD DIODE SOD-882
ESD DIODE 5VWM 11.5VC SOD-882
- Manufacturer
- Yint
- Manufacturer part #
- ESDLC5V0D8B
- Store part #
- C2920024
- Package / case
- SOD-882
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C2920024
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.86 | ₹58.60 |
| 100+ | ₹4.71 | ₹471.00 |
| 300+ | ₹4.14 | ₹1,242.00 |
| 1,000+ | ₹3.70 | ₹3,700.00 |
| 5,000+ | ₹2.94 | ₹14,700.00 |
| 10,000+ | ₹2.75 | ₹27,500.00 |
10 × ₹5.86
₹58.60
excl. GST
₹69.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ESDLC5V0D8B
₹58.60 for 10 + GST
Specifications
- Clamping Voltage
- 11.5V
- Peak Pulse Current (Ipp)
- 3.5A@8/20us
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.013 g
Overview
The ESDLC5V0D8B in a SOD-882 package and will protect bidirectional line. These devices are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDA’s. They offer superior electrical characteristics such as lower clamping voltage and no device degradation when compared to MLVs. The ESDLC5V0D8B are designed to protect sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD), and other voltage induced transient events.
Applications
- Cellular phones
- Portable devices
- Digital cameras
- Power supplies
Key features
- Case: SOD882 package
- Low Capacitance 3 pF
- Low clamping voltage
- Low Leakage current
- Response Time is Typically <1.0 ns
- IEC61000 4 2 Level 4 ESD Protection
- This is a Pb−Free Device
