STDatasheet (PDF)

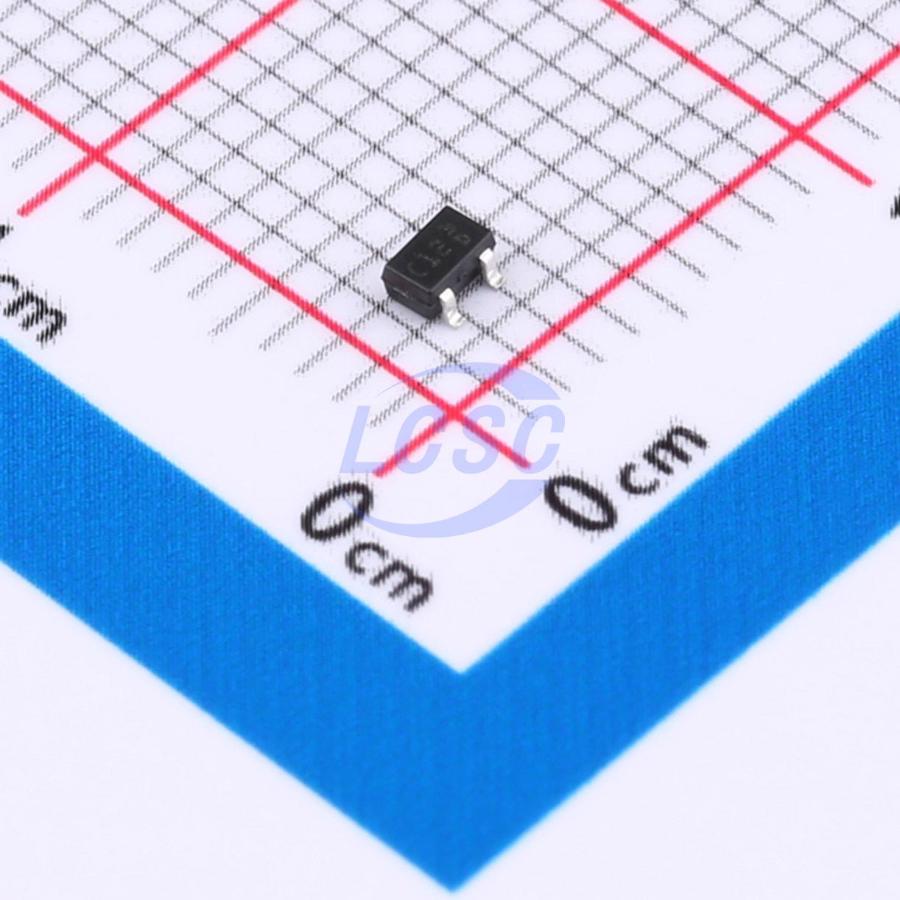

ESDLIN03-1BWY
44VC Clamp 3.7A@8/20us Ipp TVS DIODE SOT-323-3L
SOT-323-3LROHS3 CompliantActive
TVS DIODE 26.5VWM 44VC SOT-323-3L
- Manufacturer
- ST
- Manufacturer part #
- ESDLIN03-1BWY
- Store part #
- C1973077
- Package / case
- SOT-323-3L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C1973077
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.63 | ₹83.15 |
| 50+ | ₹16.27 | ₹813.50 |
| 150+ | ₹16.03 | ₹2,404.50 |
| 500+ | ₹15.80 | ₹7,900.00 |
5 × ₹16.63
₹83.15
excl. GST
₹98.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDLIN03-1BWY
₹83.15 for 5 + GST
Specifications
- Clamping Voltage
- 44V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 3.7A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 250W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 28.5V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 26.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
The ESDLIN03-1BWY is a single-line Transil specifically designed for the protection of the automotive LiN bus lines against electrostatic discharge (ESD) and transient voltages.
Applications
- LIN bus lines where electrostatic discharge and other transients must be suppressed.
- This product is compliant with most of automotive interfaces.
Key features
- Single-line ESD and EOS protection
- Stand-off voltage: 26.5 V
- Bidirectional device
- Max pulse power: 250 W (8/20 μs)
- Low clamping factor VCL/VBR
- Low leakage current
- ECOPACK compliant component
- AEC-Q101 qualified
