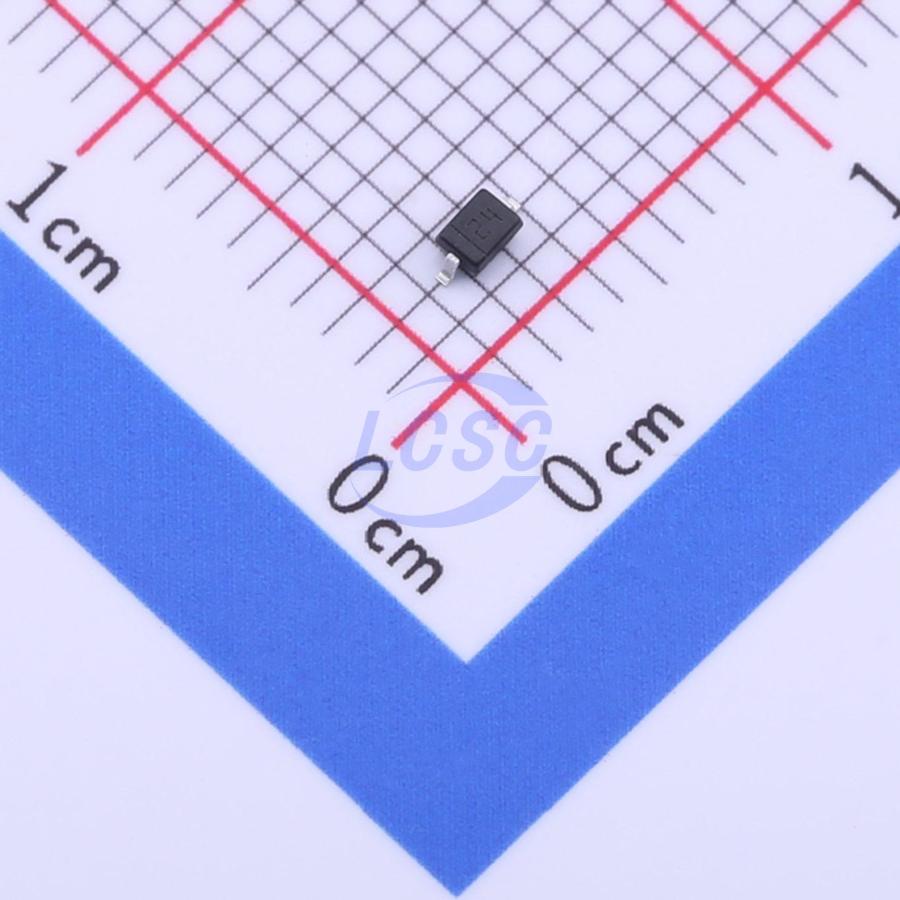

ESDLIN1524BJ
40VC 50VC 25VC 35VC Clamp 5A@8/20us Ipp TVS DIODE SOD-323
TVS DIODE 15VWM 24VWM 40VC 50VC 25VC 35VC SOD-323
- Manufacturer
- ST
- Manufacturer part #
- ESDLIN1524BJ
- Store part #
- C130452
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,202 in stock
#C130452
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.34 | ₹57.34 |
| 10+ | ₹45.35 | ₹453.50 |
| 30+ | ₹40.34 | ₹1,210.20 |
| 100+ | ₹33.80 | ₹3,380.00 |
| 500+ | ₹30.96 | ₹15,480.00 |
| 1,000+ | ₹29.23 | ₹29,230.00 |
1 × ₹57.34
₹57.34
excl. GST
₹67.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDLIN1524BJ
₹57.34 for 1 + GST
Specifications
- Clamping Voltage
- 50V
- Operating Temperature
- -40℃~+150℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 160W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 27.8V;18.9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V;24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.032 g
Overview
The device is an asymmetrical Transil diode designed specifically for one automotive LIN bus line against electrostatic discharge (ESD) protection. The SOD323 is a very small package that saves space on high density printed circuit board. Transil diodes provide high overvoltage protection by clamping action and have instantaneous response to transient overvoltages.
Key features
- AEC-Q101 qualified
- Asymmetrical bidirectional device
- Stand-off voltage: - 15 V (to comply with reverse battery) + 24 V (to comply with jump start)
- Low leakage current
