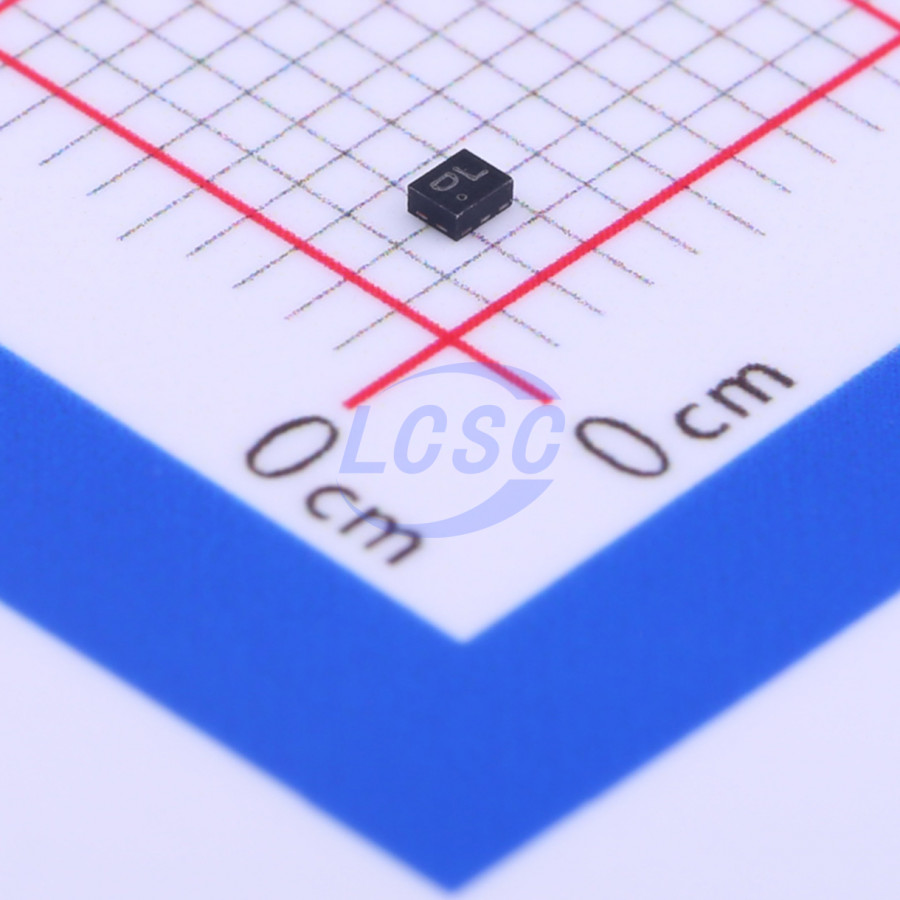

ESDR0502NMUTBG
3A Ipp ESD DIODE UDFN-6(1x1.2)
UDFN-6(1x1.2)ROHS3 CompliantActive
ESD DIODE 5.5VWM UDFN-6(1x1.2)
- Manufacturer
- onsemi
- Manufacturer part #
- ESDR0502NMUTBG
- Store part #
- C327480
- Package / case
- UDFN-6(1x1.2)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,695 in stock
#C327480
Stock & price checked 17 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.24 | ₹146.20 |
| 50+ | ₹22.87 | ₹1,143.50 |
| 150+ | ₹20.14 | ₹3,021.00 |
| 500+ | ₹16.74 | ₹8,370.00 |
| 3,000+ | ₹15.21 | ₹45,630.00 |
| 6,000+ | ₹14.31 | ₹85,860.00 |
5 × ₹29.24
₹146.20
excl. GST
₹172.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDR0502NMUTBG
₹146.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 3A
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Number of Channels
- Three channels
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The ESDR0502N ultra low capacitance surge protection array is designed to protect high speed data lines from ESD. Ultra−low capacitance and high level of ESD protection makes this device well suited for use in USB 2.0 applications.
Applications
- High Speed Communication Line Protection
- USB 2.0 High Speed Data Line and Power Line Protection
- Monitors and Flat Panel Displays
- MP3
- Gigabit Ethernet
Key features
- Low Capacitance (0.3 pF Typical Between I/O Lines and Ground)
- IEC 61000−4−2 Level 4
- UL Flammability Rating of 94 V−0
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
