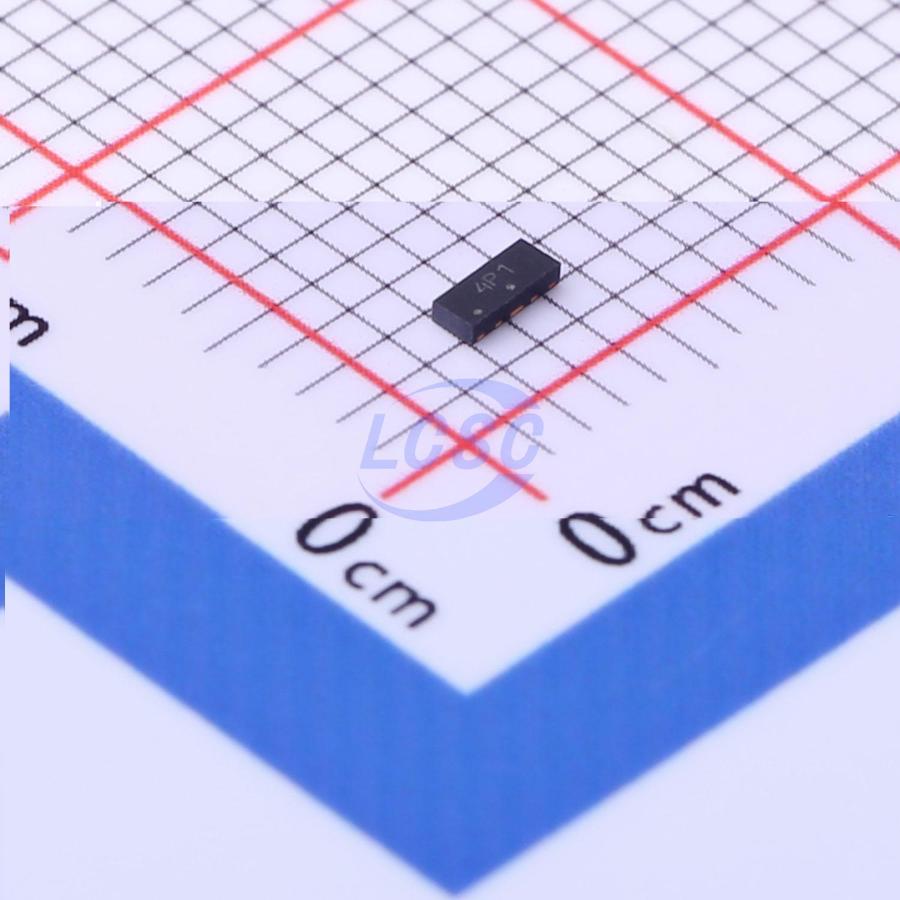

ESDR0524PMUTAG
15VC Clamp ESD DIODE UDFN-10(1x2.5)
ESD DIODE 5VWM 15VC UDFN-10(1x2.5)
- Manufacturer
- onsemi
- Manufacturer part #
- ESDR0524PMUTAG
- Store part #
- C241739
- Package / case
- UDFN-10(1x2.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C241739
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.32 | ₹211.60 |
| 50+ | ₹32.82 | ₹1,641.00 |
| 150+ | ₹28.76 | ₹4,314.00 |
| 500+ | ₹23.68 | ₹11,840.00 |
| 3,000+ | ₹21.42 | ₹64,260.00 |
| 6,000+ | ₹20.07 | ₹1,20,420.00 |
5 × ₹42.32
₹211.60
excl. GST
₹249.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESDR0524PMUTAG
₹211.60 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Voltage - Breakdown
- 5.5V
- Number of Channels
- Four channels
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
The ESDR0524P surge protection is designed to protect high speed data lines from ESD. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines such as HDMI.
Applications
- HDMI
- DVI
- Display Port
- MDDI
- eSATA
Key features
- Low Capacitance (0.3 pF Typical, I/O to I/O)
- ESD Rating of Class 3B (Exceeding 8 kV) per Human Body model and Class C (Exceeding 400 V) per Machine Model
- Protection for the Following IEC Standards: IEC 61000−4−2 ±8 kV Contact
- UL Flammability Rating of 94 V−0
- This is a Pb−Free Device
