onsemiDatasheet (PDF)

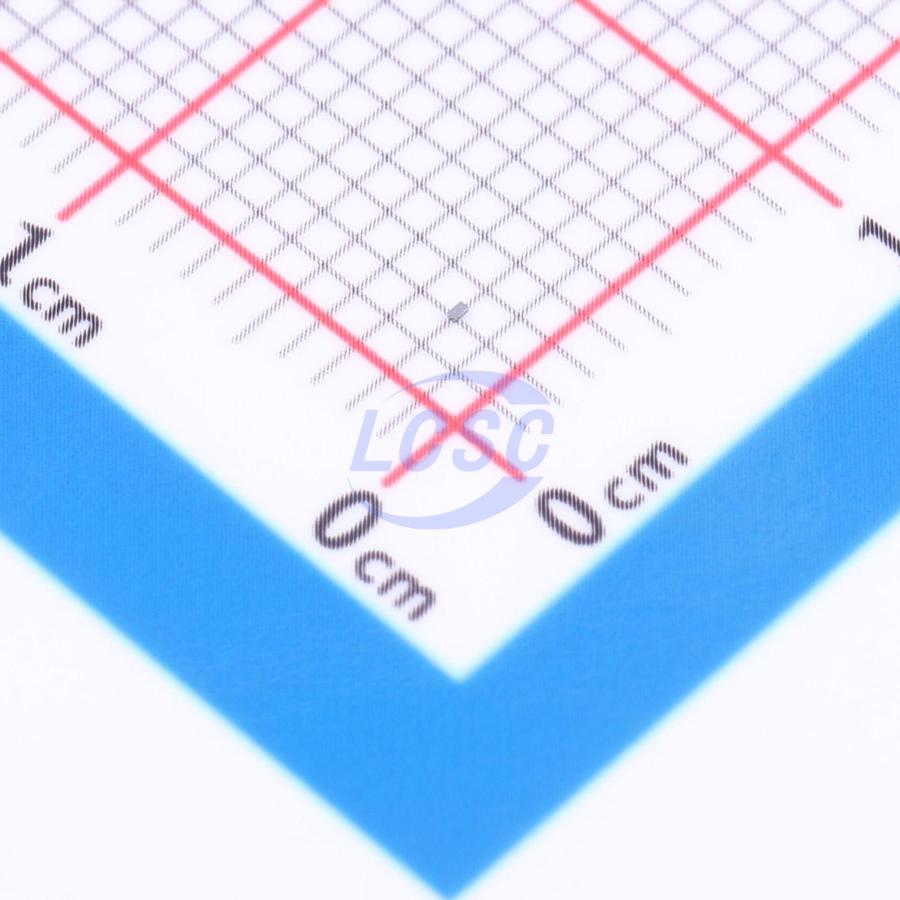

ESDU1052FCT5G
10VC Clamp ESD DIODE 01005
01005ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- ESDU1052FCT5G
- Store part #
- C5208383
- Package / case
- 01005
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
305 in stock
#C5208383
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.47 | ₹72.35 |
| 50+ | ₹14.12 | ₹706.00 |
| 150+ | ₹13.88 | ₹2,082.00 |
| 500+ | ₹13.64 | ₹6,820.00 |
5 × ₹14.47
₹72.35
excl. GST
₹85.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ESDU1052FCT5G
₹72.35 for 5 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 11A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5.9V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Overview
The ESDU1052 is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in smartphone, smart−watch, or many other portable / wearable applications where board space comes at a premium.
Applications
- smartphone
- smart−watch
- portable / wearable applications
Key features
- Low Capacitance (4 pF Max, I/O to GND)
- Small Body Outline Dimensions: 01005 Size: 0.435 x 0.230 mm
- Protection for the Following IEC Standards: IEC 61000−4−2 (Level 4)
- Low ESD Clamping Voltage
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
