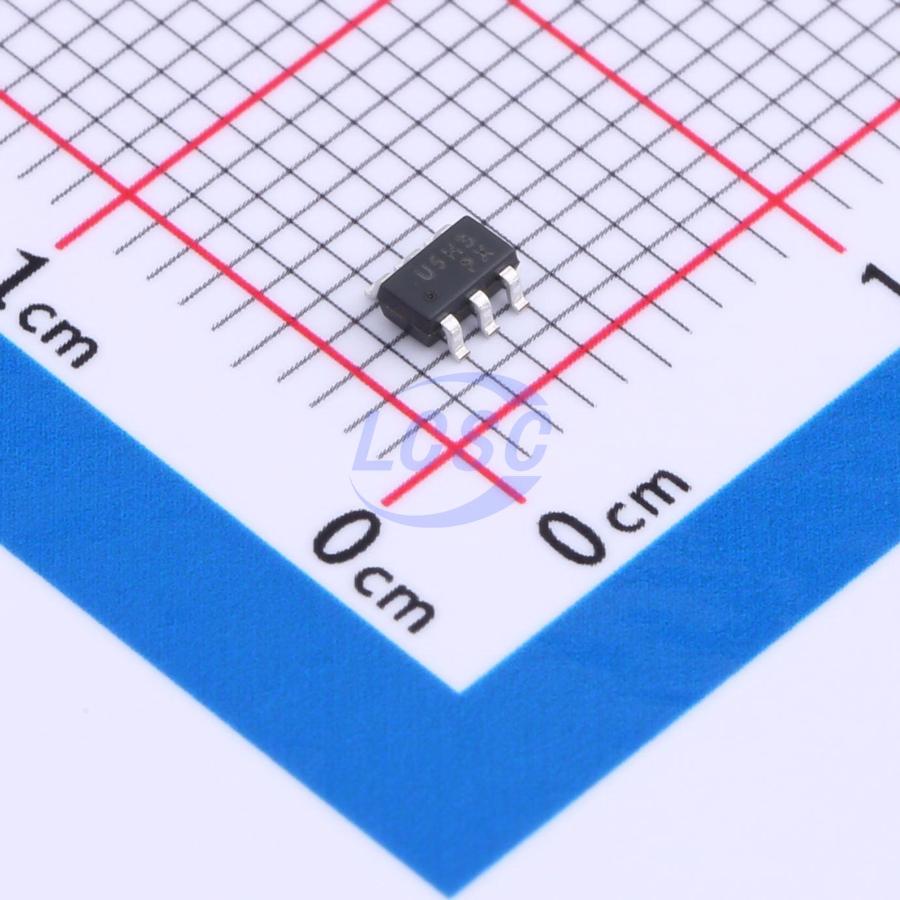

ESDU5V0H3

Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, low capacitance, and high level of ESD protection makes them a flexible solution for applications such as USB3.0 power & data line, Video line, and WAN/LAN equipment. It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc.

Applications

• USB3.0 power & data line protection
• WLAN/LAN equipment
• Mobile phone
• Video line protection
• Microcontroller input Protection
• ISDN S/T Interface
• Other electronics equipments
• Communication systems

Key features

• Uni-directional ESD protection of two lines
• Low capacitance: 0.8pF(Max)
• Low reverse stand−off voltage: 5V
• Low reverse clamping voltage
• Low leakage current
• Excellent package:2.92mm×1.60mm×1.10mm
• Fast response time
• JESD22-A114-B ESD Rating of class 3B per human body model
• IEC 61000-4-2 Level 4 ESD protection
