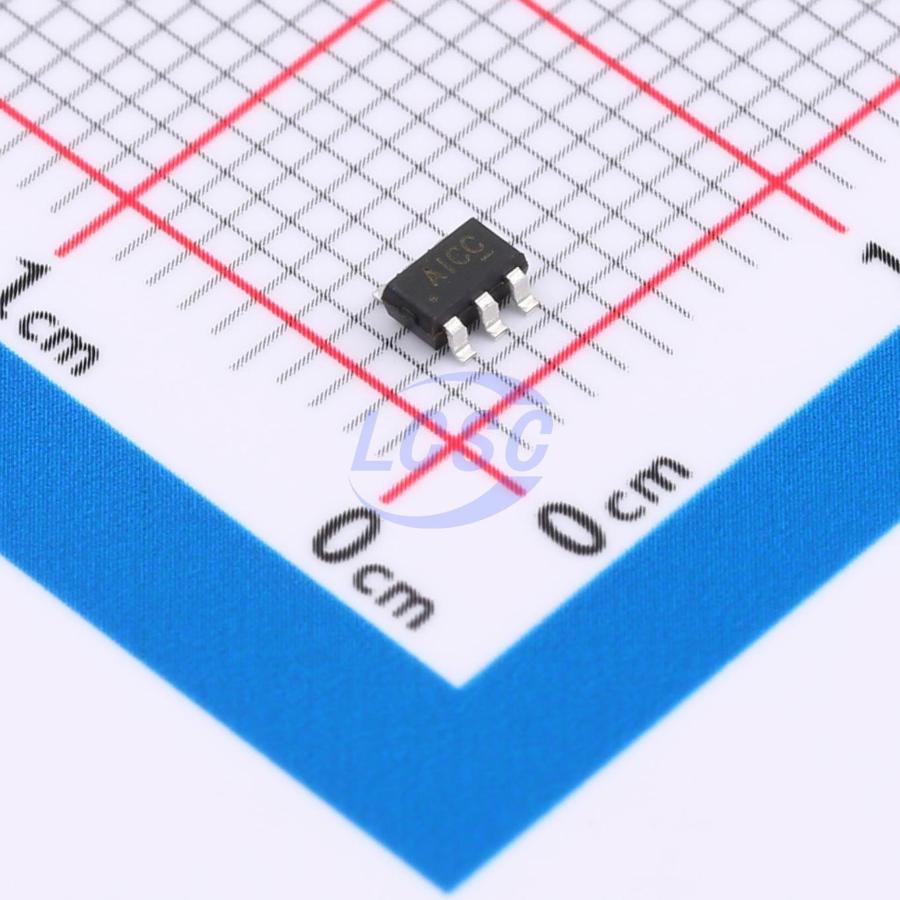

ETA1038S2G
700kHz~1.3MHz Boost Adjustable 1.15V~1.19V 1.5A SOT23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT23-6ROHS CompliantActive
5V/1.5A Output Synchronous Boost Converter
- Manufacturer
- etasolution
- Manufacturer part #
- ETA1038S2G
- Store part #
- C7465552
- Package / case
- SOT23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C7465552
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.29 | ₹106.45 |
| 50+ | ₹16.68 | ₹834.00 |
| 150+ | ₹14.72 | ₹2,208.00 |
| 500+ | ₹12.26 | ₹6,130.00 |
| 3,000+ | ₹11.17 | ₹33,510.00 |
| 6,000+ | ₹10.50 | ₹63,000.00 |
5 × ₹21.29
₹106.45
excl. GST
₹125.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA1038S2G
₹106.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Outputs
- 1
- Frequency - Switching
- 700kHz~1.3MHz
- Function
- Boost
- Features
- Load disconnect;Light load efficient mode;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 1.8V~5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.15V~1.19V
- Output Current
- 1.5A
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
The ETA1038 is a high efficiency synchronous step-up converter that can provide up to 1.5A to a boosted output up to 5V from a low voltage source. Unlike most step-up converter, it incorporates circuits that disconnect the input from output, during shutdown, short-circuit, output current overloading, or other events when output is higher than the input. This eliminates the need for an external MOSFET and its control circuitry to disconnect the input from output, and provides robust output overload protection. A switching frequency of 1MHz minimizes solution footprint by allowing the use of tiny and low profile inductors and ceramic capacitors. An internal synchronous MOSFET provides highest efficiency and with a current mode control that is internally compensated, external parts count is reduced to minimal.
Applications
- USB OTG for MIDs, Smartphones
- Mobile back-up Battery Chargers
- Alkaline, NiCd, and NiMh batteries applications
- USB powered devices
Key features
- Output Disconnect
- Short-circuit Protection
- 5V/1.5A Output Power
- Output to Input Reversed Current Protection
- Up to 96% Efficiency
- 40μA No load IQ and light load PFM Mode
- Internal Synchronous Rectifier
- Current Mode control
- Logic Control Shutdown and Thermal shutdown
- SOT23-6 Package
