etasolutionDatasheet (PDF)

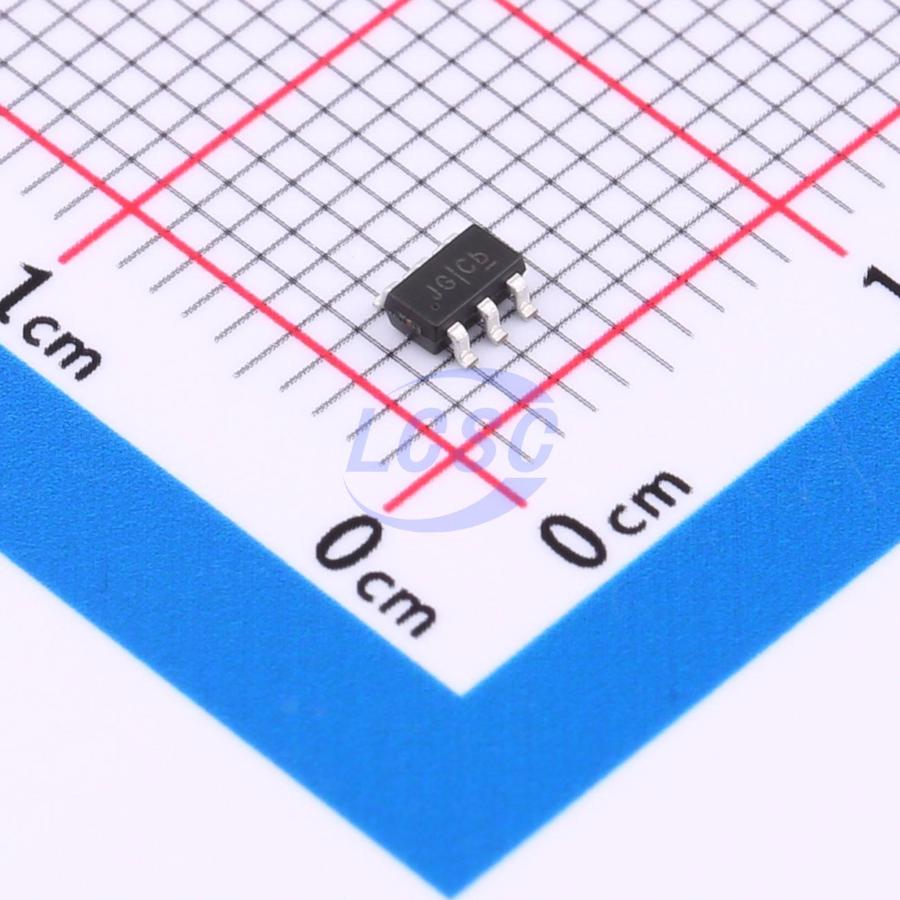

ETA8110S2G
1MHz Step-down type Adjustable 600mV~18V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
18V, 2A Synchronous Step-Down Converter
- Manufacturer
- etasolution
- Manufacturer part #
- ETA8110S2G
- Store part #
- C7419825
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,055 in stock
#C7419825
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.93 | ₹54.65 |
| 50+ | ₹8.72 | ₹436.00 |
| 150+ | ₹7.61 | ₹1,141.50 |
| 500+ | ₹6.77 | ₹3,385.00 |
| 3,000+ | ₹6.11 | ₹18,330.00 |
| 6,000+ | ₹5.78 | ₹34,680.00 |
5 × ₹10.93
₹54.65
excl. GST
₹64.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA8110S2G
₹54.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Number of Outputs
- 1
- Frequency - Switching
- 1MHz
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~18V
- Output Current
- 2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
ETA8110 is a wide input range, high-efficiency and high frequency DC-to-DC step-down switching regulator, capable of delivering up to 2A of output current. It adopts an Adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output varies from light load to heavy load. It compares the sum of the FB voltage and a ripple voltage that mimics the voltage due to the output ESR and capacitance. The constant-on-time timer varies with line to achieve relative constant switching frequency across line.
Applications
- LCD TV
- Set Top Box
- IP CAM
Key features
- Wide Input Voltage Range: 3.5V - 18V
- Adaptive COT Control
- Forced PWM Mode
- Capable of Delivering 2A Output
- Ultra-fast Load Transient Response
- High Efficiency Synchronous Operation
- Low Rdson Internal power FETs
- No External Compensation Needed
- Thermal Shutdown and UVLO
- Available in SOT23-6 Package
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ETA8103S2G#C22362752etasolution · SOT-23-6 | etasolution | SOT-23-6 | 8,775 | ₹13.97 · 8,775 in stock | View |
