etasolution

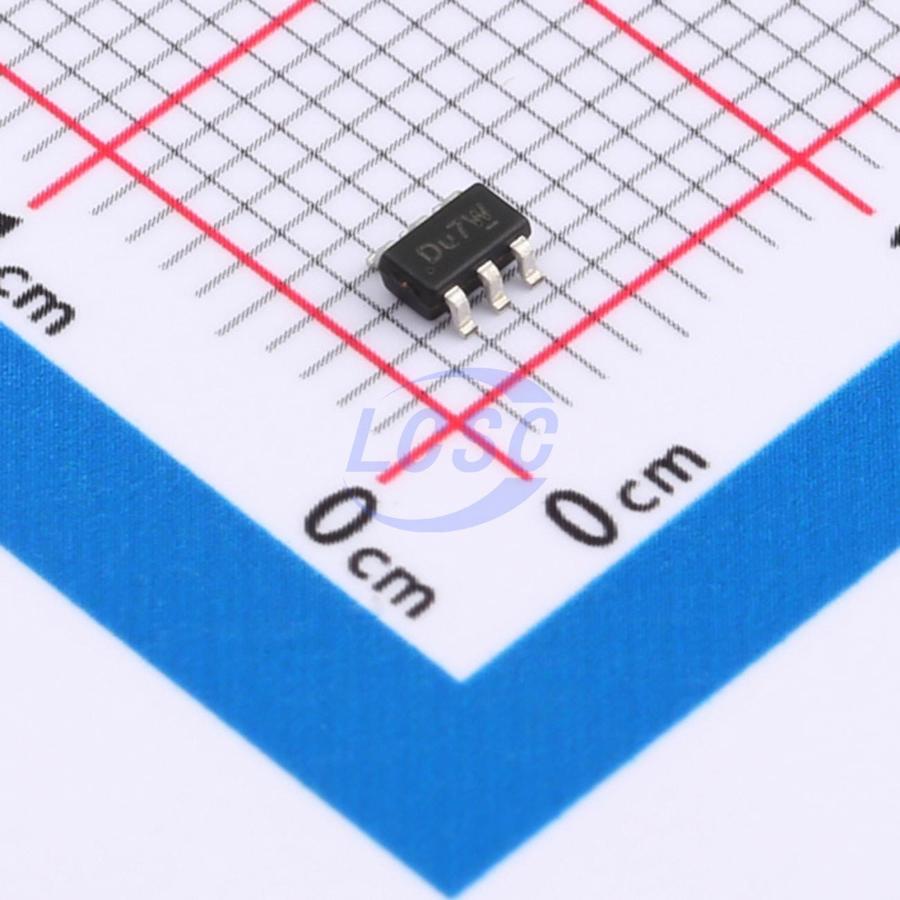

ETA8113S2G

Step-down type 500kHz Adjustable 603mV~5.5V 3A SOT23-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT23-6ROHS CompliantActive

18V Input, 3A Output, High Efficiency Synchronous Step-Down Converter

Manufacturer: etasolution
Manufacturer part #: ETA8113S2G
Store part #: C7435195
Package / case: SOT23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,955 in stock

#C7435195

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹14.59	₹72.95
50+	₹11.63	₹581.50
150+	₹10.15	₹1,522.50
500+	₹9.04	₹4,520.00
3,000+	₹8.15	₹24,450.00
6,000+	₹7.71	₹46,260.00

Quantity (min 5, multiples of 5)

5 × ₹14.59

₹72.95

excl. GST

₹86.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ETA8113S2G

₹72.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Function: Step-down type
Frequency - Switching: 500kHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~18V
Switch tube (built-in/external): Built-in
Output Voltage: 603mV~5.5V
Output Current: 3A
Quiescent Current: 177uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.145 g

Overview

ETA8113 is a wide input range, high-efficiency and high frequency DC-to-DC step-down switching regulator, capable of delivering up to 3A of output current. It adopts an Adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output varies from light load to heavy load. It compares the sum of the FB voltage and a ripple voltage that mimics the voltage due to the output ESR and capacitance. The constant-on-time timer varies with line to achieve relative constant switching frequency across line.
