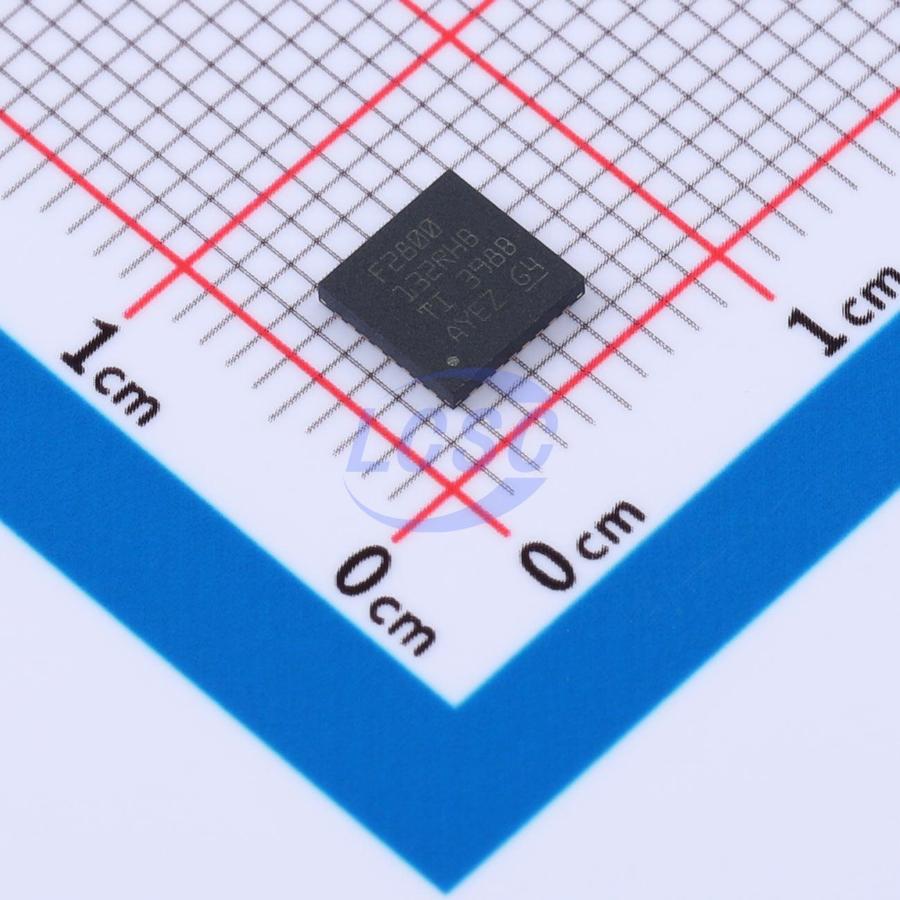

F2800132RHBR

The TMS320F280013x (F280013x) is a member of the C2000™ real-time microcontroller family — a scalable, ultra-low-latency device family designed for power electronics efficiency. The real-time control subsystem is based on TI's 32-bit C28x DSP core, delivering 120 MHz signal processing performance for floating-point or fixed-point code executed from on-chip flash or SRAM. The C28x CPU is further enhanced by a Trigonometric Math Unit (TMU), which accelerates common algorithms critical to real-time control systems. The F280013x supports up to 256KB (128KW) of flash memory, complemented by up to 36KB (18KW) of on-chip SRAM. High-performance analog modules are integrated into the F280013x real-time MCU and tightly coupled with the processing and PWM units to deliver optimal real-time signal chain performance. Fourteen PWM channels enable control of a wide range of power stages — from three-phase inverters to power factor correction and other advanced multi-level power topologies. Interface support is provided through various industry-standard communication ports including SPI, SCI, I2C, and CAN, with multiple pin-mux options for optimal signal routing. To learn more about the features that make C2000 MCUs ideal for real-time control systems, refer to the *C2000™ Real-Time Microcontroller Essentials Guide* and visit the C2000™ Real-Time Control MCU page.

Applications

• Home Appliances:
• Air conditioner outdoor units.
• Washing machines and dryers.
• Robotic lawn mowers.
• Commercial telecom rectifiers.
• Appliance pumps and fans.
• Appliance compressors.
• Cordless handheld garden tools.
• Cordless power tools.
• Lawn mowers.
• Building Automation:
• Automatic doors and gates.
• HVAC motor control.
• Factory Automation & Control:
• Actuators.
• Automated sorting equipment.
• Mobile robot motor controllers.
• Textile machines.

Key features

• Real-Time Processing:
• 120-MHz C28x 32-bit DSP CPU, delivering real-time signal chain performance equivalent to a 240-MHz Arm Cortex-M7-based device (see *Real-Time Benchmarks Showcasing C2000™ Control MCU Optimized Signal Chain Application Note*).
• FPU for more precise mathematical computation; TMU accelerates algorithms critical to real-time control systems.
• On-Chip Memory:
• 256KB (128KW) single-bank flash (ECC-protected).
• 36KB (18KW) RAM (ECC/parity-protected).
• Security:
• JTAGLOCK.
• Zero-pin boot.
• Dual-zone security.
• Clock and System Control:
• Two internal 10-MHz oscillators.
• External resistor support for improved internal oscillator performance (ExtR).
• Crystal oscillator or external clock input.
• Windowed watchdog timer module.
• Clock missing detection circuit.
• Dual clock comparator (DCC).
• 3.3-V I/O Design:
• Internal VREG generation.
• Brown-out reset (BOR) circuit.
• System Peripherals:
• 38 individually programmable multiplexed GPIO pins (11 shared with analog pins).
• 10 digital inputs on analog pins.
• Enhanced peripheral interrupt expansion (ePIE).
• Multiple low-power mode (LPM) support.
• Unique identification (UID) number.
• Communication Peripherals:
• Two I2C interfaces.
• One CAN/DCAN bus port.
• One SPI port.
• Three UART-compatible SCI interfaces.
• Analog System:
• Two 4-MSPS, 12-bit ADCs:
• Up to 21 external channels (11 shared with GPIO).
• Four integrated post-processing blocks (PPB) per ADC.
• One windowed comparator (CMPSS) with 12-bit reference DAC:
• Digital glitch filter.
• COMPDACOUT (11-bit).
• Three windowed comparators (CMPSS_LITE) with 9.5-bit effective reference DAC:
• Digital glitch filter.
• Enhanced Control Peripherals:
• 14 ePWM channels, two with high-resolution capability (150-ps resolution):
• Integrated dead-band support.
• Integrated hardware trip zones (TZs).
• Two enhanced capture (eCAP) modules.
• One enhanced quadrature encoder pulse (eQEP) module supporting CW/CCW operating modes.
• Embedded pattern generator (EPG).
• CMAC key (128-bit) for software AES.
• Package Options:
• 64-pin LQFP [PM suffix].
• 48-pin LQFP [PT suffix].
• 48-pin VQFN [RGZ suffix].
• 32-pin VQFN [RHB suffix].
• Temperature Options:
• Ambient temperature (TA): –40°C ~ 125°C.
