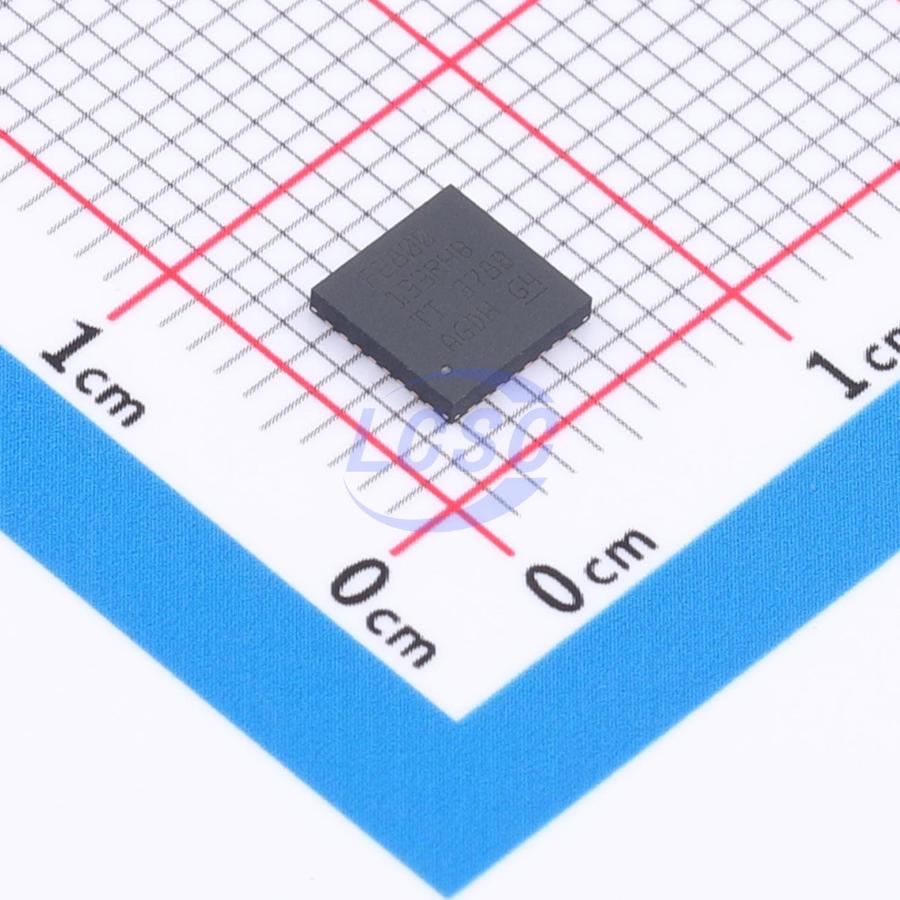

F2800133RHBR

The TMS320F280013x (F280013x) is a member of the C2000™ real-time microcontroller family — scalable, ultra-low-latency devices designed for power electronics efficiency. The real-time control subsystem is based on TI's 32-bit C28x DSP core, delivering 120 MHz signal processing performance for floating-point or fixed-point code running from on-chip flash or SRAM. The C28x CPU is further enhanced by a Trigonometric Math Unit (TMU), accelerating key common algorithms in real-time control systems. The F280013x supports up to 256KB (128KW) of flash memory, complemented by up to 36KB (18KW) of on-chip SRAM. High-performance analog modules are integrated into the F280013x real-time MCU and tightly coupled with the processing and PWM units to deliver optimal real-time signal chain performance. Fourteen PWM channels support control of a wide range of power stages — from three-phase inverters to power factor correction and other advanced multilevel power topologies. Interface support is provided through various industry-standard communication ports including SPI, SCI, I2C, and CAN, with multiple pin-mux options for optimal signal routing. To learn more about the features that make C2000 MCUs ideal for real-time control systems, refer to the *C2000™ Real-Time Microcontroller Hands-On Developer's Guide* and visit the C2000™ Real-Time Control MCU page.

Applications

• Home Appliances:
• Air conditioner outdoor units
• Washing machines and dryers
• Robotic lawn mowers
• Commercial telecom rectifiers
• Appliance pumps and fans
• Appliance compressors
• Cordless handheld garden tools
• Cordless power tools
• Lawn mowers
• Mains-powered tools
• Range hoods
• Dishwashers

Key features

• Real-Time Processing:
• 120 MHz C28x 32-bit DSP CPU, delivering real-time signal chain performance equivalent to a 240 MHz Arm Cortex-M7-based device (see *Real-Time Benchmarks for Demonstrating C2000™ Control MCU Optimized Signal Chains Application Note*)
• FPU for more precise mathematical calculations; TMU accelerates key algorithms in real-time control systems
• On-Chip Memory:
• 256KB (128KW) single-bank flash (with ECC protection)
• 36KB (18KW) RAM (with ECC/parity protection)
• Security:
• JTAG lock
• Zero-pin boot
• Dual-zone security
• Clock and System Control:
• Two internal 10 MHz oscillators
• External resistor support to improve internal oscillator performance (ExtR)
• Crystal oscillator or external clock input
• Windowed watchdog timer module
• Clock loss detection circuit
• Dual clock comparator (DCC)
• 3.3 V I/O Design:
• Internal VREG generation
• Brownout reset (BOR) circuit
• System Peripherals:
• 38 individually programmable multiplexed GPIO pins (11 shared with analog pins)
• 10 digital inputs on analog pins
• Enhanced peripheral interrupt expansion (ePIE)
• Multiple low-power mode (LPM) support
• Unique identification (UID) number
• Communication Peripherals:
• Two I2C interfaces
• One CAN/DCAN bus port
• One SPI port
• Three UART-compatible SCI interfaces
• Analog System:
• Two 4 MSPS, 12-bit ADCs:
• Up to 21 external channels (11 shared with GPIO)
• Four integrated post-processing blocks (PPB) per ADC
• One windowed comparator (CMPSS) with 12-bit reference DAC:
• Digital glitch filter
• COMPDACOUT (11-bit)
• Three windowed comparators (CMPSS_LITE) with 9.5-bit effective reference DAC:
• Digital glitch filter
• Enhanced Control Peripherals:
• 14 ePWM channels, two with high-resolution capability (150 ps resolution):
• Integrated dead-band support
• Integrated hardware trip zone (TZ)
• Two enhanced capture (eCAP) modules
• One enhanced quadrature encoder pulse (eQEP) module supporting CW/CCW operation modes
• Embedded pattern generator (EPG)
• CMAC key (128-bit) for software AES
• Package Options:
• 64-pin LQFP [PM suffix]
• 48-pin LQFP [PT suffix]
• 48-pin VQFN [RGZ suffix]
• 32-pin VQFN [RHB suffix]
• Temperature Options:
• Ambient temperature (TA): –40°C ~ 125°C
