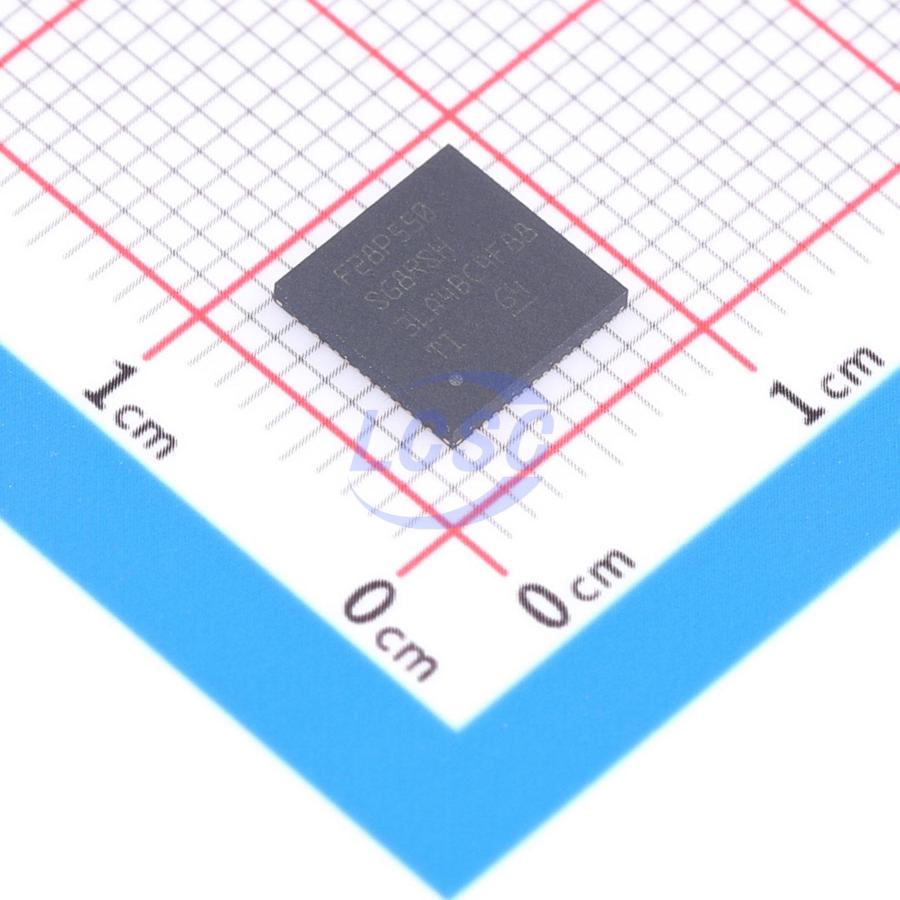

F28P550SG8RSHR

VQFN-56(7x7) Microcontrollers RoHS

VQFN-56(7x7)ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: F28P550SG8RSHR
Store part #: C46538814
Package / case: VQFN-56(7x7)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C46538814

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹1,444.42	₹1,444.42
10+	₹1,305.23	₹13,052.30
30+	₹1,254.50	₹37,635.00
100+	₹1,154.33	₹1,15,433.00

Quantity (min 1)

1 × ₹1,444.42

₹1,444.42

excl. GST

₹1,704.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

F28P550SG8RSHR

₹1,444.42 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.42 g

Overview

Applications

Electrical appliances

Key features

Real-Time Processing:
150MHz C28x 32-bit DSP CPU
Equivalent to 300MHz Arm® Cortex®-M7-based devices in real-time signal chain performance
IEEE 754 single-precision floating-point unit (FPU32)
Trigonometric Math Unit (TMU)
Supports nonlinear PID (NLPID) control with integrated CRC engine and instructions (VCRC)
Programmable Control Law Accelerator (CLA):
150MHz
Equivalent to 200MHz Arm® Cortex®-M7-based devices in real-time signal chain performance
IEEE 754 single-precision floating-point instructions
Executes code independently of the main CPU
On-Chip Memory:
1088KB ECC-protected flash across five independent banks: four 256KB banks and one 64KB bank, suitable for LFU/bootloader/data
8KB OTP (one-time programmable flash memory)
133KB RAM (ECC/parity protected)
Security:
Secure boot
JTAG lock
AES accelerator
UID number
Clock and System Control:
Two internal 10MHz oscillators
Crystal oscillator or external clock input
Windowed watchdog timer module
Missing clock detection circuit
Dual Clock Comparator (DCC)
3.3V I/O Support:
Internal VREG generation enables single-supply design
Brown-out reset (BOR) circuit
5V fail-safe and tolerance on 4 GPIOs, supporting PMBus/I2C
Configurable 1.35V VIH on 4 GPIOs
System Peripherals:
6-channel DMA controller
91 individually programmable multiplexed GPIO pins (22 shared with analog)
17 digital inputs on analog pins
Enhanced Peripheral Interrupt Expansion (ePIE)
Multiple low-power mode (LPM) support
Communication Peripherals:
1 PMBus interface with ultra-fast mode — 1MHz SCL, 5V/3.3V/1.35V VIH supported on select pins
2 I2C ports
2 CANFD/MCAN bus ports with flexible data rate, 4KB message RAM per MCAN module independent of system memory, RAM reusable for CPU data variables when MCAN is not in use
1 USB 2.0 MAC + PHY
2 SPI ports
3 UART-compatible SCI ports
1 UART-compatible LIN interface
FSI with one transmitter and one receiver, up to 200Mbps
Analog System:
Five 3.9MSPS 12-bit ADCs with up to 39 external channels (including one gpdac output), four integrated post-processing blocks (PPB) per ADC
Four windowed comparators (CMPSS) with 12-bit reference DAC, digital noise filter, low DAC output-to-pin function supported on CMPSS1
1 12-bit buffered DAC output
Three PGAs with unity gain support, inverting and non-inverting gain modes, programmable output filtering
Enhanced Control Peripherals:
24 ePWM channels including 12 with 150ps resolution high-resolution capability, integrated dead-band support, integrated hardware Trip Zone (TZ)
2 eCAP modules
Three eQEP modules supporting CW/CCW operation modes
Embedded Pattern Generator (EPG)
Configurable Logic Block (CLB):
2 logic blocks
Enhances existing peripheral functionality
Supports position manager solutions
TinyEngine™ NPU:
Highly optimized for deep convolutional neural networks (CNN)
Variable weight and data lengths: 8-bit and 4-bit weights, 8-bit and 4-bit data
600MOPS (8bWx8bD) and 1200MOPS (4bWx8bD) at 75MHz
Up to 10× NN inference performance improvement over software-only approaches
No direct coding required; TI AI tools generate firmware libraries
Edge AI models focused on real-time control
Live Firmware Update (LFU) support
Diagnostic features: Memory Power-On Self-Test (MPOST) support
Functional Safety-Compliant Type 1: Developed for functional safety applications; documentation available for ISO 26262 and IEC 61508 system design; system functionality meets ASIL D and SIL 3, hardware integrity meets ASIL B and SIL 2
Safety-Related Certification: ISO 26262 certified up to ASIL B by TÜV SÜD
Multiple package options: 128-pin TQFP [suffix PDT]; 100-pin LQFP [suffix PZ]; 80-pin TQFP [suffix PNA]; 64-pin LQFP [suffix PM]; 56-pin VQFN [suffix RSH]
Junction temperature range: -40°C to 150°C
