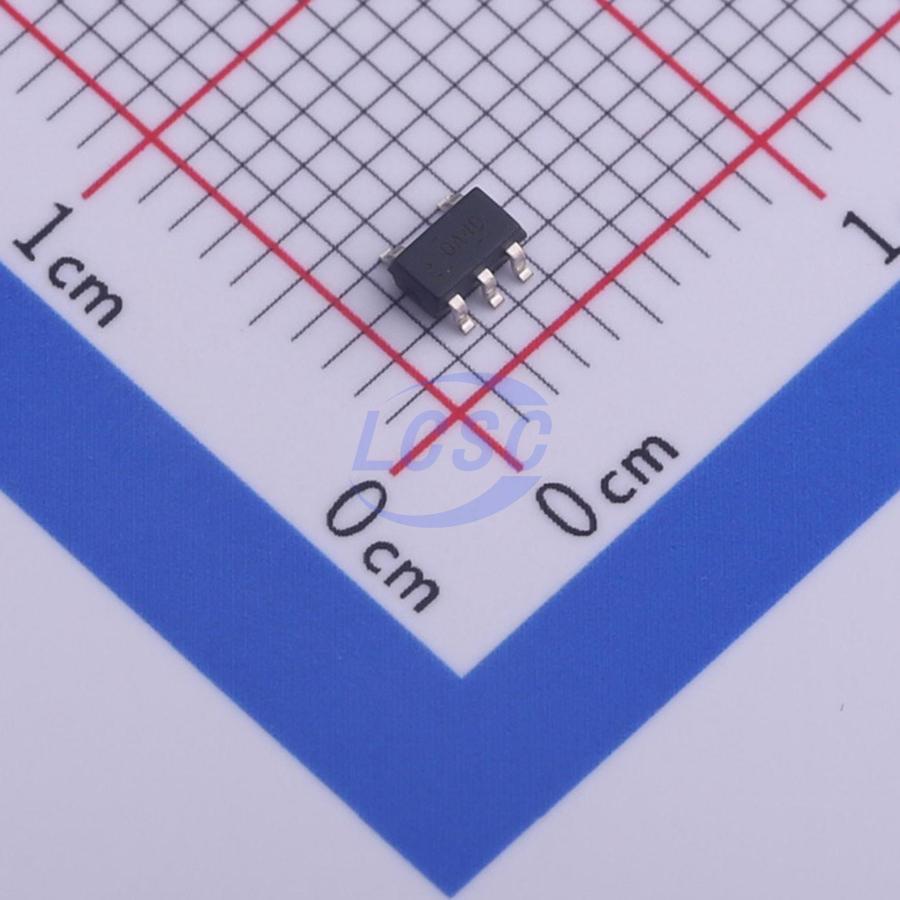

FAN4174IS5X

33mA 1 8mV 3V/us 73dB 5pA 200uA 3.7MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Single and Dual, Rail-to-Rail VO, CMOS Amplifier

Manufacturer: onsemi
Manufacturer part #: FAN4174IS5X
Store part #: C457635
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

297 in stock

#C457635

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹102.90	₹102.90
10+	₹86.78	₹867.80
30+	₹78.71	₹2,361.30
100+	₹70.63	₹7,063.00
500+	₹65.85	₹32,925.00
1,000+	₹63.45	₹63,450.00

Quantity (min 1)

1 × ₹102.90

₹102.90

excl. GST

₹121.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

FAN4174IS5X

₹102.90 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 33mA
Number of Channels: 1
Vos - Input Offset Voltage: 8mV
Slew Rate: 3V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 73dB
Ib - Input Bias Current: 5pA
Input Offset Voltage Drift(Vos TC): 2.9uV/℃
Quiescent Current: 200uA
Gain Bandwidth Product: 3.7MHz
Features: Built-in compensation
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.041 g

Overview

The FAN4174 (single) and FAN4274 (dual) are voltage feedback amplifiers with CMOS inputs that consume only 200 μA of supply current per amplifier, while providing ±33 mA of output short-circuit current. These amplifiers are designed to operate 5 V supplies. The common mode voltage range extends beyond the negative and positive rails. The FAN4174 and FAN4274 are designed on a CMOS process and provide 3.7 MHz of bandwidth and 3 V / μs of slew rate at a supply voltage of 5 V. These amplifiers operate and are reliable over a wide temperature range of -40°C to +125°C. The combination of extended temperature operation, low power, rail-to-rail performance, low-voltage operation, and a tiny package optimize this amplifier family for use in many industrial, general-purpose, and battery-powered applications.

Applications

Motor Control
Portable / Battery-powered Applications
PCMCIA, USB
Mobile Communications, Cellular Phones, Pagers
Notebooks and PDAs
Sensor Interface
A/D Buffer
Active Filters
Signal Conditioning
Portable Test Instruments

Key features

200 μA Supply Current per Amplifier
3.7 MHz Bandwidth
Output Swing to Within 10 mv of Either Rail
Input Voltage Range Exceeds the Rails
3 V / μs Slew Rate
25 nV / √Hz Input Voltage Noise
Replaces KM4170 and KM4270
FAN4174 Competes with OPA340 and TLV2461; Available in a SOT23-5 Package FAN4274 Competes with OPA2340 and TLV2462; Available in MSOP-8 Package Fully Specified at +5 V Supplies

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TSV911AIYLT#C2059110ST · SOT-23-5	ST	SOT-23-5	58	₹114.31 · 58 in stock	View
TSV911ILT(UMW)#C22373388UMW · SOT-23-5	UMW	SOT-23-5	2,730	₹33.06 · 2,730 in stock	View
TSV911AILT(UMW)#C22373389UMW · SOT-23-5	UMW	SOT-23-5	3,425	₹32.27 · 3,425 in stock	View
TSV911AILT#C361052ST · SOT-23-5	ST	SOT-23-5	2,475	₹68.37 · 2,475 in stock	View
TSV991ILT#C157443ST · SOT-23-5	ST	SOT-23-5	3,008	₹103.56 · 3,008 in stock	View
