onsemi

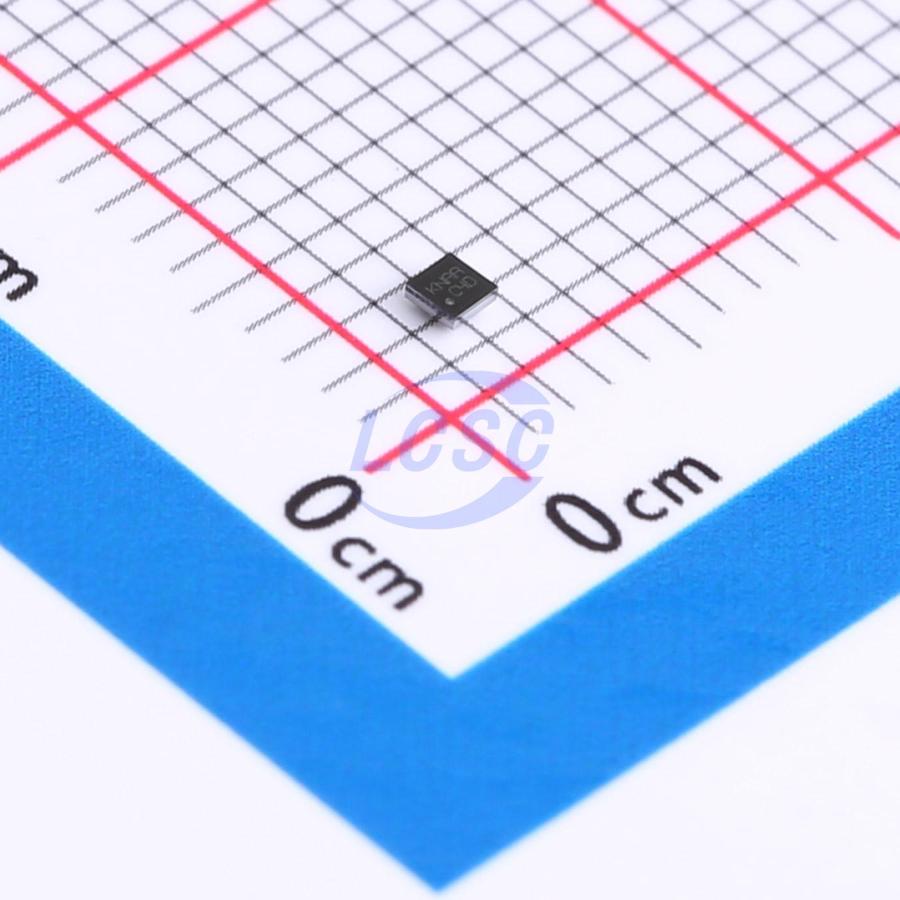

FAN48610BUC33X

2.5MHz Boost Fixed 3.3V 1.5A WLCSP-9(1.2x1.2) Voltage Regulators - DC DC Switching Regulators RoHS

WLCSP-9(1.2x1.2)ROHS3 CompliantDiscontinued

Low-Power Synchronous Boost Regulator

Manufacturer: onsemi
Manufacturer part #: FAN48610BUC33X
Store part #: C890709
Package / case: WLCSP-9(1.2x1.2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

74 in stock

#C890709

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹76.63	₹76.63
10+	₹75.11	₹751.10
30+	₹73.80	₹2,214.00
100+	₹72.71	₹7,271.00

Quantity (min 1)

1 × ₹76.63

₹76.63

excl. GST

₹90.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

FAN48610BUC33X

₹76.63 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 2.5MHz
Function: Boost
Number of Outputs: 1
Features: Load disconnect;Overcurrent Protection
Output Type: Fixed
Topology: Boost
Operating Voltage: 2.5V~4.8V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 1.5A
Quiescent Current: 125uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Discontinued
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.03 g

Overview

The FAN48610 is a low-power boost regulator designed to provide a minimum voltage-regulated rail from a standard single-cell Li-Ion battery and advanced battery chemistries. Even below the minimum system battery voltage, the device maintains the output voltage regulation for a minimum output load current of 1.0 A. The combination of built-in power transistors, synchronous rectification, and low supply current suit the FAN48610 for battery-powered applications. The FAN48610 is available in a 9-bump, 0.4 mm pitch, Wafer-Level Chip-Scale Package (WLCSP).

Applications

Class-D Audio Amplifier and USB OTG Supply
Boost for Low-Voltage Li-Ion Batteries
Smart Phones, Tablets, Portable Devices, Wearables

Key features

Input Voltage Range: 2.5 V to 4.8 V
Output Voltages Range: 3.0 V to 5.0 V
IoUT ≥ 1 A at ΔV_OUT = 5.0 V, V_IN ≥ 2.5 V
IoUT ≥ 1.5 A at ΔV_OUT = 5.0 V, V_IN ≥ 3.0 V
Up to 94% Efficient
Internal Synchronous Rectification
Soft-Start with True Load Disconnect
Short-Circuit Protection
9-Bump, 1.215 mm×1.215 mm, 0.4 mm Pitch WLCSP
Three External Components: 2016 0.47 μH Inductor, 0603 Case Size Input / Output Capacitors
Total Application Board Solution Size: <11 mm²
