onsemiDatasheet (PDF)

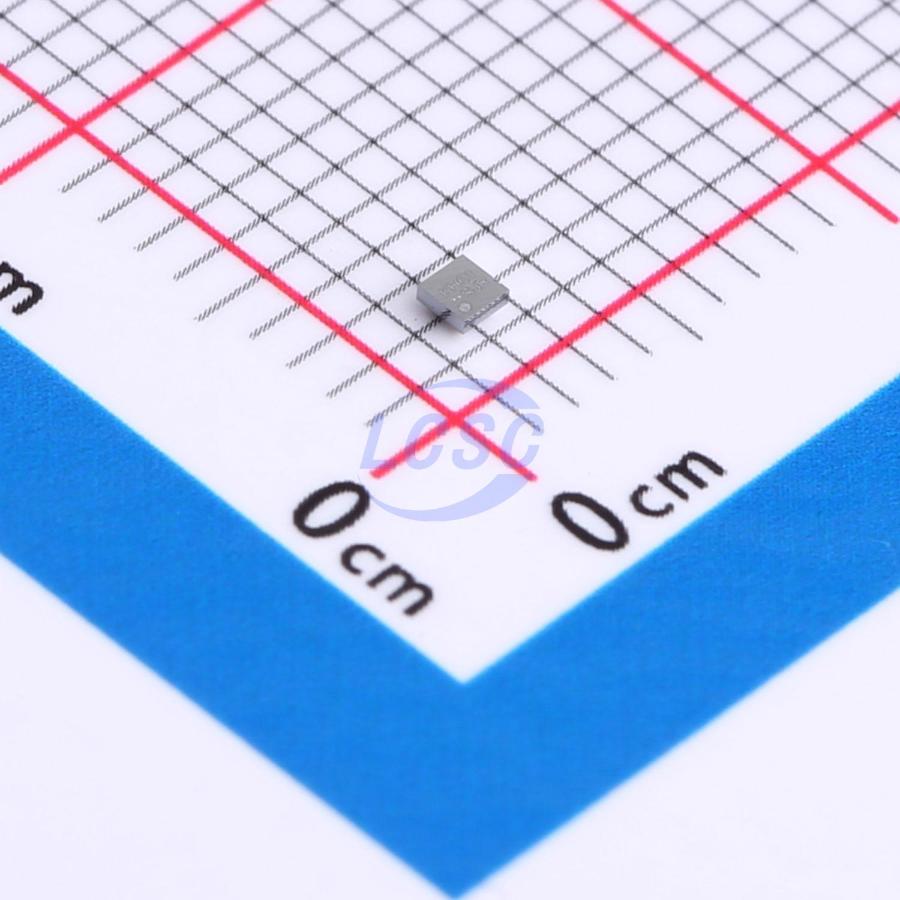

FAN48611UC53X
2.5MHz Boost Fixed 5.25V 350mA WLCSP-9(1.2x1.2) Voltage Regulators - DC DC Switching Regulators RoHS
WLCSP-9(1.2x1.2)ROHS3 CompliantDiscontinued
2.5 MHz, Fixed-Output, Synchronous Tiny Boost Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- FAN48611UC53X
- Store part #
- C890713
- Package / case
- WLCSP-9(1.2x1.2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C890713
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹133.95 | ₹133.95 |
| 10+ | ₹108.95 | ₹1,089.50 |
| 30+ | ₹96.33 | ₹2,889.90 |
| 100+ | ₹83.94 | ₹8,394.00 |
| 500+ | ₹76.55 | ₹38,275.00 |
| 1,000+ | ₹72.63 | ₹72,630.00 |
1 × ₹133.95
₹133.95
excl. GST
₹158.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FAN48611UC53X
₹133.95 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 2.5MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Load disconnect;Overcurrent Protection
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 2.7V~4.8V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 5.25V
- Output Current
- 350mA
- Quiescent Current
- 92uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The FAN48611 is a low-power boost regulator designed to provide a minimum voltage regulated rail from a standard single-cell Li-Ion battery and advanced battery chemistries. Even below the minimum system battery voltage, the device maintains output voltage regulation. The combination of built-in power transistors, synchronous rectification, and low supply current suit the FAN48611 for battery-powered applications. The FAN48611 is available in a L-shaped bump, 0.4 mm pitch, Wafer-Level Chip-Scale Package (WLCSP).
Applications
- Class-D Audio Amplifier
- USB OTG Supply Boost for Low-Voltage Li-Ion Batteries
- Smart Phones
- Tablets
- Portable Devices
- Wearables
Key features
- Input Voltage Range: 2.7 V to 4.8 V
- Output Voltage: 5.25 V
- 350 mA Maximum Output Current
- Internal Synchronous Rectification
- True Load Disconnect
- Short-Circuit Protection
- 9-Bump, 1.215 mm x 1.215 mm, 0.4 mm Pitch, WLCSP
- Three External Components: 2012 1 μH Inductor, 0402 Case Size Input / Output Capacitors
