onsemi

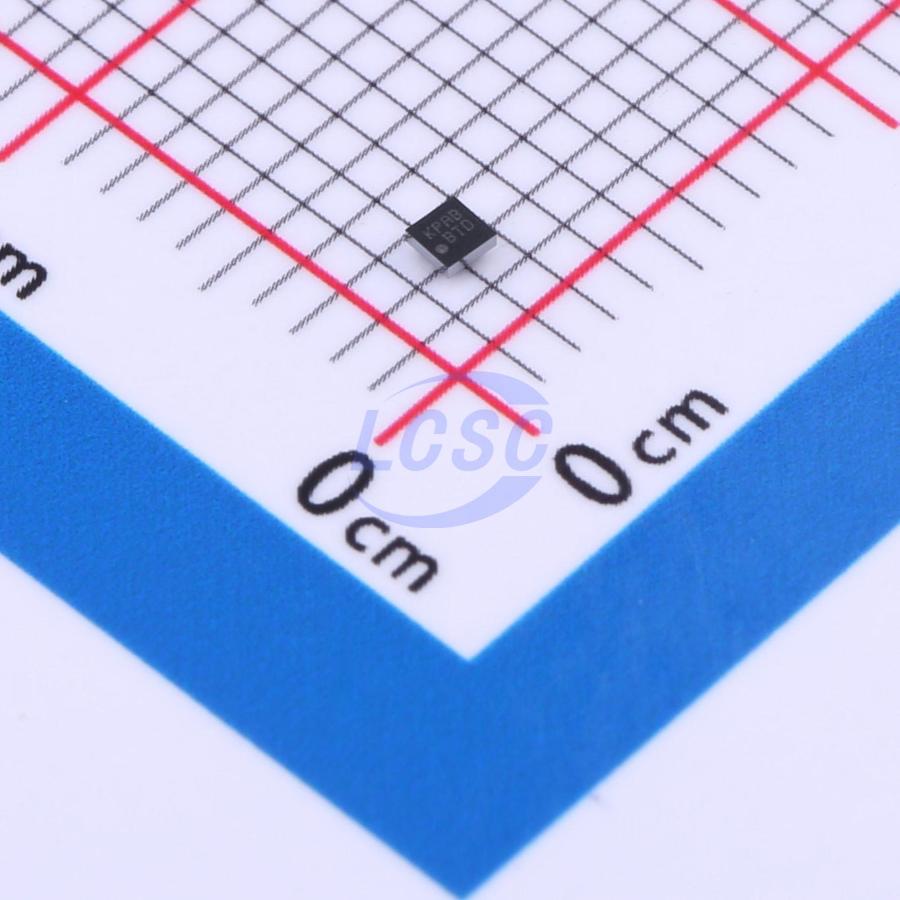

FAN48619UC50X

1.8MHz~2.8MHz Boost Fixed 1A 5V BGA-9 Voltage Regulators - DC DC Switching Regulators RoHS

BGA-9ROHS3 CompliantActive

Fixed-Output Synchronous Boost Regulator

Manufacturer: onsemi
Manufacturer part #: FAN48619UC50X
Store part #: C890719
Package / case: BGA-9
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C890719

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹194.56	₹194.56
10+	₹161.63	₹1,616.30
30+	₹143.53	₹4,305.90
100+	₹123.21	₹12,321.00
500+	₹114.06	₹57,030.00
1,000+	₹109.99	₹1,09,990.00

Quantity (min 1)

1 × ₹194.56

₹194.56

excl. GST

₹229.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

FAN48619UC50X

₹194.56 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.8MHz~2.8MHz
Function: Boost
Number of Outputs: 1
Features: Load disconnect;Overcurrent Protection
Output Type: Fixed
Topology: Boost
Operating Voltage: 2.7V~4.5V
Switch tube (built-in/external): Built-in
Output Current: 1A
Output Voltage: 5V
Quiescent Current: 95uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.042 g

Overview

The FAN48619 is a low-power PWM only boost regulator designed to provide a minimum voltage-regulated rail from a standard single-cell Li-Ion battery and advanced battery chemistries. Even below the minimum system battery voltage, the device maintains the output voltage regulation for an output load current of 1000 mA. The combination of built-in power transistors, synchronous rectification, and low supply current suit the FAN48619 for battery-powered applications. The FAN48619 is available in a 9-bump, 0.4 mm pitch, (1.215× 1.215 mm) Wafer-Level Chip-Scale Package (WLCSP).

Applications

Class-D Audio Amplifier
Boost for Low-Voltage Li-Ion Batteries
Smart Phones, Tablets, Portable Devices
RF Applications
NFC Applications

Key features

Input Voltage Range: 2.7 V to 4.5 V
Output Voltage: 5.0 V
1000 mA Max. Load Capability
PWM Only
Up to 97% Efficient
Forced Pass-Through Operation via EN Pin
Internal Synchronous Rectification
True Load Disconnect
Short-Circuit Protection
Three External Components: 2016 (Metric) 0.47 μH Inductor, 0402 Case Size Input / Output Capacitor
