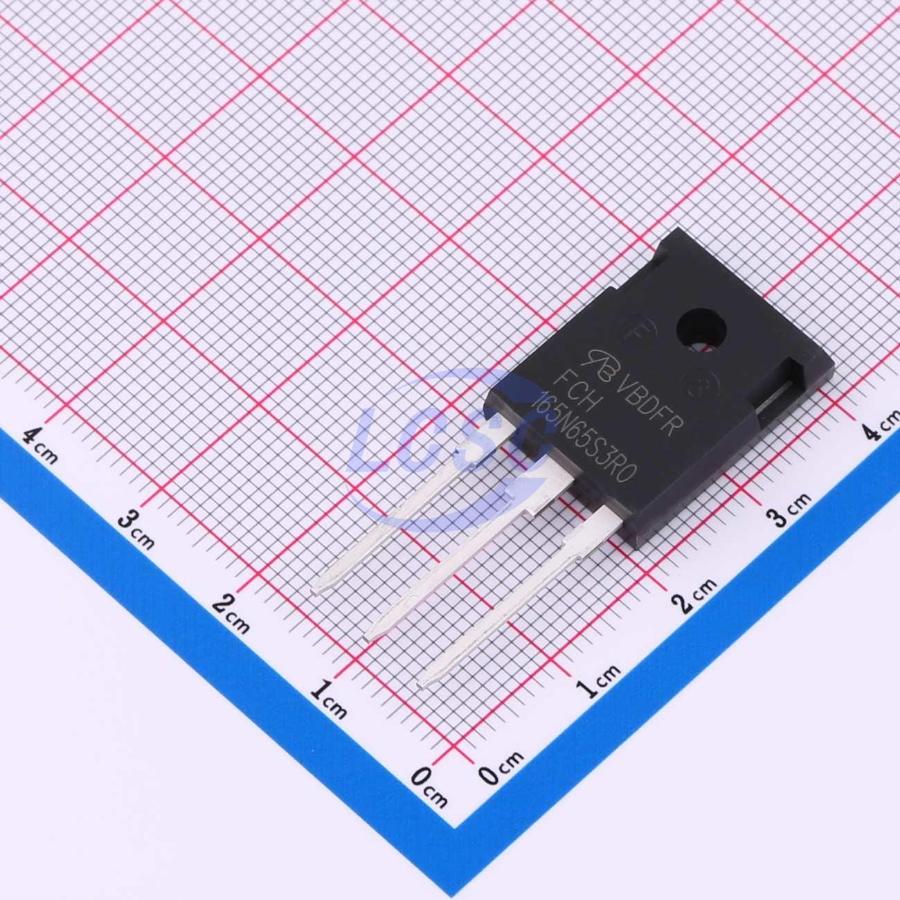

FCH165N65S3R0-VB
N-Channel 650V 20A 200W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 650V 20A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FCH165N65S3R0-VB
- Store part #
- C22357250
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357250
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹348.90 | ₹348.90 |
| 10+ | ₹295.33 | ₹2,953.30 |
| 30+ | ₹261.73 | ₹7,851.90 |
| 90+ | ₹227.28 | ₹20,455.20 |
| 600+ | ₹211.73 | ₹1,27,038.00 |
| 900+ | ₹205.01 | ₹1,84,509.00 |
1 × ₹348.90
₹348.90
excl. GST
₹411.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
FCH165N65S3R0-VB
₹348.90 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 63pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 330pF
- Pd - Power Dissipation
- 200W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 160mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.3 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FCH150N65F-F155-VB#C22357248VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 28 | ₹453.89 · 28 in stock | View |
 | STF21N65M5-VB#C22357249VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹348.90 · 5 in stock | View |
 | VBP165R20SE#C46527849VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹506.14 · 5 in stock | View |
 | IPW65R080CFD-VB#C22357245VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹729.73 · 5 in stock | View |
 | NTHL082N65S3F-VB#C22357246VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹729.73 · 5 in stock | View |
