HXY MOSFETDatasheet (PDF)

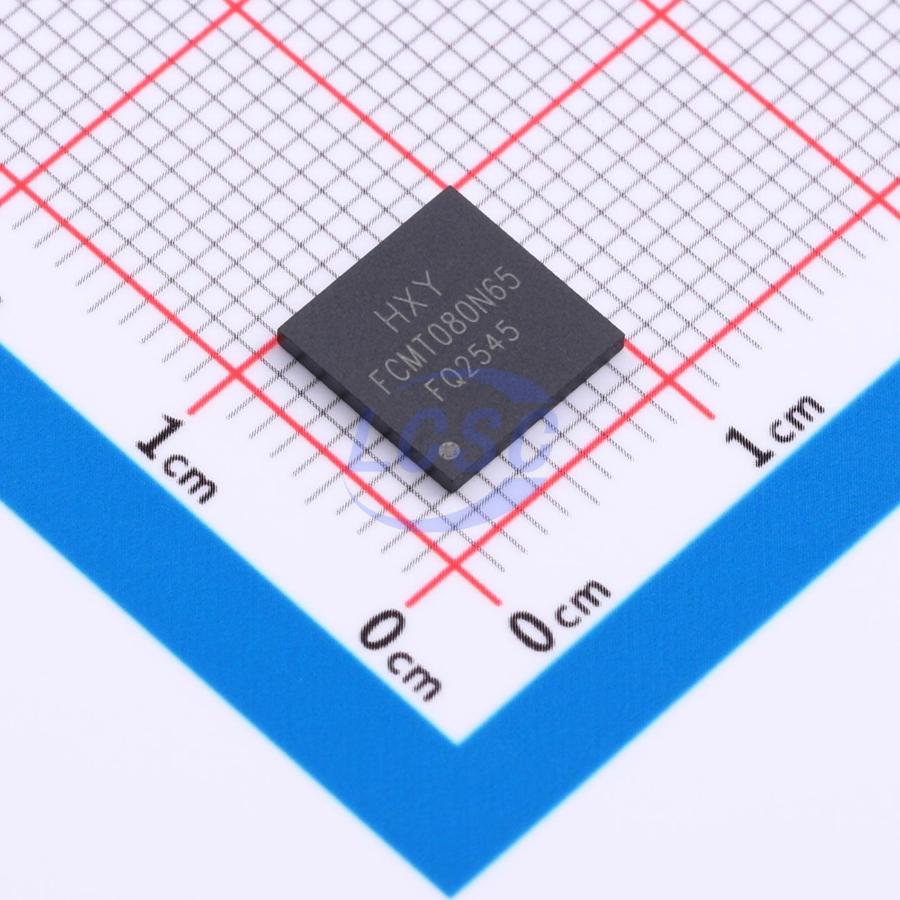

FCMT080N65S3-HXY
650V 37A 142W 75mΩ@18V 1 N-channel N-Channel DFN-5B(8x8) Single FETs, MOSFETs
DFN-5B(8x8)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- FCMT080N65S3-HXY
- Store part #
- C53133909
- Package / case
- DFN-5B(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C53133909
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹526.33 | ₹526.33 |
| 10+ | ₹451.50 | ₹4,515.00 |
| 30+ | ₹407.13 | ₹12,213.90 |
| 100+ | ₹362.32 | ₹36,232.00 |
| 500+ | ₹341.52 | ₹1,70,760.00 |
| 1,000+ | ₹332.31 | ₹3,32,310.00 |
1 × ₹526.33
₹526.33
excl. GST
₹621.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FCMT080N65S3-HXY
₹526.33 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 37A
- Output Capacitance(Coss)
- 60pF
- Ciss-Input Capacitance
- 721pF
- Pd - Power Dissipation
- 142W
- Reverse Transfer Capacitance (Crss)
- 4.9pF
- RDS(on)
- 75mΩ@18V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 32nC
- Gate Threshold Voltage (Vgs(th))
- 2.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.53 g
Overview
Applications
- Switch-mode power supplies
- Renewable energy
- On-board chargers
- High-voltage DC/DC converters
Key features
- Wide bandgap SiC MOSFET technology
- Low on-resistance with high blocking voltage
- Low capacitance for high-speed switching
- Low reverse recovery charge
- Halogen-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FCMT099N65S3-HXY#C53134143HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 8 | ₹482.97 · 8 in stock | View |
 | IPL65R099C7AUMA1-HXY#C53134144HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 9 | ₹343.66 · 9 in stock | View |
 | STL38N65M5-HXY#C53134148HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 8 | ₹319.98 · 8 in stock | View |
 | NTMT110N65S3HF-HXY#C53134149HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 4 | ₹314.44 · 4 in stock | View |
 | IPL65R115CFD7AUMA1-HXY#C53134150HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 9 | ₹319.98 · 9 in stock | View |
