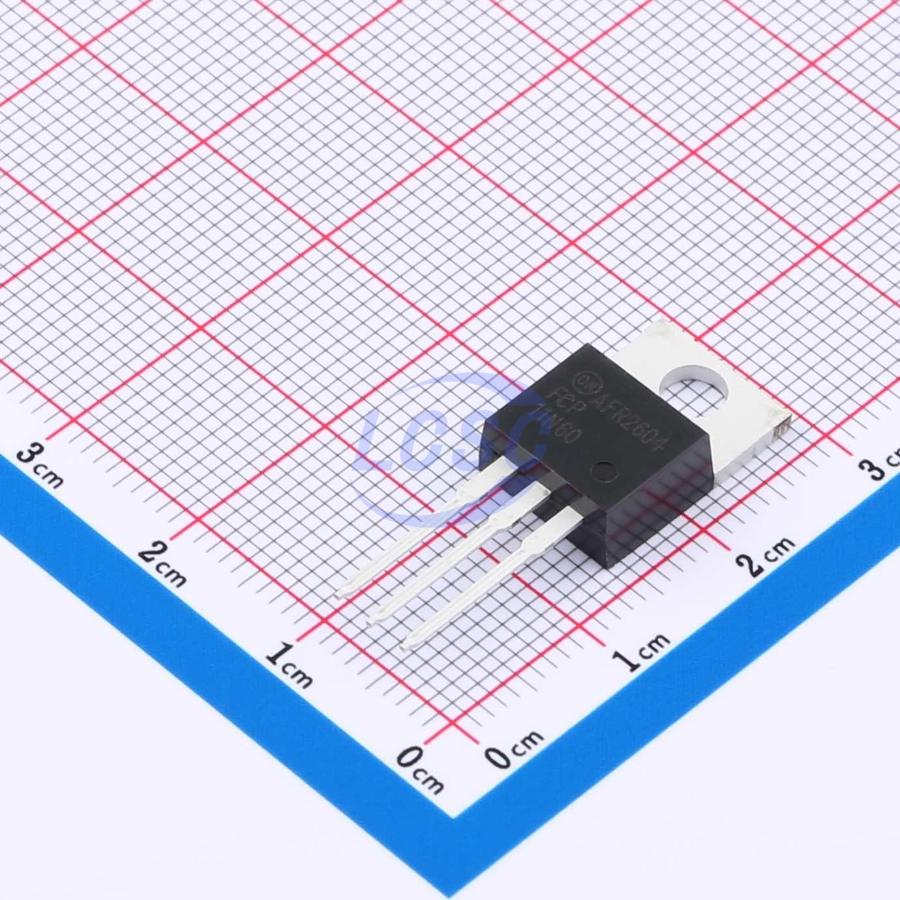

FCP11N60
N-Channel 650V 11A 125W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 650V 11A TO-220
- Manufacturer
- onsemi
- Manufacturer part #
- FCP11N60
- Store part #
- C242277
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C242277
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹344.54 | ₹344.54 |
| 10+ | ₹337.01 | ₹3,370.10 |
| 50+ | ₹331.98 | ₹16,599.00 |
| 100+ | ₹326.95 | ₹32,695.00 |
1 × ₹344.54
₹344.54
excl. GST
₹406.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FCP11N60
₹344.54 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 870pF
- Ciss-Input Capacitance
- 1.49nF
- Pd - Power Dissipation
- 125W
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 11A
- Reverse Transfer Capacitance (Crss)
- 82pF
- RDS(on)
- 380mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 52nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.608 g
Overview
SuperFET MOSFET is Fairchild Semiconductor’s first generation of high voltage super-junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on-resistance and lower gate charge performance. This technology is tailored to minimize conduction loss, provide superior switching performance, dv/dt rate and higher avalanche energy. Consequently, SuperFET MOSFET is very suitable for the switching power applications such as PFC, server/telecom power, FPD TV power, ATX power and industrial power applications.
Applications
- PFC
- server/telecom power
- FPD TV power
- ATX power
- industrial power applications
Key features
- 650V @Tj = 150°C
- Typ. Rds(on)=0.32Ω
- Ultra low gate charge (typ. Qg = 40nC)
- Low effective output capacitance (typ. Coss.eff=95pF)
- 100% avalanche tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPP11N60C3XKSA1#C672222Infineon · TO-220-3 | Infineon | TO-220-3 | 68 | ₹398.96 · 68 in stock | View |
 | STP20N65M5#C2688572ST · TO-220 | ST | TO-220 | 850 | ₹310.02 · 850 in stock | View |
 | VBM17R11SE#C46527848VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹308.91 · 10 in stock | View |
 | STP15N80K5#C2688578ST · TO-220 | ST | TO-220 | 35 | ₹229.25 · 35 in stock | View |
 | IPP65R099CFD7AAKSA1#C3278792Infineon · TO-220-3 | Infineon | TO-220-3 | 1 | ₹547.59 · 1 in stock | View |
