onsemiDatasheet (PDF)

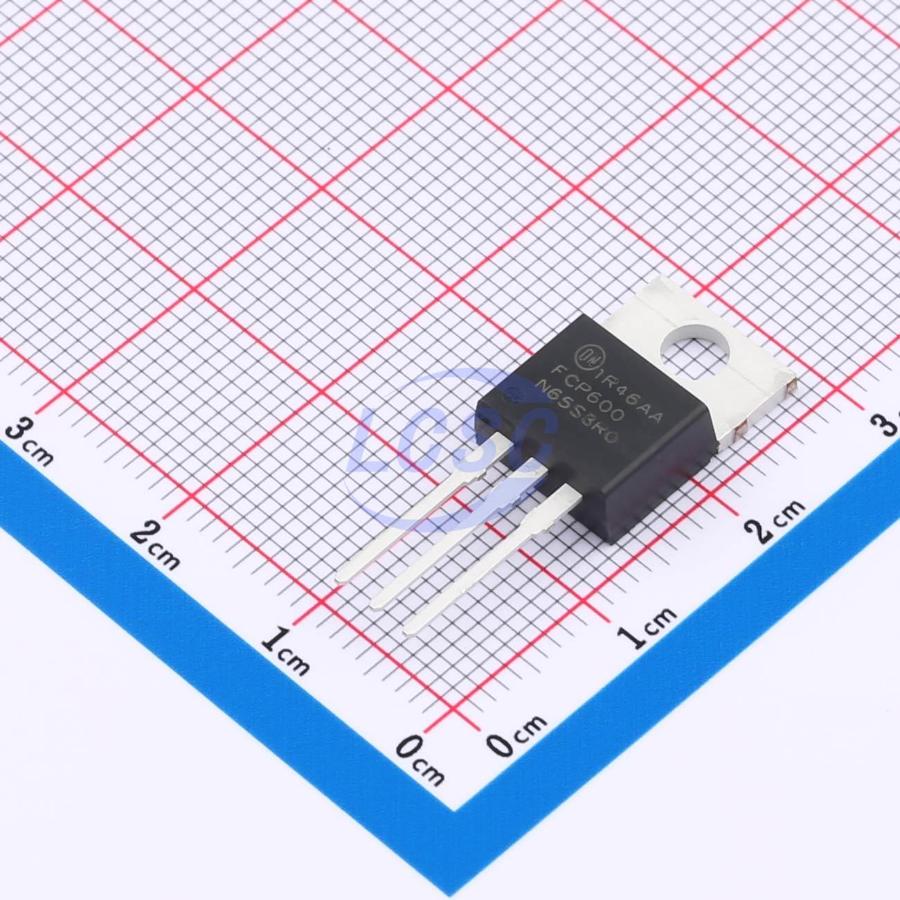

FCP600N65S3R0
N-Channel 650V 6A Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 650V 6A TO-220
- Manufacturer
- onsemi
- Manufacturer part #
- FCP600N65S3R0
- Store part #
- C605002
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C605002
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹249.85 | ₹249.85 |
| 10+ | ₹244.53 | ₹2,445.30 |
| 50+ | ₹240.84 | ₹12,042.00 |
| 100+ | ₹237.36 | ₹23,736.00 |
1 × ₹249.85
₹249.85
excl. GST
₹294.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FCP600N65S3R0
₹249.85 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 10pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 465pF
- Pd - Power Dissipation
- 54W
- RDS(on)
- 493mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.2 g
Overview
SUPERFET III MOSFET is ON Semiconductor’s brand−new high voltage super−junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on−resistance and lower gate charge performance. This advanced technology is tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate. Consequently, SUPERFET III MOSFET Easy drive series helps manage EMI issues and allows for easier design implementation.
Applications
- Computing / Display Power Supplies
- Telecom / Server Power Supplies
- Industrial Power Supplies
- Lighting / Charger / Adapter
Key features
- 700 V (TJ = 150°C)
- Typ. RDS(on) = 493 mΩ
- Ultra Low Gate Charge (Typ. Qg = 11 nC)
- Low Effective Output Capacitance (Typ. C0ss(eff.) = 127 pF)
- 100% Avalanche Tested
- These Devices are Pb −Free and are RoHS Compliant
