onsemiDatasheet (PDF)

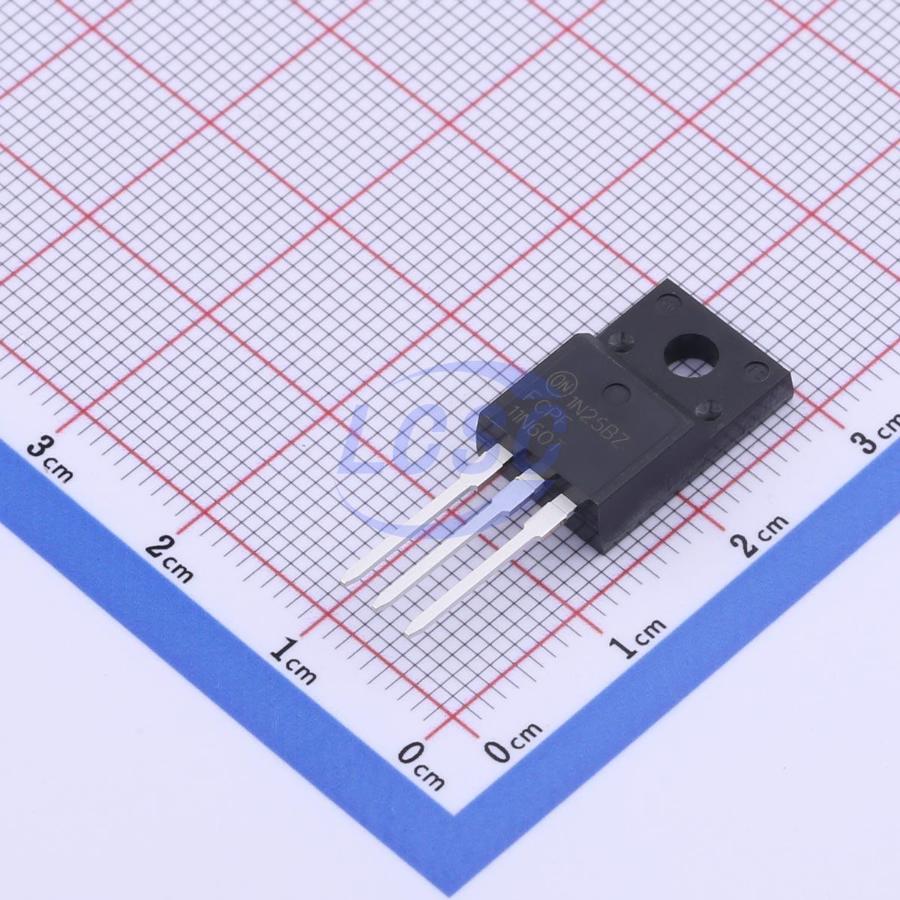

FCPF11N60T
36W 650V 11A 320mΩ@10V 1 N-channel N-Channel TO-220F-3 Single FETs, MOSFETs RoHS
TO-220F-3ROHS3 CompliantActive
MOSFET N-CH 650V 11A TO-220F-3
- Manufacturer
- onsemi
- Manufacturer part #
- FCPF11N60T
- Store part #
- C899122
- Package / case
- TO-220F-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C899122
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹743.55 | ₹743.55 |
| 10+ | ₹667.24 | ₹6,672.40 |
| 50+ | ₹599.52 | ₹29,976.00 |
| 100+ | ₹553.65 | ₹55,365.00 |
| 500+ | ₹532.43 | ₹2,66,215.00 |
| 1,000+ | ₹523.00 | ₹5,23,000.00 |
1 × ₹743.55
₹743.55
excl. GST
₹877.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FCPF11N60T
₹743.55 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 671pF
- Ciss-Input Capacitance
- 1.49nF
- Pd - Power Dissipation
- 36W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 11A
- Reverse Transfer Capacitance (Crss)
- 82pF
- RDS(on)
- 320mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 52nC@480V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
SuperFET MOSFETs are the first-generation high-voltage super junction (SJ) MOSFET product series, utilizing charge balance technology to deliver excellent low on-resistance and low gate charge performance. This technology is designed to minimize conduction losses while providing superior switching performance, dv/dt rate, and higher avalanche energy. As a result, SuperFET MOSFETs are well suited for switching power supply applications such as power factor correction (PFC), server/telecom power supplies, flat panel TV power supplies, ATX power supplies, and industrial power applications.
Applications
- Power Factor Correction (PFC)
- Server/Telecom Power Supplies
- Flat Panel TV Power Supplies
- ATX Power Supplies
- Industrial Power Applications
Key features
- 650 V @ Tj = 150°C
- Typical Rds(on) = 0.32Ω
- Ultra-low gate charge (typical Qg = 40nC)
- Low effective output capacitance (typical Coss.eff = 95pF)
- 100% avalanche tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FCPF11N60#C899121onsemi · TO-220F | onsemi | TO-220F | 1 | ₹499.08 · 1 in stock | View |
 | MMF65R190PTH#C193394MagnaChip Semicon · TO-220F | MagnaChip Semicon | TO-220F | 171 | ₹159.33 · 171 in stock | View |
 | MMFT65R195PTH#C51902190MagnaChip Semicon · TO-220FT | MagnaChip Semicon | TO-220FT | 292 | ₹116.15 · 292 in stock | View |
 | BMF80N250C1#C55805906Bestirpower · TO-220F | Bestirpower | TO-220F | 300 | ₹187.35 · 300 in stock | View |
| BMF65R190#C50338767BORN · TO-220F | BORN | TO-220F | 1,035 | ₹134.95 · 1,035 in stock | View | |
