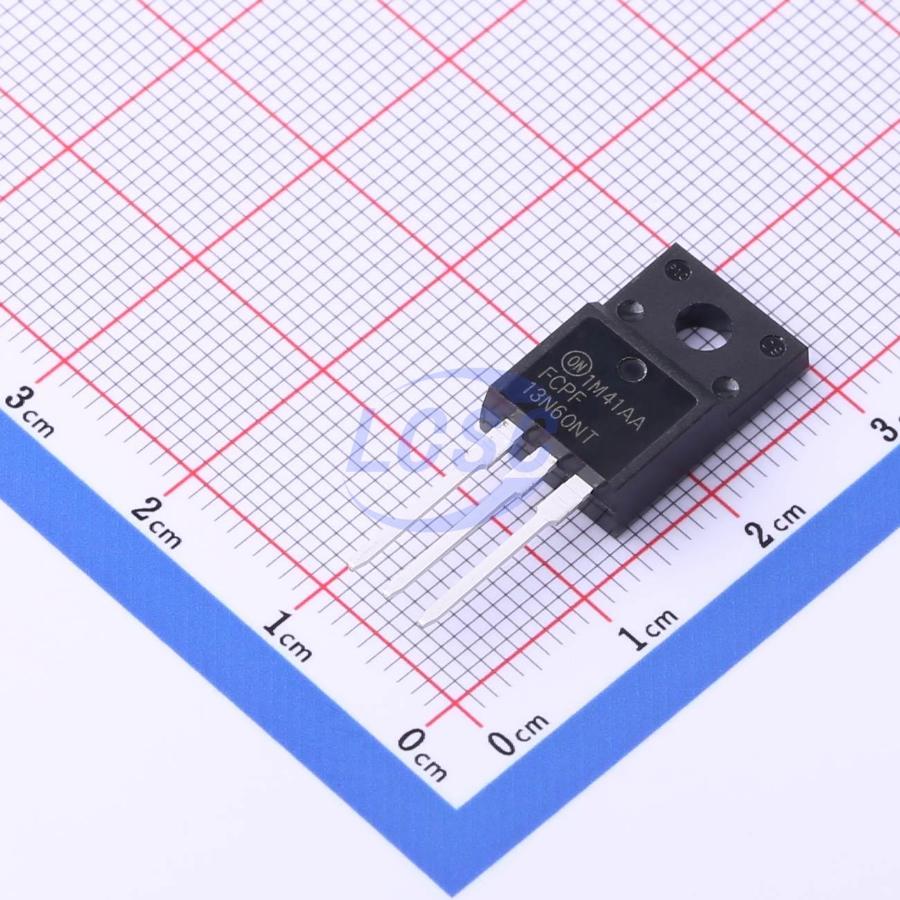

FCPF13N60NT
N-Channel 600V 13A 116W Through Hole TO-220F
TO-220FROHS3 CompliantActive
MOSFET N-CH 600V 13A TO-220F
- Manufacturer
- onsemi
- Manufacturer part #
- FCPF13N60NT
- Store part #
- C899123
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
644 in stock
#C899123
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.55 | ₹86.55 |
| 10+ | ₹76.09 | ₹760.90 |
| 50+ | ₹70.86 | ₹3,543.00 |
| 100+ | ₹65.85 | ₹6,585.00 |
| 500+ | ₹62.79 | ₹31,395.00 |
| 1,000+ | ₹61.27 | ₹61,270.00 |
1 × ₹86.55
₹86.55
excl. GST
₹102.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FCPF13N60NT
₹86.55 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 50pF
- Ciss-Input Capacitance
- 1.765nF
- Pd - Power Dissipation
- 116W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 13A
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 220mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30.4nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.19 g
Overview
The SupreMOS® MOSFET is next generation of high voltage super-junction (SJ) technology employing a deep trench filling process that differentiates it from the conventional SJ MOSFETs. This advanced technology and precise process control provides lowest Rsp on-resistance, superior switching performance and ruggedness. SupreMOS MOSFET is suitable for high frequency switching power converter applications such as PFC, server/telecom power, FPD TV power, ATX power and industrial power applications.
Applications
- LCD/LED/PDP TV
- Lighting
- Solar Inverter
- AC-DC Power Supply
Key features
- RDS(on)=220 mΩ (Typ.), ID=6.5 A
- Ultra Low Gate Charge (Typ. Qg=30.4 nC)
- Low Effective Output Capacitance (Typ. Coss(eff.)=145 pF)
- 100% Avalanche Tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTPF190N65S3H#C2902185onsemi · TO-220F | onsemi | TO-220F | 3 | ₹619.24 · 3 in stock | View |
 | MJF20N65#C34373730MIRACLE POWER · TO-220F | MIRACLE POWER | TO-220F | 55 | ₹117.52 · 55 in stock | View |
 | STF24N65M2#C2970244ST · TO-220FPAB-3 | ST | TO-220FPAB-3 | 31 | ₹178.14 · 31 in stock | View |
 | YFW65R190AF#C41382596YFW · TO-220F | YFW | TO-220F | 49 | ₹208.58 · 49 in stock | View |
 | SIHA21N60EF-E3#C467920VISHAY · TO-220F-3 | VISHAY | TO-220F-3 | 3 | ₹826.94 · 3 in stock | View |
