onsemiDatasheet (PDF)

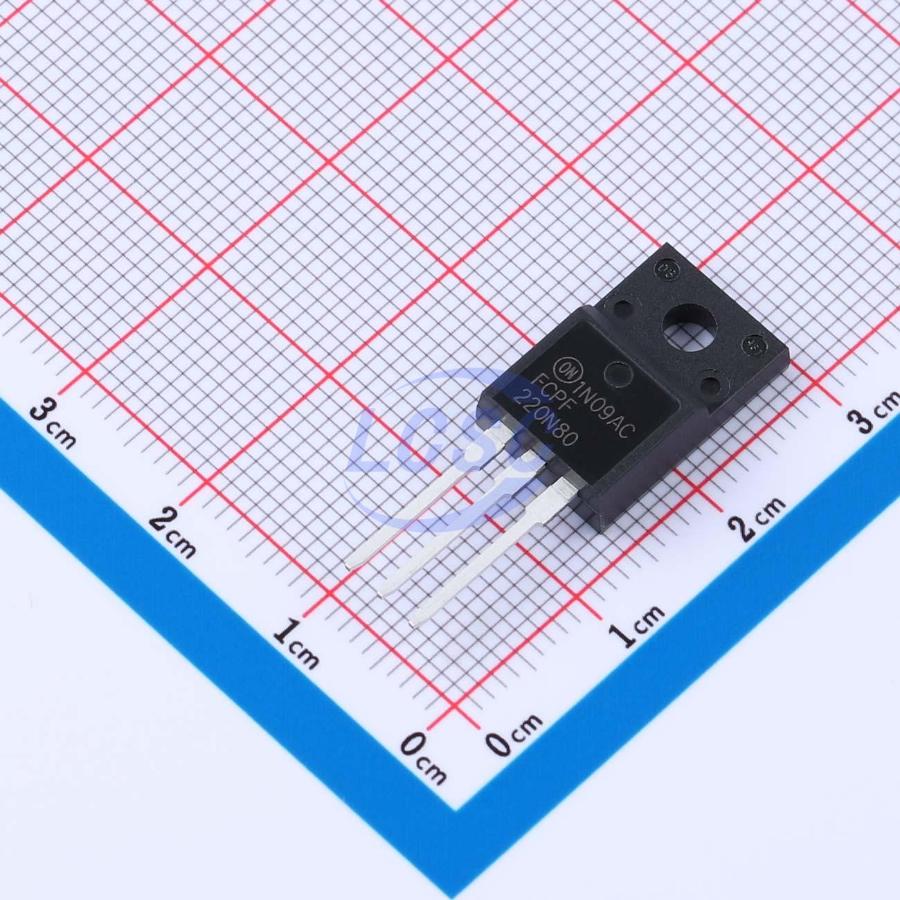

FCPF220N80
44W 800V 23A 188mΩ@10V 1 N-channel N-Channel TO-220F Single FETs, MOSFETs RoHS
TO-220FROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FCPF220N80
- Store part #
- C899131
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C899131
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹541.98 | ₹541.98 |
| 10+ | ₹529.00 | ₹5,290.00 |
| 30+ | ₹520.57 | ₹15,617.10 |
| 100+ | ₹511.92 | ₹51,192.00 |
1 × ₹541.98
₹541.98
excl. GST
₹639.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per tube
FCPF220N80
₹541.98 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 100pF
- Ciss-Input Capacitance
- 3.43nF
- Pd - Power Dissipation
- 44W
- Drain to Source Voltage
- 800V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 23A
- Reverse Transfer Capacitance (Crss)
- 0.3pF
- RDS(on)
- 188mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 78nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 1,000 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.685 g
Overview
SuperFET II MOSFETs are a new family of high-voltage super-junction (SJ) MOSFETs utilizing charge balance technology to achieve excellent low on-resistance and low gate charge performance. This technology is designed to minimize conduction losses while delivering superior switching performance, dv/dt rates, and higher avalanche energy. As a result, SuperFET II MOSFETs are ideal for switched-mode power supply applications such as power factor correction (PFC), server/telecom power supplies, flat panel TV power supplies, ATX power supplies, and industrial power applications.
Applications
- AC-DC Power Supply - LED Lighting
Key features
- Typical R<sub>DS(on)</sub> = 188 mΩ
- Ultra-low gate charge (typical Q<sub>g</sub> = 78 nC)
- Low output stored energy (typical 7.5 μJ @ 400 V)
- Low effective output capacitance (typical C<sub>oss(eff.)</sub> = 304 pF)
- 100% avalanche tested
- RoHS compliant
- Improved ESD capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RSE80R180F#C49317658REASUNOS · TO-220F | REASUNOS | TO-220F | 86 | ₹235.80 · 86 in stock | View |
 | MS25N100HCT1#C55042298MASPOWER · TO-220F | MASPOWER | TO-220F | 37 | ₹495.69 · 37 in stock | View |
 | TPA80R180M#C691655WUXI UNIGROUP MICRO · TO-220F-3 | WUXI UNIGROUP MICRO | TO-220F-3 | On request | ₹349.50 · 0 in stock | View |
| VBMB18R25S#C42412780VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | On request | ₹1,058.49 · 0 in stock | View | |
 | WML25N80M3#C7498796Wayon · TO-220F | Wayon | TO-220F | On request | ₹247.57 · 0 in stock | View |
