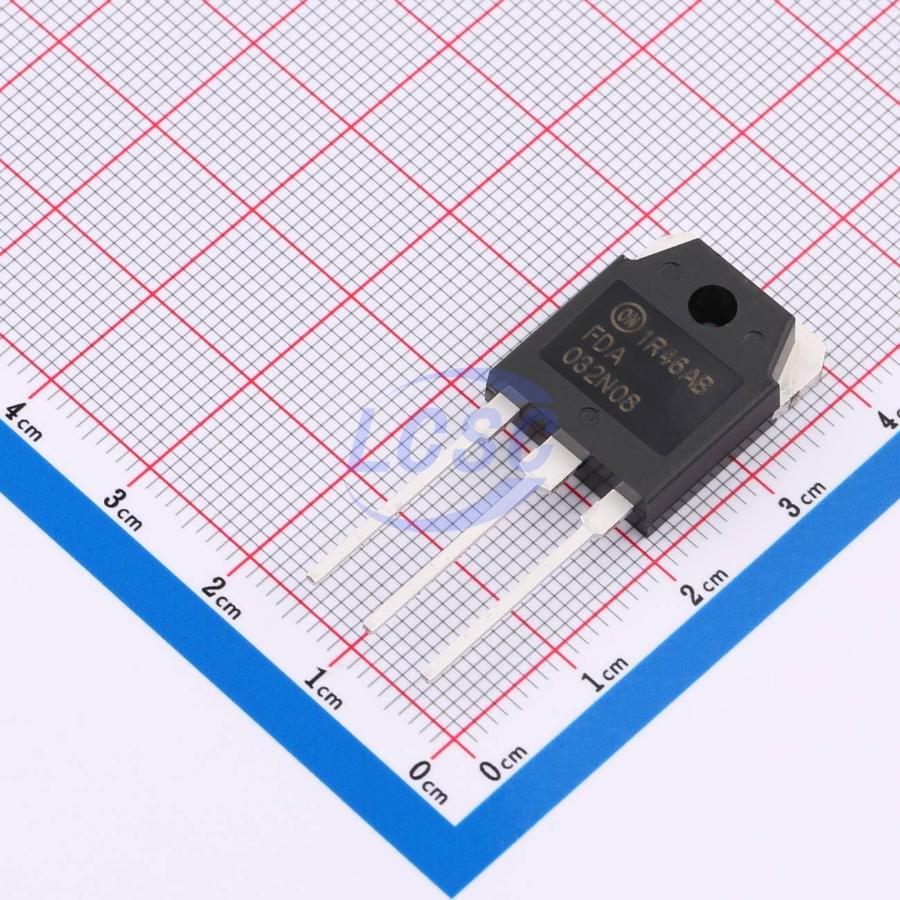

FDA032N08
N-Channel 75V 235A 375W Through Hole TO-3PN
TO-3PNROHS3 CompliantActive
MOSFET N-CH 75V 235A TO-3PN
- Manufacturer
- onsemi
- Manufacturer part #
- FDA032N08
- Store part #
- C556394
- Package / case
- TO-3PN
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
106 in stock
#C556394
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹405.92 | ₹405.92 |
| 10+ | ₹348.98 | ₹3,489.80 |
| 30+ | ₹311.61 | ₹9,348.30 |
| 100+ | ₹275.10 | ₹27,510.00 |
| 500+ | ₹258.59 | ₹1,29,295.00 |
| 1,000+ | ₹251.63 | ₹2,51,630.00 |
1 × ₹405.92
₹405.92
excl. GST
₹478.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
FDA032N08
₹405.92 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.36nF
- Ciss-Input Capacitance
- 15.16nF
- Pd - Power Dissipation
- 375W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Current - Continuous Drain(Id)
- 235A
- Reverse Transfer Capacitance (Crss)
- 800pF
- RDS(on)
- 3.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 220nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.88 g
Overview
This N-channel MOSFET is manufactured using the advanced PowerTrench® process, which is specifically tailored to minimize on-resistance while maintaining superior switching performance.
Applications
- Synchronous rectification for ATX/server/telecom PSU
- Battery protection circuits
- Motor drive and UPS
Key features
- RDS(on) = 2.5 mΩ (Typ.) @ VGS=10 V, ID=75 A
- Fast switching speed
- Low gate charge
- High-performance trench technology for ultra-low RDS(on)
- High power and high current handling capability
- RoHS compliant
