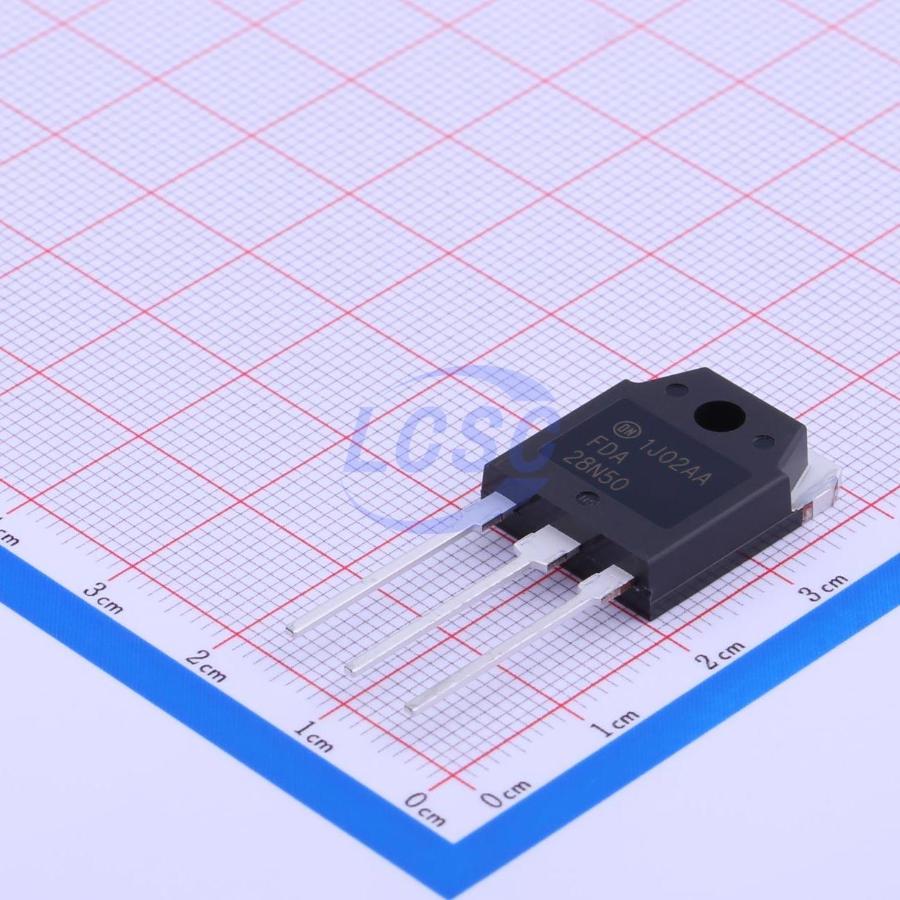

FDA28N50
N-Channel 500V 28A 310W Through Hole TO-3P-3
TO-3P-3ROHS3 CompliantActive
MOSFET N-CH 500V 28A TO-3P-3
- Manufacturer
- onsemi
- Manufacturer part #
- FDA28N50
- Store part #
- C105685
- Package / case
- TO-3P-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
727 in stock
#C105685
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹438.19 | ₹438.19 |
| 10+ | ₹366.85 | ₹3,668.50 |
| 30+ | ₹324.57 | ₹9,737.10 |
| 90+ | ₹281.65 | ₹25,348.50 |
| 450+ | ₹261.91 | ₹1,17,859.50 |
| 900+ | ₹253.02 | ₹2,27,718.00 |
1 × ₹438.19
₹438.19
excl. GST
₹517.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
FDA28N50
₹438.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Output Capacitance(Coss)
- 576pF
- Current - Continuous Drain(Id)
- 28A
- Ciss-Input Capacitance
- 3.866nF
- Pd - Power Dissipation
- 310W
- Reverse Transfer Capacitance (Crss)
- 42pF
- RDS(on)
- 122mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.85 g
Overview
UniFET™ MOSFET is a family of high-voltage MOSFETs based on planar stripe and DMOS technology. These MOSFETs are designed to deliver reduced on-resistance, improved switching performance, and higher avalanche energy ratings. This device family is suited for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power supplies, ATX power supplies, and electronic lamp ballasts.
Applications
- Plasma TV (PDP TV)
- Uninterruptible Power Supply (UPS)
- AC-DC Power Supply
Key features
- R DS(on) = 122 mΩ (typical) at V GS = 10 V, I D = 14 A
- Low gate charge (80 nC typical)
- Low C rss (42 pF typical)
- 100% avalanche tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 28N50#C19267785HXY MOSFET · TO-3P | HXY MOSFET | TO-3P | 72 | ₹197.92 · 72 in stock | View |
 | TSA28N50M#C439874Truesemi · TO-3P-3 | Truesemi | TO-3P-3 | 90 | ₹260.01 · 90 in stock | View |
 | IXTQ44N50P#C23403542Littelfuse/IXYS · TO-3P-3 | Littelfuse/IXYS | TO-3P-3 | 5 | ₹3,453.14 · 5 in stock | View |
 | FQA28N50#C2720onsemi · TO-3P-3 | onsemi | TO-3P-3 | 104 | ₹651.84 · 104 in stock | View |
 | OSH30N50#C51949617OSEN · TO-3PNB | OSEN | TO-3PNB | 61 | ₹128.46 · 61 in stock | View |
