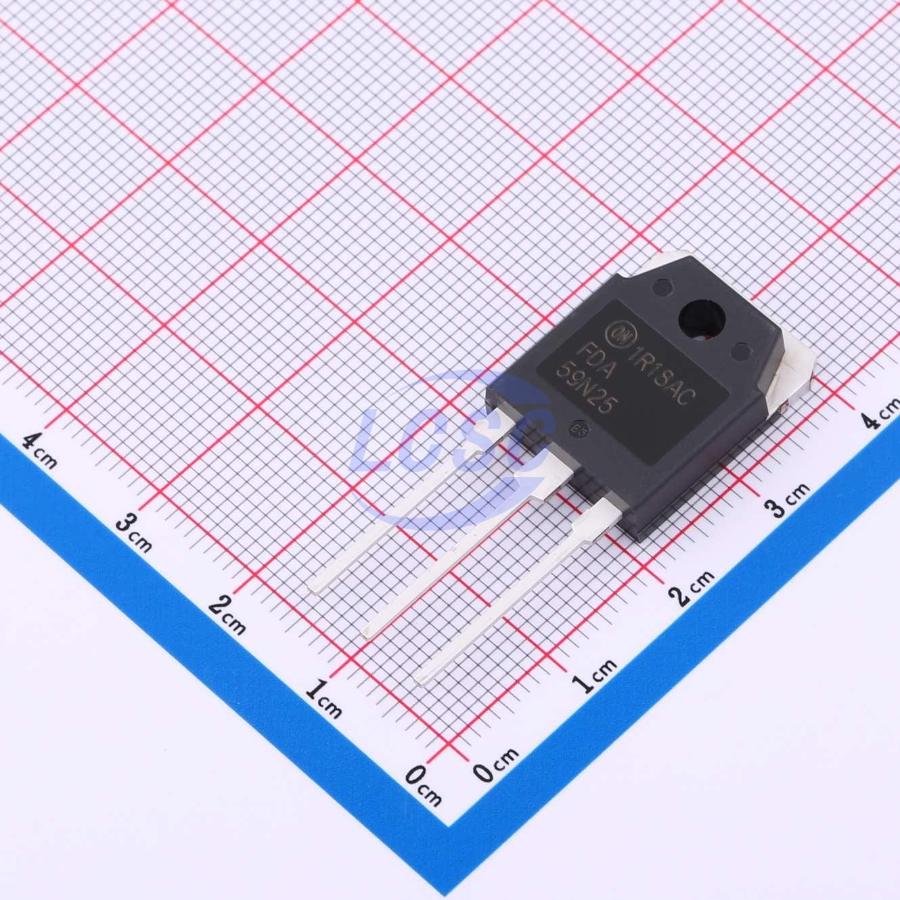

FDA59N25
N-Channel 250V 59A 392W Through Hole TO-3PN
TO-3PNROHS3 CompliantActive
MOSFET N-CH 250V 59A TO-3PN
- Manufacturer
- onsemi
- Manufacturer part #
- FDA59N25
- Store part #
- C898138
- Package / case
- TO-3PN
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C898138
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹542.05 | ₹542.05 |
| 10+ | ₹460.73 | ₹4,607.30 |
| 30+ | ₹412.39 | ₹12,371.70 |
| 90+ | ₹363.39 | ₹32,705.10 |
| 510+ | ₹340.84 | ₹1,73,828.40 |
| 990+ | ₹330.64 | ₹3,27,333.60 |
1 × ₹542.05
₹542.05
excl. GST
₹639.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
FDA59N25
₹542.05 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 630pF
- Ciss-Input Capacitance
- 4.02nF
- Pd - Power Dissipation
- 392W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 59A
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 49mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 82nC@200V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.247 g
Overview
UniFET™ MOSFET is Fairchild Semiconductor's high-voltage MOSFET family based on planar stripe and DMOS technology. These MOSFETs are designed to reduce on-resistance, deliver improved switching performance, and achieve higher avalanche energy ratings. This device family is suited for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power supplies, ATX power supplies, and electronic lamp ballasts.
Applications
- Plasma TV - Uninterruptible Power Supply - AC - DC Power Supply
Key features
- R DS(on) = 49 mΩ (max) at V GS = 10 V, I D = 29.5 A
- Low gate charge (typ. 63 nC)
- Low C rss (typ. 70 pF)
- 100% avalanche tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IXTQ64N25P#C26671555Littelfuse/IXYS · TO-3P | Littelfuse/IXYS | TO-3P | 5 | ₹2,099.85 · 5 in stock | View | |
 | FDA59N30-MNS#C54839590Minos · TO-3P | Minos | TO-3P | 538 | ₹254.06 · 538 in stock | View |
 | FDA59N30#C140696onsemi · TO-3PN | onsemi | TO-3PN | 2,498 | ₹317.22 · 2,498 in stock | View |
 | FDA59N30-OSEN#C55502987OSEN · TO-3PNB | OSEN | TO-3PNB | 22 | ₹214.66 · 22 in stock | View |
 | TSA65N25M#C20623851Truesemi · TO-3P | Truesemi | TO-3P | 20 | ₹238.81 · 20 in stock | View |
